Loop & Friends Undercounter Washbasin 616110
Verified by manufacturer 8 months ago
61611001
61611001

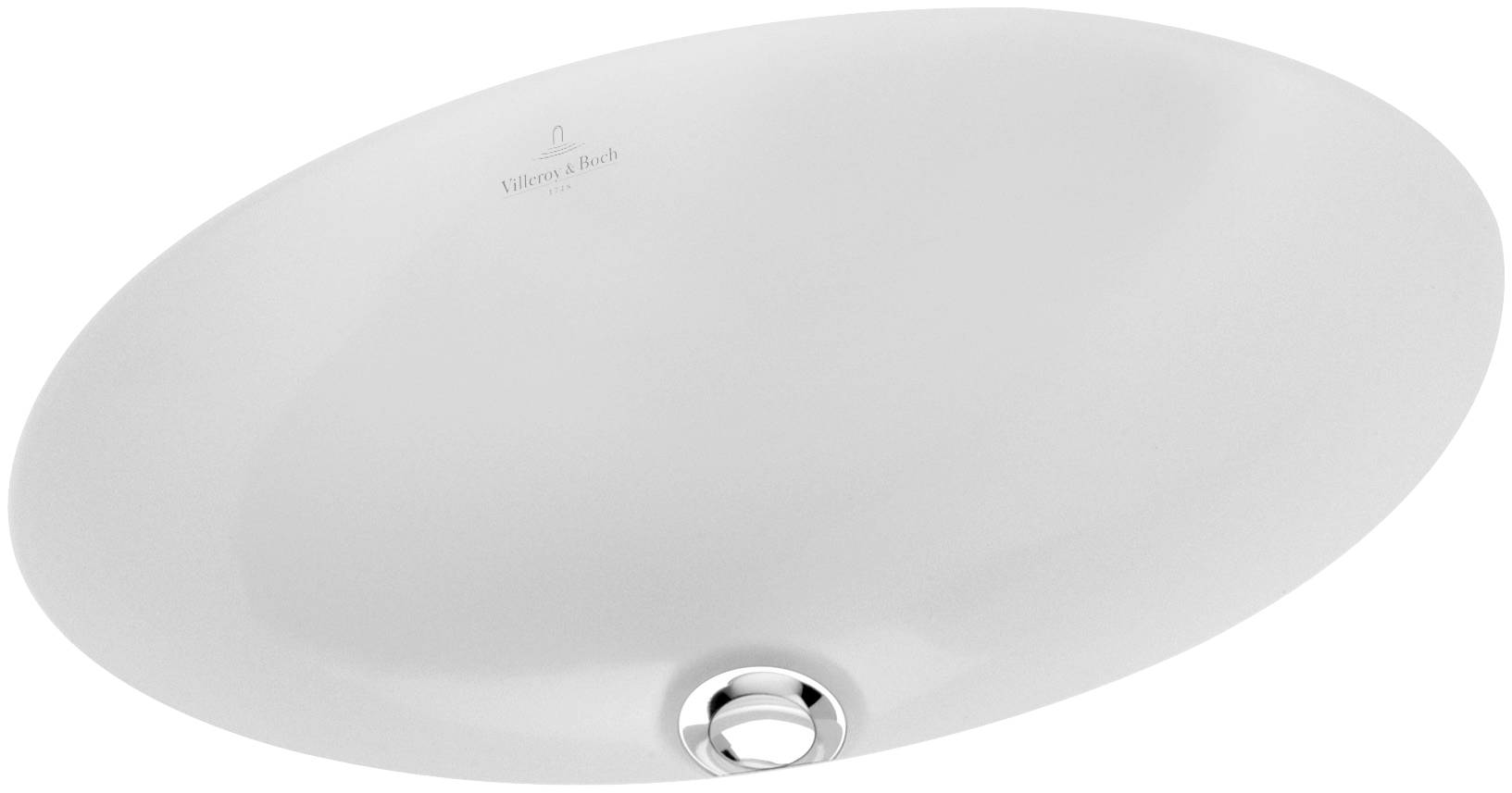

Oval undercounter washbasin.
Application
For mounting under countertops.
Description
Oval, undercounter washbasin.
Features and benefits:
- Outside surface glazed.
- Sanitary ceramics.
- The hole for the washbasin can only be cut out using the original washbasin because tolerances of several millimetres are possible, installation possible in natural stone and laminate countertops.
- Fastening set included.
- Complies with EN 31 and EN 14688.
General information
Color | White |
Finish | Gloss |
Material | Ceramic |
Shape | Oval |
Length | 430 mm |
Width | 285 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Countertop washbasins
Standard | To EN 31 and EN 14688. |
Form | Vanity top (under-mounted). |
Materials | |
Body | Ceramic. |
Finish and colour | White alpin, gloss. |
Size | 430 x 285 mm. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Rear overflow hole. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Fastening set. |
Weight | 9.5 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
 ARCHICAD | - | 1 |
 OBJ | - | 1 |
 IFC | - | 1 |
 Revit | - | 1 |
