Low Loss Header / Hydraulic Separator Insulation

Verified by manufacturer 6 months ago

FEJLLH020BSPINS

FlexEJ Variant:

A range of insulation jackets for FlexEJ Low Loss Headers.

Jump to:
+44 (0) 1384 881 188 Website

Application

Insulation Jacket for FlexEJ Low Loss Header.

Description

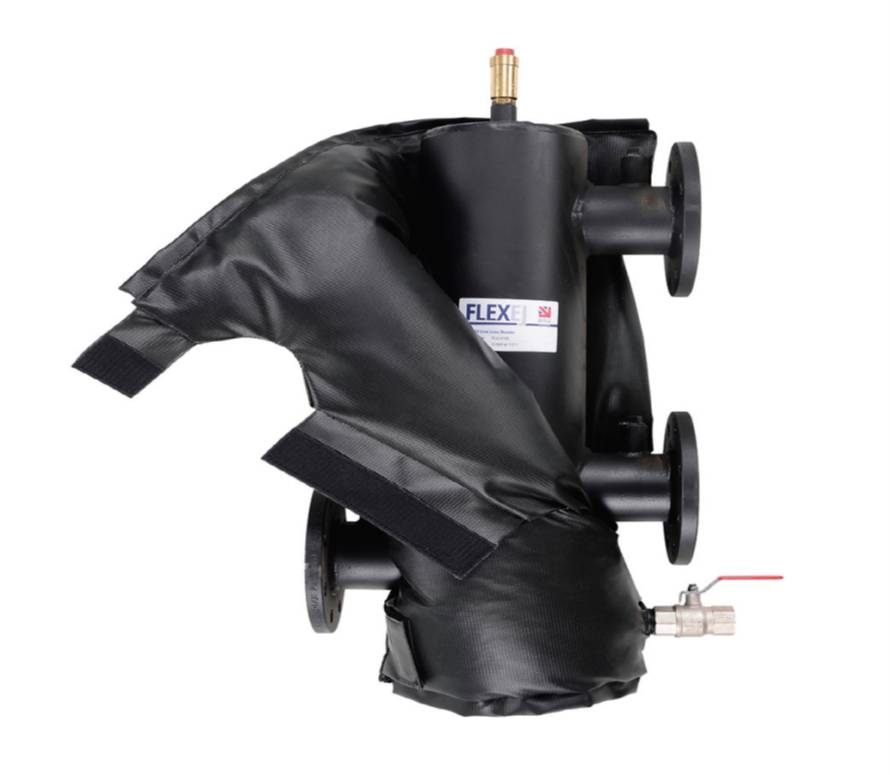

Flexible filled glass cloth insulation jacket with Velcro hook and loop flaps plus drawcord. May be fitted to the Low Loss Header when all piping is complete and is easily removed/reinstalled for maintenance.


Features and benefits:

  • Manufactured in the UK.
  • Rating: 110°C
  • Fire classification: A1 to EN 13501-1.

General information

Color

Black

Finish

Natural

Material

Silicone

Glass

Mineral fibre

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_80_77_76_94 Valve and flange insulationPrimary

CAWS

S90/570 Insulation to pipework

S90/570 Insulation to pipelines

T90/450 Insulation to pipelines to control heat loss

T90/450 Insulation to pipelines to control heat loss

Specification data - Valve and flange insulation

Material

Silicone coated 530 g/m² e-glass cloth inner and outer, black; Mineral rock fibre blanket filler 0.040 W/mK.

Form

Removable and reusable jackets.

Compatibility

For use with Low Loss Header FEJLLH020BSP.

Reaction to fire

To EN 13501-1, Class A1.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%
