LPS1175 High Security Bi-Folding Trackless Speed Gate
Verified by manufacturer 23 hours ago

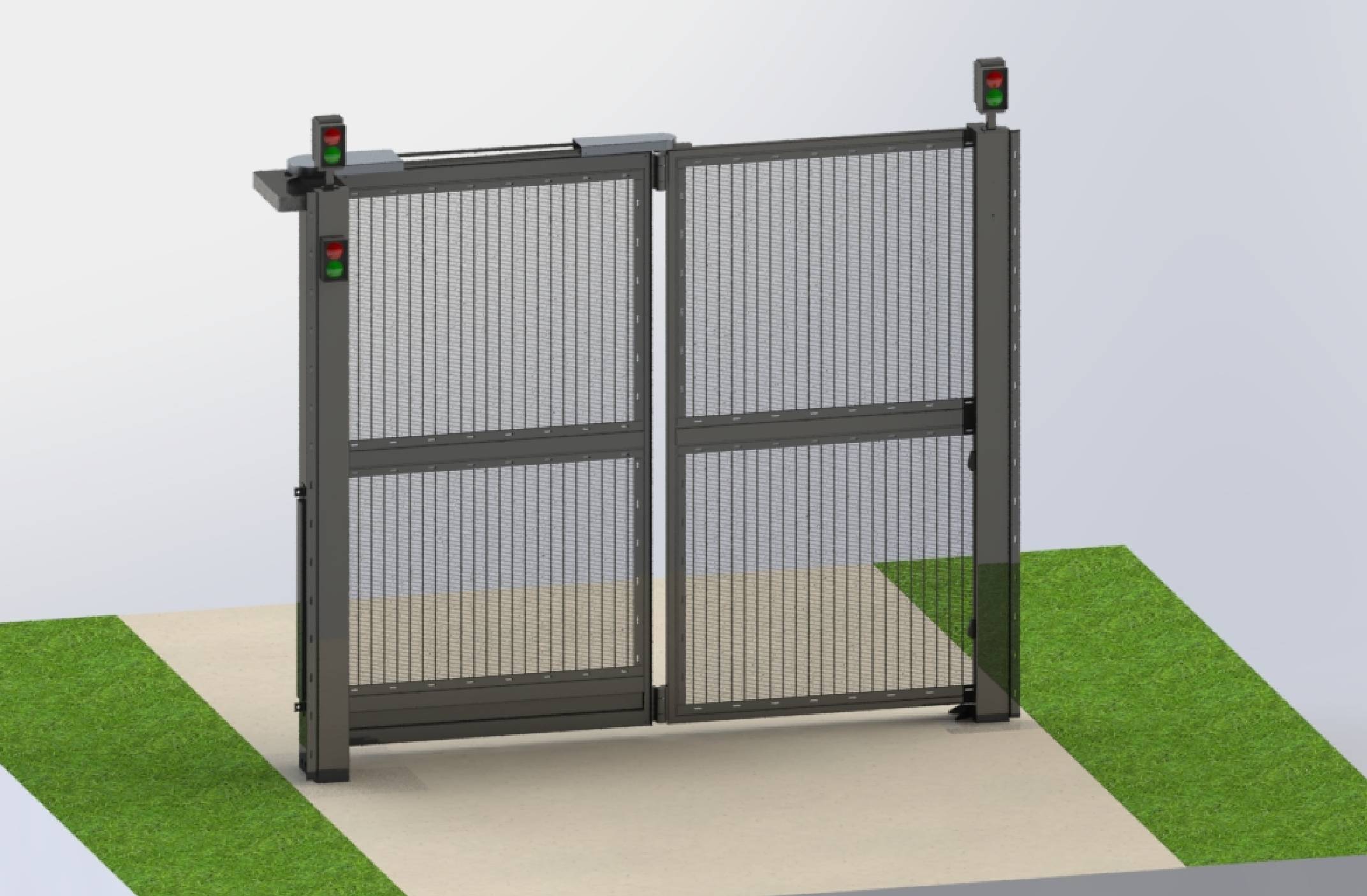

LPS 1175 Single Bi-Folding Gate A1 (SR1) – EAG50010S-A1
LPS 1175 Single Bi-Folding Gate A1 (SR1) – EAG50010S-A1
BRE Certificate
Certificate type
BRE Certificate
Certificate type
BRE Certificate
Certificate type
Security rated automatic trackless bi-folding speed gates.
Application
Designed for applications where a certified level of protection is specified and required, the gate is widely relied upon across the utilities and distribution sectors, as well as commercial, government, and high-security residential developments—including banks, embassies, warehouses, airports, schools, and universities—where automated, security-rated bi-folding speed gates are essential.
Description
Designed for high-security environments, our automatic trackless bi-folding speed gates deliver certified protection with rapid operation and sleek design. Available in single and double leaf options, this range meets Security Ratings A1 (SR1), B3 (SR2), and C5 (SR3), making it ideal for sectors requiring reliable access control—such as utilities, distribution, government, commercial, and high-security residential sites.
Key Features & Benefits:
- Certified to LPS 1175 and LPCB Red Book listed
- Operates in 8–12 seconds (through 90°)
- No additional locking device required
- Multiple infill options for custom security and design
Trusted in critical locations—from embassies and airports to banks and schools—these gates provide uncompromising protection without sacrificing efficiency.
General information
Color | Other Manufacturer guidanceProducts can be Powder Coated to any RAL or BS reference. |
Finish | Powder-coated Manufacturer guidanceStandard finish for mild steel fabrication: Pre-Treatment: Blast Cleaned SA2.5 - Primer: Interpon PZ790 (or equivalent) - Topcoat: Interpon D1036 Powder Coat (or equivalent). Minimum application: 80micron. Suitability: Environments up to and including C4 – ‘Industrial areas and coastal areas with moderate salinity’. Design Life Expectancy: 15 years - For decorative appearance is given up to C3 12 years. Over that, life expectancy relates to corrosion protection only. For C5 classification environments or enhanced protection, please contact us to discuss Metallisation (Hot Zinc) or Hot Dip Galvanizing alternatives. |
Material | Steel |
Shape | Rectangle Square |
Width | 5000 mm 10000 mm Bespoke Manufacturer guidanceMaximum width 5000mm applies to all single leaf variants. Maximum width 10000mm applies to all double leaf variants. Note: Maximum width may be subject to limitation for some infill options due to weight, combination with height, or wind loadings. Please contact manufacturer for further guidance. |
Height | 5000 mm Bespoke Manufacturer guidanceMinimum heights apply for A1, B3 & C5 rating. Maximum height 5000mm applies to all ratings. |
Warranty description | One year |
Uniclass | |
CAWS | Q50/15 Steel gate Q50/120 Steel gate Q50/20 Gate Q40/45 Proprietary gates Q40/40 Steel gates Q50/130 Gate Q40/570 Proprietary gates and posts Q40/560 Steel gates and posts |
SKU Code | EAG50010S-A1 |
Specification data - Carbon steel gates
Classification data | |
Dimensions | |
Span | 5000 mm. Guidance for specification option:
|
Height | 5000 mm. |
Posts | Rectangular hollow section (RHS) 200 x 400 mm. |
Gate leaves | Square hollow section (SHS) vertical bar. 358 mesh. Manufacturer guidanceInfill certified to LPS1175 A1 (SR1). |
Hardware | |
Hinges | Required. Guidance for specification option: Heavy duty included. Thrust and needle bearings with grease points. |
Securing | Hydraulically locked in closed position. |
Operating | Hydraulic ram. |
Finish as delivered | |
Worked finish | Blast cleaned, SA 2.5. |
Applied finish | Interpon D1036 Polyester powder-coated (PPC) (or equivalent). Guidance for specification option: Topcoat: Interpon D1036. Consult the manufacturer's literature and insert requirements. |
Primer | Interpon PZ790 (or equivalent). |
Certification | LPS 1175: Issue 8, A1 (SR1). |
Safety | Conforms to DHF TS 013. Induction loop amp. CAT3 safety edges. Dual height photocells. Laser scanner (optional). Light curtain (optional). Traffic lights (recommended). |
Operation | Automatic. Guidance for specification option: PLC controlled hydraulic system. Manual in the event of power failure. |
Accessories | Not required. Traffic lights. Laser scanner. Light curtain. |
Electrical supply | 230 V. 16 A. 50 Hz. |
Foundation layout | 1 m³, surface/ sub-fix. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Steel |
Expected Life | 15 year |
Product certifications
BRE Certificate
LPS1175 - C1572k-02 Eagle Automation Systems Ltd (EAG50010-A1)
BRE Certificate
LPS1175 - C1572m-01 Eagle Automation Systems Ltd (EAG50010-B3)
BRE Certificate
LPS1175 - C1572n-01 Eagle Automation Systems Ltd (EAG50010-C5)
