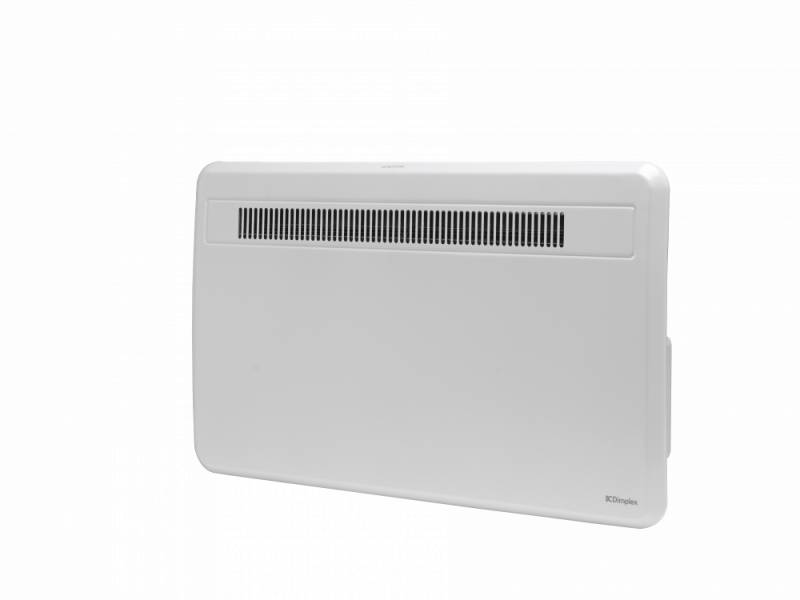

LST050E
Modern and efficient electric panel heater.
Suitable for domestic applications.
LSTE features intuitive user controls, allowing the programming of multiple 7-day timer profiles via a backlit LCD display and capacitive buttons. This low surface temperature panel heater meets the requirements of a maximum contact temperature of 43 degrees.
Features and benefits:
Color | White |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | 690 mm 860 mm |
Height | 430 mm |
Warranty description | Two year |
Uniclass | |
CAWS | V90/590 Equipment V90/590 Equipment |
Third party certification | UKCA, CE and BEAB. |
Room heaters type | Panel. |
Output | 0.50 kW. |
Finish | Epoxy polyester powder-coated, Traffic White (RAL 9016). |
Accessories | None.Dimplex Hub and Radio Frequency Module (RFM).Guidance for specification option: Required for this product to connect to the Dimplex Control system and be controlled via the Dimplex Control smartphone app. |
Controls | Digitally controlled, electronic thermostat. Guidance for specification option: Accurate to (±0.2°C). Timer modes: 7 Day Programmable User Timer, Out All Day, Home All Day. Continuous heat modes: Eco, Manual, Frost Protect. Additional Modes: Away, Boost, Setback. |
Heating element | Compact, finned, mineral filled and sheathed. |
Safety features | Thermal cutout (auto reset type) and overheat detection. |
Ingress protection (IP) rating | IP24. |
Battery back-up | CR2032 Lithium manganese dioxide 3V coin cell battery. Guidance for specification option: To backup real time clock. Battery life >5 years. |
Supply | 1.3 m fitted, 3 core for fused spur installation, 1/N/PE ~230–240 V, 50 Hz Class I, with earth wire. |
Width | 690 mm. |
Country of product manufacture | United Kingdom |
