LSTE Panel Heater with Wi-Fi

Name: LSTE Panel Heater with Wi-Fi
Brand: Consort Claudgen
SKU: c7y9U2qumrGZ1QXor4cXzz

Verified by manufacturer 4 months ago

LST500EWIFI

Consort Claudgen

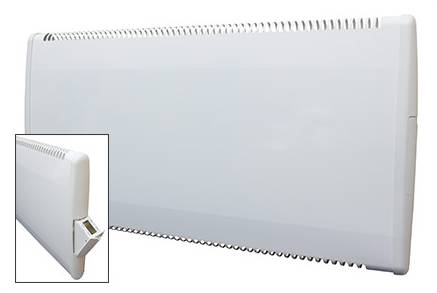

Low surface temperature panel heater with WiFi.

Jump to:

+44 (0)1646 692172 Website

Application

Room heater.

Description

The heaters connect directly to WiFi and can be controlled either from the integral electronic 7-day timer or via the free Consort Connect app which provides complete control remotely.

It provides the same control features as the digital control panel on the heater and is simple to set up. With the app, users can configure settings of all connected heaters and view energy usage in the last day, week, month and year.

Features and benefits:

0.5 kW or 0.8 kW rating.
Can be controlled from digital control panel on the heater or via Consort Connect app on smartphone or tablet.
Maximum surface temperature of 43°C to comply with NHS Estates Health Guidelines Notes.
7-day timer with 24 heating periods per day.
Ability to view energy consumption statistics.
Open window tracking and response capability.
Copy day function.
Create scenes and time/location based automations.
Four operating modes: Programme, Boost, Setback and Manual.
Boost option for up to four hours in 15-minutes steps.
Comfort heat setting between 15°C to 35°C.
Setback temperatures can be used for frost protection or maintaining a minimum room temperature between 4°C to 15°C.
Maintains temperature within 0.7 degrees.
Easy operation.
Lock function with 4-digit pin code to prevent accidental or purposeful changes to settings.
Slimline and clean design.
Very quiet operation.
Concealed digital controls on heater.
Digital control panel has easy-to-read display and four large control buttons with tactile feedback.
Splash proof to IP24 for use in bathrooms and other damp areas.
Hinged wall mounting system for easy installation and decorating.
Optional control panel locking kit (PLK1).
Automatic safety cut-out.
Fitted with 1.1 m of supply cable.
Finished in white.

General information

Color	White
Finish	Powder-coated
Material	Metal
Shape	Rectangle
Length	93 mm Manufacturer guidance Depth
Width	832 mm 1195 mm
Height	430 mm
Warranty description	One year

Uniclass	Pr_70_60_36_74 Room heatersPrimary
CAWS	V90/590 Equipment V90/590 Equipment

Specification data - Room heaters

Room heaters type	Panel.
Output	0.5 kW.
Finish	White.
Accessories	Not required. Control panel locking kit (PLK1).

Control	Digital control panel. Guidance for specification option: On the heater. Consort Connect app. Guidance for specification option: On smartphone or tablet. Manufacturer guidance Connected directly to WiFi.
OperatingMode	Programme, boost, setback and manual. Manufacturer guidance Four operating modes.
Temperature	15°C to 35°C. Guidance for specification option: Setback temperatures can be used for frost protection or maintaining a minimum room temperature between 4°C to 15°C. Maintains temperature within 0.7 degrees. Manufacturer guidance Comfort heat setting.
Lock	Four digit pin code. Guidance for specification option: Lock function with 4-digit pin code to prevent accidental or purposeful changes to settings.
Ingress protection	IP24. Guidance for specification option: Splash proof to IP24 for use in bathrooms and other damp areas.
Power supply cable	1.1 m.
Height	430 mm.
Depth	93 mm.
Width	832 mm.
Weight	6.3 kg.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Metal
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0 kg CO₂ eq/unit Self declared
Recyclability	This product can be recycled.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	90 % Manufacturer guidance Percentage value will vary depending on the product manufactured and the recycle materials available for use to manufacture the product.
