LUNOS Silvento ec - Exhaust Air System - Mechanical Extract Ventilation System
Verified by manufacturer 1 month ago

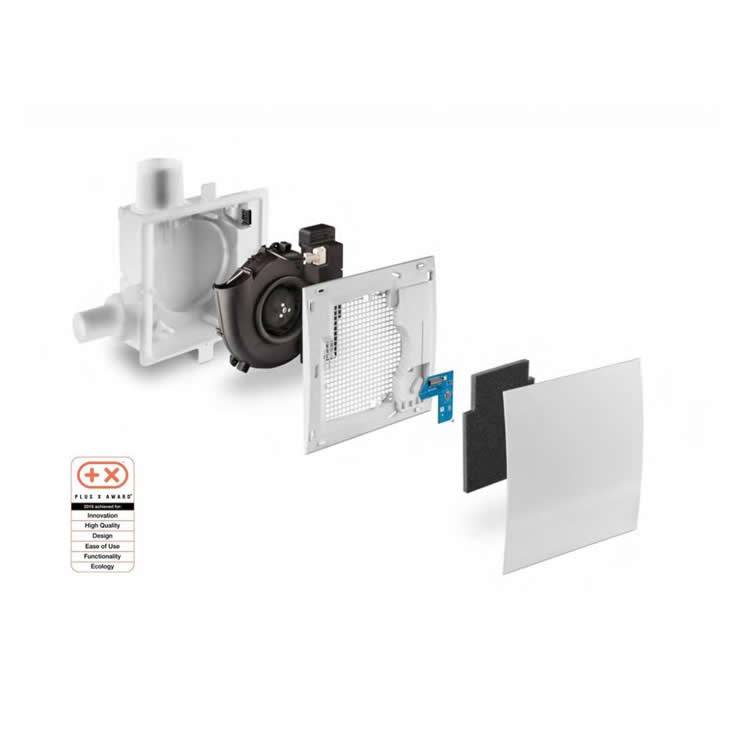

LUNOS Silvento 5/EC-ZI Basic Board ‘Flush Mounted’
LUNOS Silvento 5/EC-ZI Basic Board ‘Flush Mounted’
An exhaust air ventilation system equipped with an EC motor, it is ideal for extracting air from functional rooms such as kitchens, bathrooms, and utility rooms.
Application
The LUNOS Silvento ec is a decentralised mechanical extract ventilation system designed for residential applications.
Suitable for:
- Functional rooms such as bathrooms, kitchens or utility rooms.
- New builds and retrofits.
Description
The LUNOS Silvento ec is a quiet, efficient, and stylish extract air unit that counters increasing energy costs and rising pollution of the environment. The fans are characterized by extremely low power consumption, as power input has been considerably reduced due to EC engineering. It operates very efficiently and can be set with lower volume flows – either with intermittent or continuous settings, or both.
The functions of the Silvento ec are determined by various control boards – basic and comfort. The basic board has seven ventilation levels between 15 and 60 m³/h and can be combined with time delay, interval switching, and switch-on delay. The comfort+ board, in addition to the capabilities of the basic board, an integrated VOC sensor or humidity and temperature sensor system can be activated.
Features and benefits:
- Low sound level.
- High efficiency.
- Innovative control boards – Basic or Comfort module.
- All modules can be combined with plug-on extension modules – motion detector or operational radio modules.
General information
Color | White |
Material | Plastic |
Shape | Square |
Width | 260 mm Guidance for specification option: Surface mounted and screen. 235 mm Guidance for specification option: In-wall housing. |
Height | 260 mm Guidance for specification option: Surface mounted and screen. 235 mm Guidance for specification option: In-wall housing. |
Warranty description | 30 year |
Uniclass | |
CAWS | U90/413 Ventilation fan units U90/413 Ventilation fan units |
Product range |
Specification data - Domestic fan units
Duty | 4 L/s.6 L/s.8 L/s.11 L/s.13 L/s.14 L/s.17 L/s. |
Mounting | Ceiling.Wall. |
Accessories | Sound insulation insert and filter. |
Sensors | None. Motion sensor. Guidance for specification option: Optional. |
SoundPressure | At 1 m distance: 10/14/21/28/30/32/36 dB(A); At 3 m distance: 0/5/12/18/20/23/26 dB(A). |
Ingress protection (IP) rating | IPX5. |
Voltage | 200–240 V a.c. (50/60 Hz). |
Integral accessories | System includes: Silvento Basic board, Silvento Housing (Flush Mounted), Switch. |
Dimensions | Surface-mounted: 260 x 260 x 108 mm; Screen: 260 x 260 x 23 mm; In-wall housing: 235 x 235 x 92 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Plastic |
Literature
LUNOS Silvento ec Installation Guide

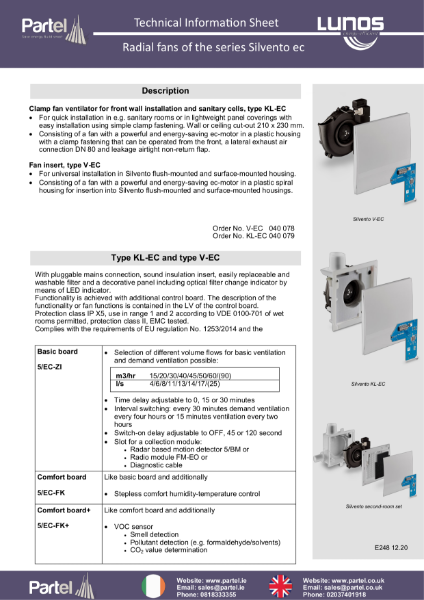

LUNOS Silvento ec Technical Data Sheet
