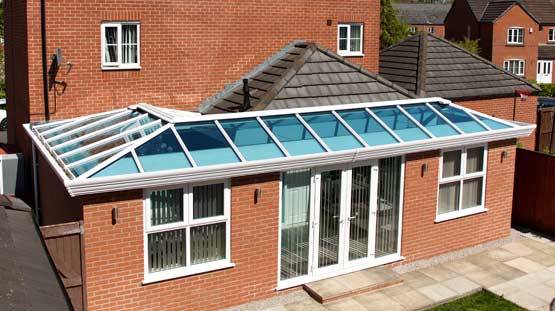

Lusso Orangery Roof

Verified by manufacturer 2 months ago

Eurocell plc

Orangery-style roof system.

Jump to:
+44 (0)1773 842100 Website

Application

Suitable for most styles of conservatory roofs.

Description

Orangery-style roof system for conservatories.


Features and benefits:

  • Lightweight, prefabricated system that is quick and easy to install.
  • Low material and labour costs.
  • Pitches can range from 5–35º.
  • Good draft-proofing characteristics.
  • Allows more natural light with a clear glass roof.
  • Colour-matched trims and accessories are available.
  • Choice of LED lighting kits are available, which are housed in the box-section pelmet.
  • Includes a highline gutter with decorative corner castings.
  • Creates a genuine extra room in the house.
  • Interior trim and cladding clips onto the aluminium frame, giving a clean look with minimal finishing requirements.
  • Can create a homely internal living environment.
  • Thermal break in the ring beam protects against heat loss – extra insulation is not required.
  • Internal pelmet can be retrofitted to an existing conservatory.
  • Box-section pelmet means that minimal plastering is required.
  • Ten-year guarantee.


General information

Color

White

Material

Aluminium

PVC-U

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_20_65_34_34 Glazed enclosuresPrimary

CAWS

B12/120 Conservatory

B12/5 Conservatory

Product range

Conservatories

Specification data - Glazed enclosures

Style

Three Facet Victorian.

Edwardian.

Gable ended.

P-shaped Edwardian.

P-shaped Victorian.

Roof

-

Frame

-

Material

Aluminium.

Thermal break

Guidance for specification option:

Thermal break in the ring beam protects against heat loss – extra insulation is not required.

Colour

White.

Walls

-

Frame

-

Material

PVC-U.

Hardware

Highline gutter.

Cladding clips.

LED lighting kits.

Accessories

None.

135° corner casting.

CRS 8571A, 135° corner cleat.

CRS 8673S, 200 mm utility board.

UB 200, 225 mm capping board.

CB 225, 90° corner casting.

CRS 8570A, 90° corner cleat.

CRS 8672S, End plate.

CRS 8574A, Eurogroove cover.

EWS 112, Faux orangery bracket.

CRS 8575A, Faux orangery internal trim.

CRS 8576A, Gable support sill.

CRS 8548A, HD LED downlight kit.

Guidance for specification option:

Colour choices as with pelmet lighting. Highline gutter adaptor.

CRS 8577A, Highline gutter base.

CRS 8578A, Highline gutter.

CRS 8579A, Inline joint casting.

CRS 8572A, Internal 90° corner casting.

CRS 8573A, Internal corner moulding.

CRS 8256, Internal pelmet bracket.

CRS 8545A, Internal pelmet rafter bracket.

CRS 8546A, Ring beam internal trim.

CRS 8548, Ring orangery trim.

CRS 8075, Straight cleat.

CRS 8671S, Thermally broken ring beam.

CRS 8547A, Tie wire.

CRS 8679S.

Pelmet lighting

Not required.

Aluminium.

Black.

Chrome.

Stainless steel.

Guidance for specification option:

Standard.

Pelmet

Lusso.

Lusso light.

Guidance for specification option:

Slimline pelmet for increased internal light.

PitchAngle

5–35º.

Manufacturer guidance

Pitches can range from 5–35º.

Sustainability data

Material

Aluminium

PVC-U
