LWF 60 Fire Resistant Loft Ladder

Verified by manufacturer 4 months ago

Fakro GB Ltd

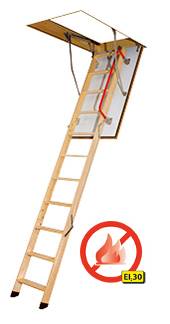

Folding pine loft ladder with fire resistant loft hatch.

Jump to:
+44 (0)1283 554755 Website

Application

Suitable for residential applications, used as stairway access to attics and loft spaces.

Description

Three section, folding pine loft ladder with fire resistant loft hatch and metal handrail.


Features and benefits:

  • The hatch is manufactured from fireproof materials and has an intumescent perimeter seal.
  • Treads are fitted using dovetail joints for improved durability, and are grooved to improve grip.
  • The handrail, which is painted red, is mounted on the ladder's angle brackets.
  • Hatch thickness 42 mm.

General information

Color

Brown

White

Silver

Material

Wood

Timber

Pine

Shape

Rectangle

Size

580 x 1186 mm

Guidance for specification option:

Ceiling opening: 600 x 1200 mm.

680 x 1186 mm

Guidance for specification option:

Ceiling opening: 700 x 1200 mm.

680 x 1284 mm

Guidance for specification option:

Ceiling opening: 700 x 1300 mm.

680 x 1386 mm

Guidance for specification option:

Ceiling opening: 700 x 1400 mm.

840 x 1286 mm

Guidance for specification option:

Ceiling opening: 860 x 1300 mm.

Warranty description

Three year

Uniclass

Pr_25_30_85_36 Hardwood loft laddersPrimary

CAWS

L30/41 Loft ladders

L30/421 Loft ladders

Specification data - Hardwood loft ladders

Format

Folding.

Timber species

Pine.

Strings

-

Number of sections

Three.

Handrails

Guidance for specification option:

Red painted handrail mounted on angle brackets.

Treads

Guidance for specification option:

  • Fitted using dovetail joints.
  • Grooved for improved grip.

Loft trap door

-

Minimum opening size (l x w)

580 x 1186 mm.

Guidance for specification option:

Ceiling opening: 600 x 1200 mm.

680 x 1186 mm.

Guidance for specification option:

Ceiling opening: 700 x 1200 mm.

680 x 1284 mm.

Guidance for specification option:

Ceiling opening: 700 x 1300 mm.

680 x 1386 mm.

Guidance for specification option:

Ceiling opening: 700 x 1400 mm.

840 x 1286 mm.

Guidance for specification option:

Ceiling opening: 860 x 1300 mm.

Manufacturer guidance

/ Ladder box dimensions:

Accessories

Not required.

Ceiling surround, LXL.

Loft balustrade, LXB.

Ladder height

3.05 m.

Manufacturer guidance

Meters (maximum):

U-value

0.9 W/m²K.

Manufacturer guidance

(of loft hatch):

Fire resistance

30 minutes.

Manufacturer guidance

(of loft hatch):

Load (maximum)

160 kg.

Manufacturer guidance

/ Maximum safe loading of loft hatch:
