LX Gas Fired Unit Heaters

Verified by manufacturer 4 months ago

LX15

Powrmatic Ltd Variant:

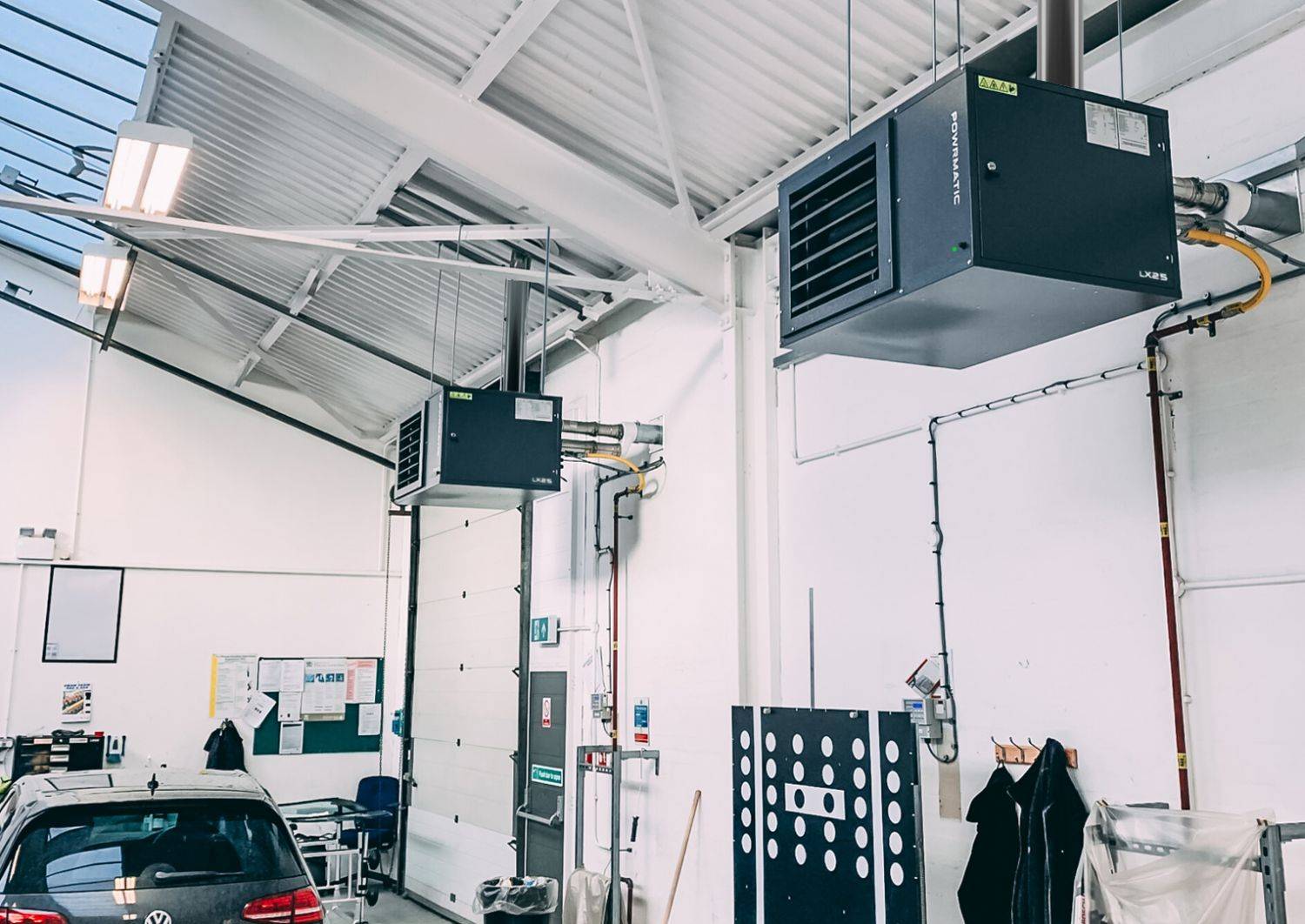

A suspended warm air unit heater for industrial and commercial properties.

Jump to:
+44 (0)1460 53535 Website

Application

For industrial and commercial properties including warehouses, factories, showrooms and retail outlets.

Description

The ErP 2021 compliant suspended LX range of unit heaters have the same construction, performance and aesthetics as the LNVx range, finished with epoxy powder RAL 7015 stove baked paint.


LX is ergonomically designed with low NOx levels, providing efficient and cost-effective heating solutions for industrial and commercial properties.


Features and benefits:

  • Wide range of sizes, twelve capacities from 15 to 140 kW.
  • Standard axial fan heater throws up to 45 m.
  • Compact space saving dimensions, designed to be room sealed or power flued with vertical or horizontal options.
  • Most comprehensive model range including Axial Fan, Centrifugal Fan (with or without fan plenum), Axial fan downflow, Bi-Directional and Duct Package.
  • Low NOx and high energy output with highest efficiency without condensing, simple and efficient high-low burner control.
  • Designed for strength, rigidity and long service life with minimal noise levels.
  • 409 and 316 stainless steel heat exchanger upgrades available for harsh environments.

General information

Color

Grey

Finish

Powder-coated

Material

Steel

Stainless steel

Shape

Rectangle

Length

730 mm

819 mm

Width

997 mm

1325 mm

1950 mm

Height

450 mm

500 mm

570 mm

670 mm

532 mm

Show more

Warranty description

Two year

Uniclass

Pr_70_60_36_33 Gas-fired unit heatersPrimary
Pr_70_60_36_93 Unit heaters

CAWS

T90/110 Heating system

T90/110 Heating system

Specification data - Gas-fired unit heaters

Output

Natural gas: 15 kW; LPG: 15.3 kW.

Air volume

0.39 m³/s.

Arrangement

Horizontal.

Fuel

LPG.

Natural gas.

Controls

MC200 Optimised Start Control.

MC300 MultiMaster Control.

Guidance for specification option:

Enables the control of up to five multiple cabinet and unit air heaters.

Flues and chimneys

Room sealed.

Flue only.

Accessories

None.

Vertical flue kit.

Horizontal flue kit.

Mixing box.

Guidance for specification option:

LX C models only.

Fan plenum box.

Guidance for specification option:

LX C models only.

30° Downflow head c/w 4 way louvre.

Guidance for specification option:

LX F models only.

90° Downflow head c/w 4 way louvre.

Guidance for specification option:

LX F models only.

Filter box.

Guidance for specification option:

LX C models only.

Vertical louvres.

Guidance for specification option:

For use on all models.

Swivel wall bracket.

Guidance for specification option:

LX F models only.

Cantilever wall bracket.

Guidance for specification option:

LX F models only.

Model

LX F - Axial Fan Crossflow Units.

LX C - Centrifugal Close Coupled Fan Units.

LX V - Axial Fan Downflow Units.

LX D - Ducted No Fan Unit.

LX Duo - Axial Fan Bi-Directional Units.

Show more

Heater

LX heat exchanger, aluminised steel.

Guidance for specification option:

Standard.

LX heat exchanger, 409 stainless steel.

LX heat exchanger, 316 stainless steel.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

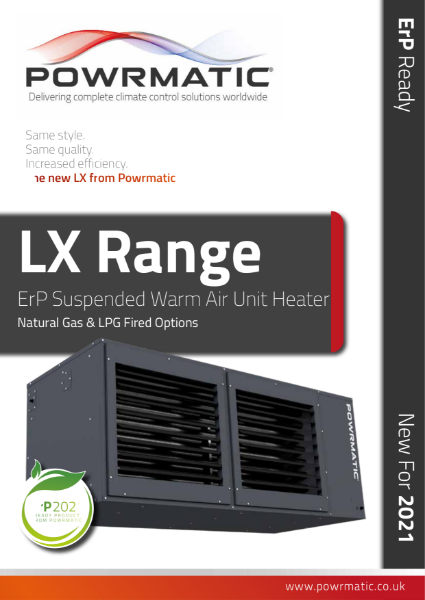

LX Brochure

LX Brochure

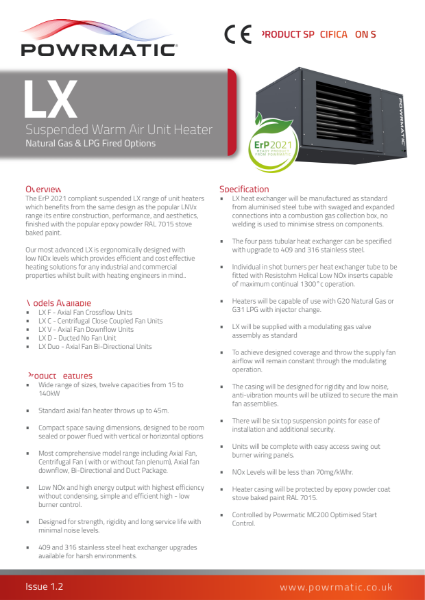

LX Product Specification Sheet

LX Product Specification Sheet
