M2M2 Single security steel doorset with Side and/or Overpanels
Verified by manufacturer 5 months ago
EN 13501-1 (Efectis)
Certificate type
M2M2 Steel security doorset, with side panel, 110 mm frame.
Application
M2M2 doors are tailored to individual requirements. They are particularly popular among utility clients, and companies operating within remote or substation sites.
Description
Certified by the LPCB to LPS 1175: Issue 7 Security Rating 2. To achieve SR2 accreditation, doors are attacked using tools with a high mechanical advantage, such as a hand drill, junior hacksaw and a claw hammer.
Features and benefits:
- Certified by the LPCB to LPS 1175: Issue 7 Security Rating 2, M2M2 doorsets provide defence against opportunist attacks.
- Optional CERTIFIRE accreditation up to FD240.
- Optional ISO 10140 acoustic rating from Rw 40 to Rw 42.
- LPCB certified to LPS 1175 SR2.
- Secured by Design ‘Police Preferred Specification’.
- Polyester powder coated in a selection of colours and finishes.
- High quality wood grain effect available.
- Wide range of certified locking options available.
- Constructed from Zintec steel, stainless steel, or Magnelis.
- Side and/or over panels available.
- Range of certified vision panels and louvres available.
- Available as a single, leaf and a half, or double doorset.
- Designed for premises requiring high security.
General information
Finish | Gloss Matt Powder-coated Semi-gloss Textured |
Material | Steel Guidance for specification option: Zintec, stainless steel, or Magnelis. |
Shape | Rectangle |
Width | 2600 mm |
Height | 2930 mm |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Carbon steel doorsets
Configuration | Single leaf, single action with top panel.Double leaf, single action with top panel. |
Doorset size | Bespoke.Guidance for specification option: Insert requirement:
|
Performance | |
Fire resistance | |
Integrity | Not required.240 minutes.Guidance for specification option: M2M2 doors are available with a fire rating up to FD240, providing integrity fire resistance for up to 240 minutes, certified by Exova under the CERTIFIRE scheme (certificate number CF5107). |
Acoustic performance | Not required.To BS EN ISO 10140-2, sound reduction index Rw 40—42.Guidance for specification option: Tested by Lorient to BS EN ISO 101402: 2010, certain M2M2 doors are available with acoustic ratings from Rw 40 to Rw 42, providing 40 dB to 42 dB of noise reduction, depending on specification. |
Intruder resistance | |
Minimum requirement | To LPS 1175, SR 2.Guidance for specification option: M2M2 doors are LPCB certified to LPS 1175: Issue 7 Security Rating 2 (certificate number 312f). |
Conformity | Certification by accredited third-party certification body. |
Frame | |
Material | Zintec steel.Stainless steel.Magnelis.Manufacturer guidance1.5 mm thick. |
Threshold | Steel.Aluminium. |
Finish | |
Coating | Polyester powder coated.Guidance for specification option: Standard finish. Wood effect.Guidance for specification option: High quality wood-grain at an additional cost. |
Colour | Guidance for specification option: Various colours available. Consult manufacturer and insert requirement. |
Installation fasteners | Nine hooked dog bolts per leaf. |
Frame accessories | Six hinges per leaf. |
Door leaf | |
Thickness | 66 mm. |
Material | Zintec steel.Stainless steel.Magnelis.Manufacturer guidance1.5 mm thick. |
Beading | |
Type | 10 mm astragal. |
Material | Steel. |
Finish | |
Coating | Polyester powder coated.Guidance for specification option: Standard finish. Wood effect.Guidance for specification option: High quality wood-grain at an additional cost. |
External colour | Guidance for specification option: Various colours available. Consult manufacturer and insert requirement. |
Internal colour | Guidance for specification option: Various colours available. Consult manufacturer and insert requirement. |
Hardware | Not required.MICO 942 2/3 point locking systems.Guidance for specification option: Not fire rated. MICO USCH cylinder guard.Guidance for specification option: External access via MICO USCH cylinder guard with Scandinavian oval cylinders, as standard. Padlockable hasp and staple access device. |
Accessories | Not required.Stays and closers.Guidance for specification option: M100 and TS83, as standard. Removable top transom. |
Profile | 110 mm. Manufacturer guidanceFrame profile. |
FireRating | Not required. FD240. Guidance for specification option: Optional. M2M2 doors are available with a fire rating up to FD240, providing integrity fire resistance for up to 240 minutes, certified by Exova under the CERTIFIRE scheme (certificate number CF5107). |
Panic hardware | Not required. MICO Elite panic escape. Guidance for specification option: Manual, automatic, or electromechanical deadlocking single point locking. |
Vision panel | Not required. 203 x 356 mm. 203 x 762 mm. 457 x 457 mm. Manufacturer guidanceVision panels reduce the doorset’s fire rating to FD60. |

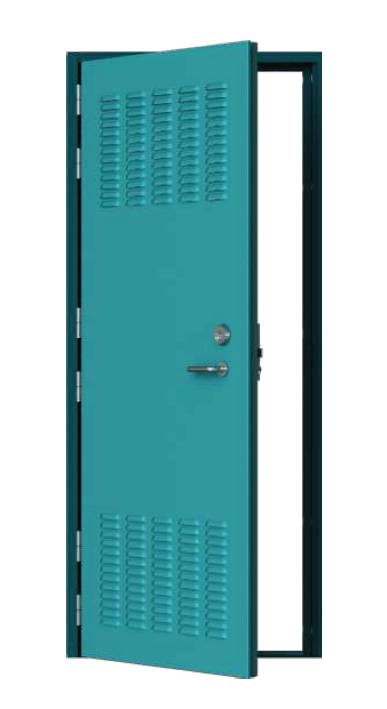

Louvre size | Not required. 457 x 457 mm. Manufacturer guidanceDoors with louvres are not fire rated. |
Louvre panels | Not required. Bladed. Manufacturer guidanceDoors with louvres are not fire rated. |
ConstructionMethod | Butt jointed frame. Guidance for specification option: Butt jointed frame sections, as standard. Fully welded frame. Guidance for specification option: Fully welded frame available at an extra cost. |
Opening | Inward. Outward. |
Reinforcement | 3 mm chassis system. Guidance for specification option: No adjusters. |
Weight | 60 kg/m². Manufacturer guidanceCirca . |
Lifting points | M10 lifting point per leaf. |
Hinges | 100 mm lift off hinges. 13 butt hinges. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
EN 13501-1 (Efectis)
M2M 2/3/4 CE Efectics certificate of constancy of performance
EN 13501-1 (Efectis)
M2M 2/3/4 UKCA Efectics certificate of constancy of performance
Literature
M2M2 Steel Security Door Product Specification
M2M2 steel security and fire product brochure
Case studies
Qatar World Cup Stadiums
