M2M3 double leaf steel security / external fire door

Verified by manufacturer 5 months ago

Bradbury Group Third party certifications:
  • EN 13501-1 (Efectis)

    EN 13501-1 (Efectis)

    Certificate type

  • Certifire Certificate

    Certifire Certificate

    Certificate type

Steel security doorset, inward or outward opening.

Jump to:
BOS
+44 1724 275720 Website

Application

M2M3 doors are tailored to individual requirements. They are particularly popular among utility clients, and companies operating within remote or substation sites.

Description

Steel security doorset, inward or outward opening. Certified by the LPCB to LPS 1175: Issue 7 Security Rating 3. To achieve SR3 accreditation, doors are attacked using tools with a high mechanical advantage, such as a hand drill, junior hacksaw and a claw hammer.


Features and benefits:

  • Certified by the LPCB to LPS 1175: Issue 7 Security Rating 3, M2M3 door sets provide defense against opportunist attacks.
  • 120 min rated with fire to any side with EM lock.
  • 30 min rated with fire to any side when EM lock fitted.
  • LPCB certified to LPS 1175 SR3.
  • Secured by Design ‘Police Preferred Specification’.
  • Polyester powder coated in a selection of colours and finishes.
  • High quality wood grain effect available.
  • Wide range of certified locking options available.
  • Constructed from Zintec steel, stainless steel, or Magnelis.
  • Available as leaf and a half, or double doorset.
  • Designed for premises requiring high security.
  • 1.5 mm or 2.0 mm frame thickness.
  • Aluminium or steel threshold.
  • Rockwool infill.
  • Mico 942.
  • Abryll (EM, MD, AD or PE) 1, 2 or 3.
  • USCH.
  • H101 or H126 lift off hinges.
  • TS83.
  • Locking cover.
  • Cable loop.
  • Assa DC200 or DC300.
  • Rockwool in frame optional.

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Finish

Gloss

Matt

Powder-coated

Semi-gloss

Textured

Show more

Material

Steel

Guidance for specification option:

Zintec, stainless steel, or Magnelis.

Stainless steel

Zintec steel

Shape

Rectangle

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Carbon steel doorsets

Configuration

Single leaf, single action with top panel.

Double leaf, single action with top panel.

Doorset size

Bespoke.

Guidance for specification option:

Insert requirement:

  • Single leaf: 1000–2930 x 600–1430 m.
  • Double leaf: 1000–2930 x 900–2600 mm.
  • Top panel: Consult manufacturer for size options.

Performance

-

Fire resistance

-

Integrity

Not required.

240 minutes.

Guidance for specification option:

M2M2 doors are available with a fire rating up to FD240, providing integrity fire resistance for up to 240 minutes, certified by Exova under the CERTIFIRE scheme (certificate number CF5107).


Acoustic performance

Not required.

To BS EN ISO 10140-2, sound reduction index Rw 40–42.

Guidance for specification option:

Tested by Lorient to BS EN ISO 101402: 2010, certain M2M2 doors are available with acoustic ratings from Rw 40 to Rw 42, providing 40 dB to 42 dB of noise reduction, depending on specification.

Intruder resistance

-

Minimum requirement

To LPS 1175, SR 2.

Guidance for specification option:

M2M2 doors are LPCB certified to LPS 1175: Issue 7 Security Rating 2 (certificate number 312f).

Conformity

Certification by accredited third-party certification body.

Frame

-

Material

Zintec steel.

Stainless steel.

Magnelis.

Manufacturer guidance

1.5 mm thick.

Threshold

Steel.

Aluminium.

Finish

-

Coating

Polyester powder coated.

Guidance for specification option:

Standard finish.

Wood effect.

Guidance for specification option:

High quality wood-grain at an additional cost.

Colour

Guidance for specification option:

Various colours available. Consult manufacturer and insert requirement.

Installation fasteners

Nine hooked dog bolts per leaf.

Frame accessories

Six hinges per leaf.

Door leaf

-

Thickness

66 mm.

Material

Zintec steel.

Stainless steel.

Magnelis.

Manufacturer guidance

1.5 mm thick.

Beading

-

Type

10 mm astragal.

Material

Steel.

Finish

-

Coating

Polyester powder coated.

Guidance for specification option:

Standard finish.

Wood effect.

Guidance for specification option:

High quality wood-grain at an additional cost.

External colour

Guidance for specification option:

Various colours available. Consult manufacturer and insert requirement.

Internal colour

Guidance for specification option:

Various colours available. Consult manufacturer and insert requirement.

Hardware

Not required.

MICO 942 2/3 point locking systems.

Guidance for specification option:

Not fire rated.

MICO USCH cylinder guard.

Guidance for specification option:

External access via MICO USCH cylinder guard with Scandinavian oval cylinders, as standard.

Padlockable hasp and staple access device.

Accessories

Not required.

Stays and closers.

Guidance for specification option:

M100 and TS83, as standard.

Removable top transom.

Profile

110 mm.

Manufacturer guidance

Frame profile.

FireRating

Not required.

FD240.

Guidance for specification option:

Optional. M2M2 doors are available with a fire rating up to FD240, providing integrity fire resistance for up to 240 minutes, certified by Exova under the CERTIFIRE scheme (certificate number CF5107).


Panic hardware

Not required.

MICO Elite panic escape.

Guidance for specification option:

Manual, automatic, or electromechanical deadlocking single point locking.

Vision panel

Not required.

203 x 356 mm.

203 x 762 mm.

457 x 457 mm.

Manufacturer guidance

Vision panels reduce the doorset fire rating to FD60.

Louvre size

Not required.

457 x 457 mm.

Manufacturer guidance

Doors with louvres are not fire rated.

Louvre panels

Not required.

Bladed.

Manufacturer guidance

Doors with louvres are not fire rated.

ConstructionMethod

Butt jointed frame.

Guidance for specification option:

Butt jointed frame sections, as standard.

Fully welded frame.

Guidance for specification option:

Fully welded frame available at an extra cost.

Opening

Inward.

Outward.

Reinforcement

3 mm chassis system.

Guidance for specification option:

No adjusters.

Weight

60 kg/m².

Manufacturer guidance

Circa.

Lifting points

M10 lifting point per leaf.

Hinges

100 mm lift off hinges.

13 butt hinges.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

2

Third party certifications

EN 13501-1 (Efectis)

EN 13501-1 (Efectis)

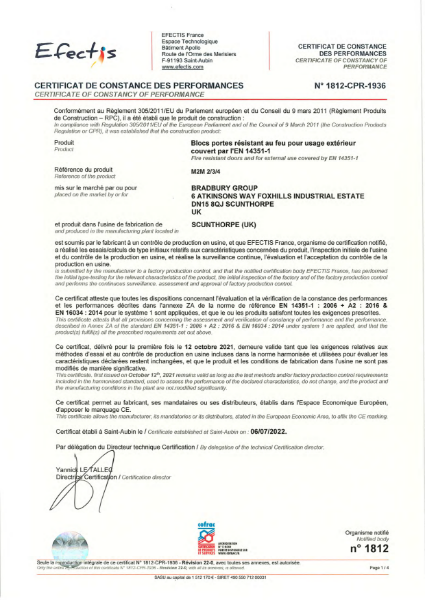

M2M 2/3/4 CE Efectics certificate of constancy of performance

Certifire Certificate

Certifire Certificate

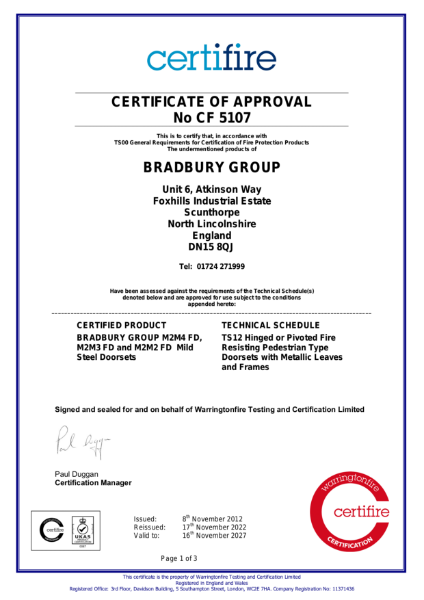

M2M2FD, M2M3FD & M2M4FD CERTIFIRE Certificate of Approval

EN 13501-1 (Efectis)

EN 13501-1 (Efectis)

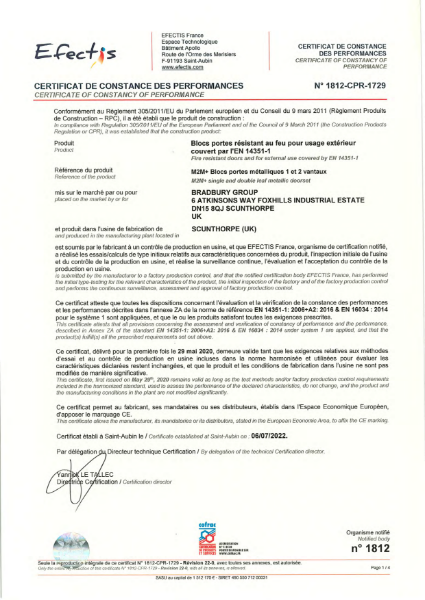

M2M CE Certificate of constancy of performance

EN 13501-1 (Efectis)

EN 13501-1 (Efectis)

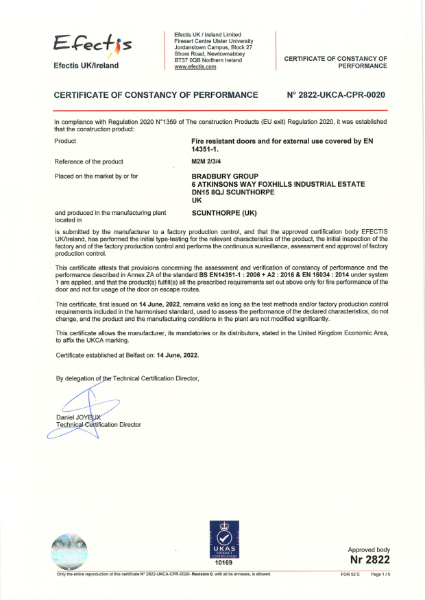

M2M 2/3/4 UKCA Efectics certificate of constancy of performance

Literature

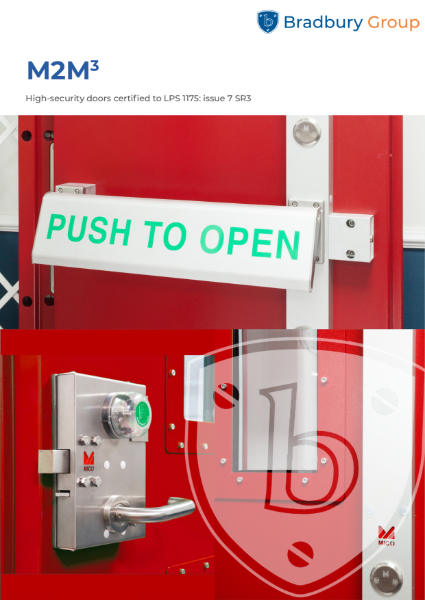

M2M3 Steel security and fire doorset product brochure

M2M3 Steel security and fire doorset product brochure

M2M3 Steel Security Door product specification

M2M3 Steel Security Door product specification

M2MFD Internal and External Fire Doors Product Brochure

M2MFD Internal and External Fire Doors Product Brochure
