FlowMotion® pedestrian security lane with glass wing gates.

Jump to:
+44 (0)333 006 3443 Website

Application

Suitable for indoor and outdoor applications for both monitored and non-monitored zones. Typical uses include:

  • Commercial Offices
  • Public & Private sector buildings
  • Hotels, Leisure Centres, Gyms
  • Sports stadiums.
  • Education Campuses

Description

The mWing pedestrian passageway has been developed for demanding architecture with high security requirements, significantly improving the security in a building by controlling persons entering or leaving an area with restricted access. It meets the requirements of the user, with extremely short opening times, and the possibility of open gate operation.


The modular system allows for multiple-lane configurations and can also provide passage widths that permit special access, for example, wheelchairs and pushchairs. The swing gate will only open after authorization, and closed in their normal state.


Features and benefits:

  • Extra slimline silhouette and elegant design.
  • Uni- or bi-directional direction of passage.
  • Half-height or full-height swing gate options.
  • Emergency release on power outage or closing of alarm contacts.
  • Random generator integrated in control system.
  • Throughput data acquisition and event log integrated in control system.
  • MHTM™ drive technology is designed for ten million opening and closing cycles and allows the swing wings to be blocked in any position.
  • Quick installation.
  • Low operating costs.
  • Available in narrow, standard, wide and extra-wide options.
  • Escape route approval.
  • IP54 Rated for indoor and outdoor applications.
  • CE marked.

General information

Color

Silver

Black

Other

Guidance for specification option:

Any standard RAL colour.

Finish

Powder-coated

Material

Other

Guidance for specification option:

mDure®, a two component material that belongs to the group of polyurethanes.

Shape

Other

Length

1300 mm

Width

600 mm

900 mm

960 mm

1000 mm

Manufacturer guidance

Passage width.

Height

888 mm

1800 mm

Bespoke

Warranty description

One year

Guidance for specification option:

Standard 1 year warranty that can be extended subject to quotation. Contact manufacturer.

Uniclass

Pr_30_59_15_36 Half-height access control gatesPrimary

CAWS

L20/490 Automatic doors

L20/60 Doors

Specification data - Half-height access control gates

Standard

Manufacturer's standard.

Guidance for specification option:

  • To EN ISO 12100:2010.
  • To EN 60204-1:2018.
  • To EN 61000-6-2:2005/AC:2005.
  • To EN 61000-6-3:2007/A1:2011/AC:2012.
  • To EN ISO 13849-1:2018.
  • To EN 60335-2-103:2015.
  • To prEN17352:2019.
  • See EU-Declaration of Conformity for more information.

Third-party certification

Escape route approval.

Properties

-

Safety features

Emergency release on power outage or closing of alarm contacts.

Green break glass unit.

Configuration

Single lane.

Guidance for specification option:

Two modules required.

Multiple-lane.

Guidance for specification option:

Number of modules: Number of lanes plus one.

Manufacturer guidance

Minimum distance between modules: 50 mm.

Housing

-

Type

Manufacturer's standard.

Guidance for specification option:

Length x width x breadth: 1300 x 1050 x 180 mm (per module).

Material and finish

mDure® polyurethane.

Colour

White aluminium.

Guidance for specification option:

(Similar to RAL 9006).

Jet black.

Guidance for specification option:

(Similar to RAL 9005).

Customer specific.

Guidance for specification option:

More than 20 colour options are available, contact manufacturer and insert requirements.

Panel

-

Type

Uni-directional.

Bi-directional.

Rotation

Swing.

Speed of opening

0.6–1 seconds.

Guidance for specification option:

Depending on barrier element dimensions.

Material and finish

Glass wing, single-layer safety glass (ESG).

Glass wing, acrylic glass.

Colour

Transparent.

Size

-

Clear opening width (minimum)

520 mm.

Overall width

-

Manufacturer guidance

Overall width is dependent on configuration and selected passage width. Consult manufacturer's literature.

Length

1300 mm.

Height

888 mm.

Guidance for specification option:

Standard half-height version.

1800 mm.

Guidance for specification option:

Full-height version.

Custom.

Guidance for specification option:

Additional barrier hights are available on request. Contact manufacturer and insert requirements.

Fixing

Screw mounting to finished floor surface.

Mounting on unfinished floor.

Guidance for specification option:

By use of adjustable foundation frame.

Glue mounting.

Guidance for specification option:

By use of a metal base plate.

Raised access floor fixing.

Floor plinth.

Security

Anti-tailgating system.

Access gate panels normally closed.

Warning on forced entry.

Guidance for specification option:

Optional.

Interlock against forced entry.

Guidance for specification option:

Optional.

Under-crawl detection.

Anti-climb detection.

Credential Reader

-

Type

Not required.

Required.

Guidance for specification option:

Insert detailed requirements.

Controls

Integrated MGC control system.

Number of transactions (minimum)

40 per minute.

Guidance for specification option:

Number of persons per minute depends on reader, lock setting and person behaviour.

Control unit

MGC.

Guidance for specification option:

  • MHTM™ drive technology.
  • Integrated random generator and throughput data acquisition and event log.
  • 8 digital inputs, 4 digital outputs, and 6 relay outputs.

Power supply

100–240 V a.c, 50–60 Hz.

Guidance for specification option:

Maximum power consumption, 45 W.

Communications

Ethernet.

Accessories

Emergency button.

Guidance for specification option:

For triggering the alarm contacts and unlocking the barrier elements.

Base frame.

Guidance for specification option:

For integration in new buildings, height adjustable between 10 and 15 cm.

Escape routes and wide passageways.

Guidance for specification option:

mSwing swing door for escape routes and wide passageways.

Separation of access areas.

Guidance for specification option:

mGuide railing system for the separation of controlled and uncontrolled areas.

Adhesive plate.

Guidance for specification option:

For adhesive mounting on finished floors.

Not required.

Lighting

Not required.

Passage direction indicator.

Floor illumination.

Green and Red LED indicators.

Weight

120 kg (approximate).

Manufacturer guidance

Weight per module.

Duty cycle

100%.

TemperatureRange

−30 to +55 °C.

Manufacturer guidance

Operating and storage temperature range.

Ingress protection (IP) rating

IP54.

RelativeHumidity

95% (maximum), non-condensing.

SoundPressure

≤70 dB (A).

Manufacturer guidance

Airborne sound pressure level (LpA).

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Manufacturing plant location

Recyclability

100

Guidance for specification option:

mDure cabinet is 100 recyclable.

Third party certifications

BIM objects

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

EPD

EPD

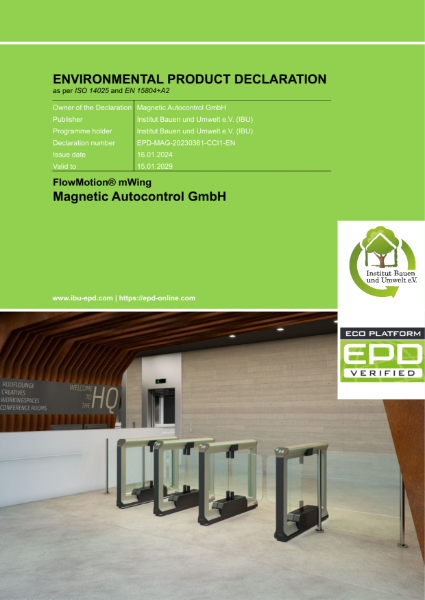

Environmental Product Declaration

Literature

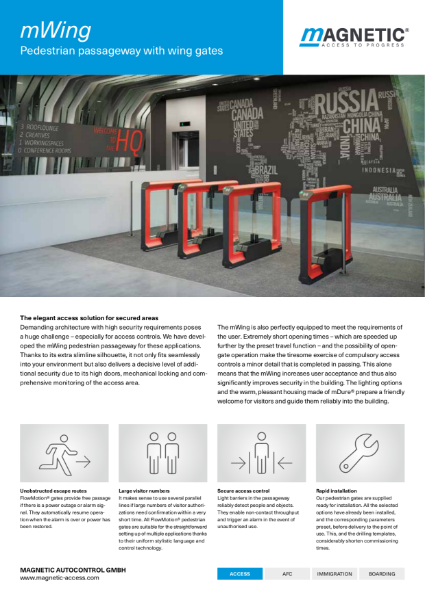

mWing Data Sheet

mWing Data Sheet

mWing - Declaration of Quality

mWing - Declaration of Quality

Case studies

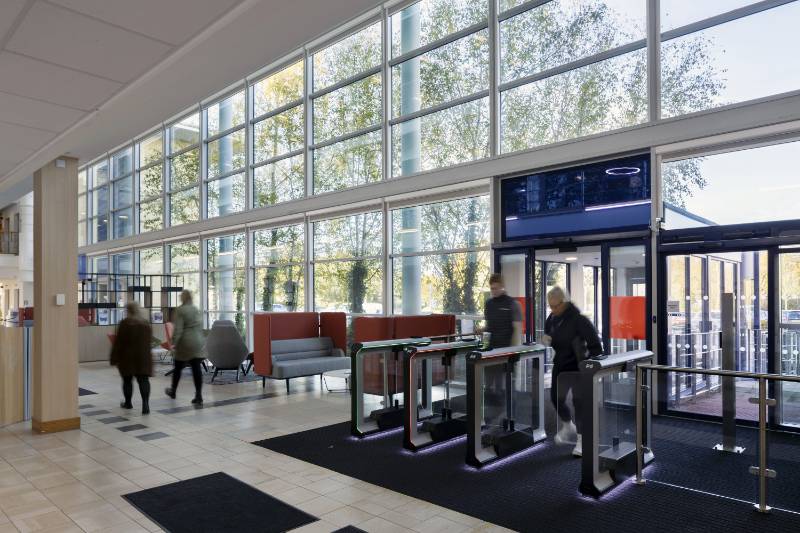

EDF Offices
