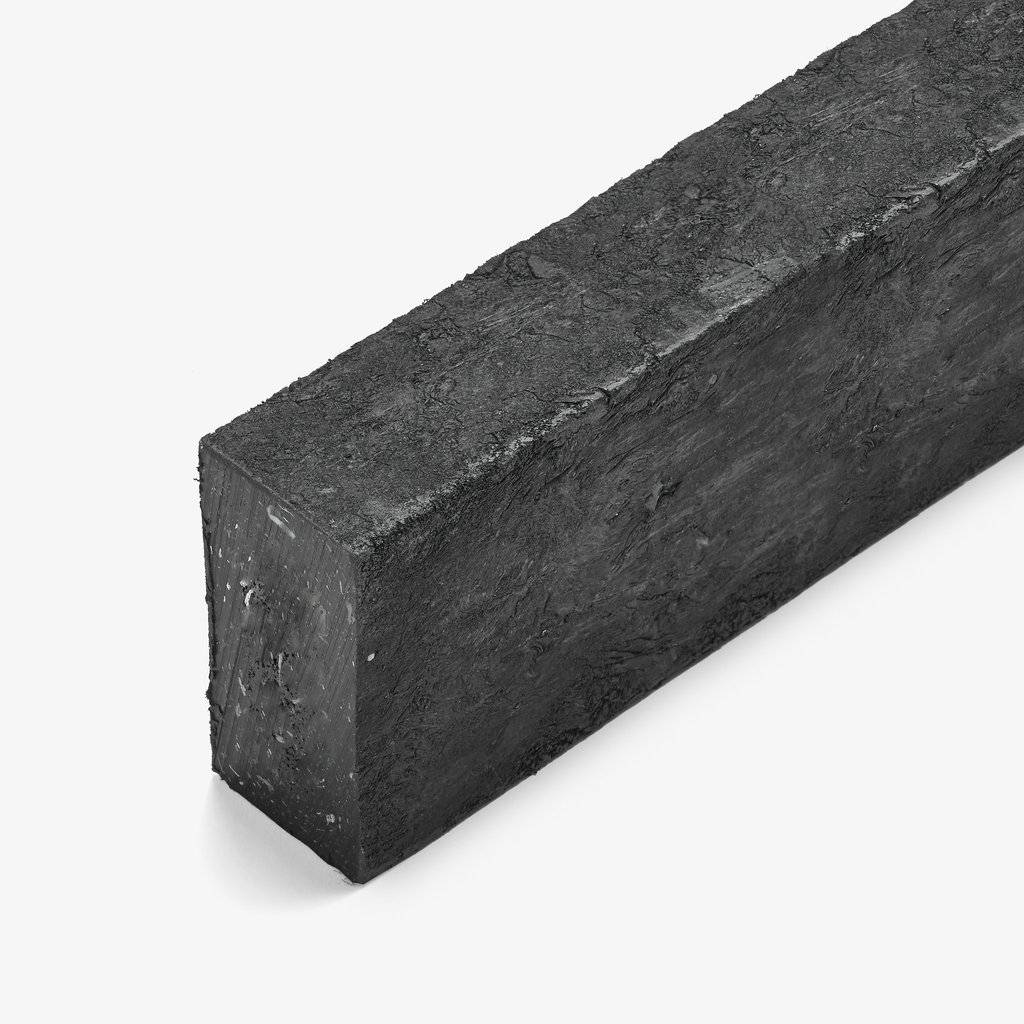

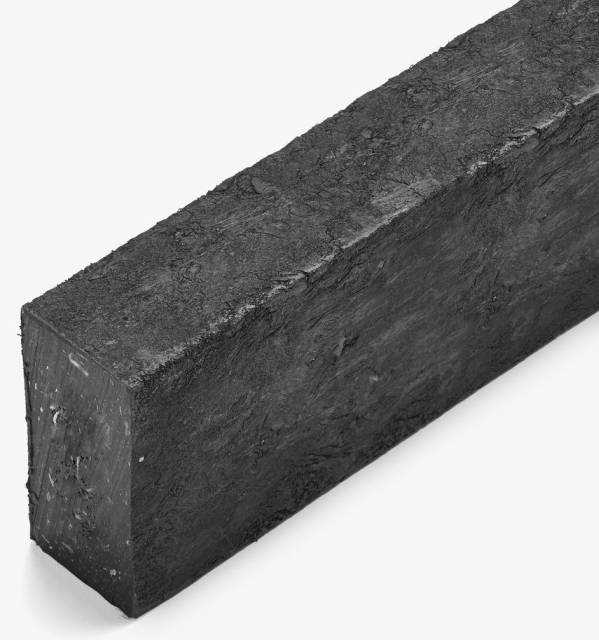

Manticore® Plastic Lumber Joists
Verified by manufacturer 4 months ago
20 x 100 mm
20 x 100 mm
A sustainable alternative to lumber made from 100% recycled content that is unusable in conventional recycling processes.
Application
Plastic lumber is also incredibly versatile, being suitable for far more environments than wood. It can even be built directly into the ground due to its waterproof nature. This makes it the ideal material for areas subject to flooding or standing water. Making it perfect for deking substructures.
Description
Lumber decking joists constructed from 100% recycled plastic, using plastic waste that is unusable in conventional recycling processes.
Features and benefits:
- Low maintenance: never treat or stain.
- Does not rot or split.
- Heavy duty and durable.
- Ten-year limited residential warranty.
- Receptive to nails and screws, easily sawn and joined.
- Fully recycled material.
*We recommend ordering 4m per 1m² of decking*
Recycled plastic lumber is both practical and environmentally friendly, delivering excellent benefits to your project. Our recycled plastic lumber products are exceedingly durable, anti-rot and maintenance-free.
Plastic lumber, unlike traditional timber, lasts far longer, does not split or splinter and does not require frequent treatment (i.e. sanding, staining and sealing), resulting in considerable lifetime cost savings by reducing maintenance and replacement budgets.
Plastic lumber is also incredibly versatile, being suitable for far more environments than wood. It can even be built directly into the ground due to its waterproof nature. This makes it the ideal material for areas subject to flooding or standing water.
General information
Color | Black |
Finish | Manufacturer guidanceNatural grain. |
Material | Plastic |
Shape | Rectangle Square Circle |
Length | 3100 mm 3400 mm 2400 mm 3000 mm Bespoke |
Width | 38 mm 20 mm 30 mm 40 mm 50 mm |
Height | 38 mm 40 mm 50 mm 100 mm 150 mm |
Warranty description | Ten year Guidance for specification option: Limited residential manufacturer warranty against breakage, splinters, rot or structural damage from termites or fungal decay. |
Uniclass | |
CAWS | Q55/110 Deck Q55/370 Composite sections |
Product range |
Specification data - Structural plastics sections
Plastics | |
Recycled plastics and composites | Recycled plastics. |
Recycled content | 100% mixed plastics. |
Standards | |
Recycled plastics | |
Generally | Manufacturer guidance100% mixed plastics. |
Dimensions | |
Cross section | 20 x 100 mm. |
Length | 2.4 m. |
Colour | Black.Brown. |
Density | 0.96 g/cm³. Manufacturer guidanceTo ASTM D792-13, method B. |
Elastic modulus | 297 MPa. Manufacturer guidanceTensile modulus (to ISO 527-1). |
Flexural strength | 12.3 MPa. Manufacturer guidanceTo BS EN 15534-1. |
YoungModulusBending | 420 MPa. Manufacturer guidanceFlexural modulus (to BS EN 15534-1). |
Tensile strength (minimum) | 25.6 MPa. Manufacturer guidanceTo ASTM D638-10. |
Co-efficient of linear thermal expansion | 0.016 mm/m/C. Manufacturer guidanceIn range of -30°C to +30°C. |
FireRating | Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.46 kg CO₂ eq/kg Self declared Guidance for specification option: 0.93 if manufactured with wind energy. |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: Fully recycled plastic. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 1 |
 Revit | Revit 2016 | 2 |
Literature
Manticore Lumber Product Brochure
Case studies
Residential Apartment Decking- Ebury Place
Centre Point Decking
Clockwork Building Rooftop Balcony Decking
McMillan House Apartment Decking
Colindale Residential Apartment Decking
Garden Pavilion Decking
