Mapeplan® T
Verified by manufacturer 2 months ago
Mapeplan® Af 12
Mapeplan® Af 12

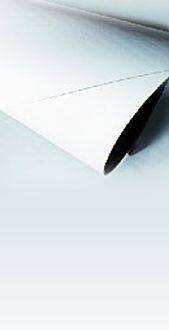

Flexible polyolefin roofing waterproofing membranes.
Application
- Mapeplan® T Af: Suitable for use with adhered system for exposed roof installations.
- Mapeplan® T B: Suitable for loose laid ballasted, utility deck (pedestrian - parking) and roof garden systems.
- Mapeplan® T M: Suitable for exposed roof installations and for mechanical fixing.
Description
Synthetic roofing waterproofing membranes constructed from flexible polyolefin (FPO), produced in one multi-extrusion coating process with high quality raw materials. Conform to BS EN 13956.
General information
Material | FPO (flexible polyolefin) Glass Polyester |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/110 Warm deck roof covering J42/120 Inverted roof covering J42/130 Cold deck roof covering J42/400 Waterproof membrane |
Specification data - Polymeric membranes
Material | Mapeplan® T Af: FPO (flexible polyolefin) reinforced with glass mat, fleece backed with 300 g/m² woven-non-woven polyester.Mapeplan® T B: FPO (flexible polyolefin) reinforced with glass mat.Mapeplan® T M: FPO (flexible polyolefin) reinforced with polyester net. |
Standard | To BS EN 13956. |
Width (minimum) | 1050 mm.Guidance for specification option: For Mapeplan® T M only. 1600 mm.Guidance for specification option: For Mapeplan® T M only. 2100 mm. |
Thickness (minimum) | 1.2 mm. |
Colour | High reflectance Smart White.Guidance for specification option: Top layer. Black.Guidance for specification option: Bottom layer. |
Roll length | Dependent on thickness. |
Joints | Joint peel resistance (to BS EN 12316-2): ≥300 N/50mm. Joint shear resistance (to BS EN 12317-2): Af and B: ≥500 N/50mm; M: ≥650 N/50mm. |
Water vapour diffusion resistance | μ, to BS EN 1931, 150 000. |
TensileStrength | To BS EN 12311-2, Af 15: ≥700 N/50mm; Af 18: ≥800 N/50mm; Af 15: ≥900 N/50mm; B 15, B 18 and B 20: ≥9 N/mm²; M 12, M 15, M 18 and M 20: ≥1100 N/50mm. |
Elongation at break | To BS EN 12311-2, Af: ≥65%; B: ≥550%; M: ≥15%. |
Resistance to tearing | To BS EN 12311-2, Af: ≥65%; B: ≥550%; M: ≥15%. |
Flexibility at low temperature | To BS EN 1109, ≤-40°C. |
Dimensional stability | To BS EN 1107-2, Af and B: ≤0.2%; M: ≤0.3%. |
Weight | 1.5 kg/m². |
