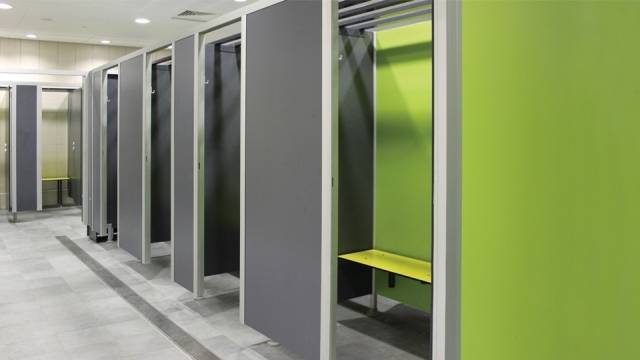

Marathon Conform™ Suspended/ Elevated Cubicle

Verified by manufacturer 5 months ago

Prospec Ltd

Suspended variation on the fully framed Conform cubicle with load bearing head beam allowing minimal contact with the floor and a true floating appearance which also aids cleaning.

Jump to:
+44 (0)1709 377147 Website

Application

Suitable for high-use public washrooms, changing areas and WCs, and demanding public environments.

Description

A fully framed suspended system with load bearing head beam, designed for high-use public washrooms, changing areas and WCs, and demanding public environments.

It has Compact Grade Laminate panels and doors and incorporation of pilaster panels enables site adjustments so that cubicles are compliant with 450 mm diameter manoeuvring space in WC cubicles and 550 mm diameter in shower and changing cubicles. Can include contrasting colours to achieve LRV standards. Conforms to current EA/DDA and IFI requirements.


Features and benefits:

  • Fully framed suspended / self-supported structural aluminium head section.
  • Full-length channels are used to attach partitions to walls.
  • Extruded aluminium section mechanically joined to vertical posts to form structural framework.
  • Concealed or tamperproof fixings.
  • Can be used in conjunction with Prospec panel/ floor mount bench seats.
  • Anti-finger and anti-nip detail.
  • Tamperproof design, no exposed mechanical fixings.
  • Pilaster panels secured into frame with anti-fungal silicone adhesive.
  • Full integration with Trojan aluminium framed access panel system.

General information

Color

Silver

Finish

Anodized

Guidance for specification option:

Silver anodized.

Powder-coated

Guidance for specification option:

Polyester powder-coated.

Material

Solid grade laminate (SGL)

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_25_12_60_30 Fully-framed panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/112 Fully framed panel cubicles

Specification data - Fully-framed panel cubicle systems

Panels

10 mm toughened cast glass.

10 mm toughened cast glass - Opti-white.

10 mm toughened float glass.

10 mm toughened float glass - Opti-white.

10.76 mm toughened and laminated float glass.

10.76 mm toughened and laminated float glass - Opti-white.

12 mm Solid Grade Laminate.

Guidance for specification option:

Standard.

Panel supports

Frame: Vertical posts are mechanically joined to the head beam with aluminium spigots connections to form a structural framework. Junctions and intermediate supports (when required) are formed in-situ with vertical 100 mm square support posts connected to floor by adjustable legs. Type: Aluminium extrusions. Finish: Satin anodized to 25 microns. Colour: Silver.

Doors

10 mm toughened cast glass.

10 mm toughened cast glass - Opti-white.

10 mm toughened float glass.

10 mm toughened float glass - Opti-white.

10.76 mm toughened and laminated float glass.

10.76 mm toughened and laminated float glass - Opti-white.

12 mm Solid Grade Laminate.

Guidance for specification option:

Standard.

Lippings

Panel/ door edges: Laminate – all edges polished and bull-nosed with radiused corners, Glass dividers: All edges polished and exposed corners with radius.

Hardware

Hinges: Three nylon covered heavy duty stainless steel/ brass hinges per door – one sprung, two un-sprung, Door holder mechanism included to doors opening out into a 'void', Standard cubicles: Provided with concealed nylon latch with indicator and emergency release, Standard fixed internal door knob with integral stop buffer, Coat hooks: Standard (one person cubicle) – one nylon hook per cubicle (fixed to framework), DDA specified cubicles: Two nylon hooks per cubicle (fixed to framework), Family specified cubicles: Four nylon hooks per cubicle (fixed to panels).

System accessories

None.

Other.

Guidance for specification option:

Consult manufacturer and insert requirements.

Anti-camera skirting.

Anti-peep rails.

Arcus type nylon toilet roll holder.

Concealed nylon door latch set with sliding action.

Heavy-duty anti-vandal door latch assembly.

Hydraulic door closer.

Internal cubicle dividing fins.

Guidance for specification option:

Used to create wet and dry cubicle (shower/ change).

Twin door island 'walkthrough' cubicles configuration for wet/ dry side layout.

Guidance for specification option:

Complete with door latching shelf operation.

Colour

Guidance for specification option:

Consult manufacturer standard colour range and insert requirement.

Colour/ Pattern

Laminate range, colour.

Guidance for specification option:

Consult manufacturer's standard colour range and insert requirement.

Colour/ Pattern

Laminate range, colour.

Guidance for specification option:

Consult manufacturer's standard colour range and insert requirement.

Colour/ Finish

Laminate range, colour.

Guidance for specification option:

Consult manufacturer's standard colour range and insert requirement.

Opaque ceramic paint colour.

Guidance for specification option:

Consult manufacturer's standard colour range and insert requirement.

DDA/ Ambulant cubicle provision

Not required.

DDA compliant handle set with lever action turn.

Horizontal grab rails.

Two coat hooks to DDA compliant cubicles.

Vertical grab rails.

Seats

Not required.

Integral 12 mm Solid Grade Laminate bench seats.

Guidance for specification option:

Standard for all changing cubicles.

Postformed 12 mm Solid Grade Laminate bench seats.

Duct system

Not required.

Trojan aluminium framed access panel system.

Guidance for specification option:

To be specified separately.

Floor

Floor clearance: 150 mm.

Guidance for specification option:

Floor attachment: Adjustable two-part nylon floor attachment with fully concealed stainless steel fixings and adjuster bolt.

Manufacturer guidance

Non-standard sizes available on request, consult manufacturer.

Headrail

Extruded aluminium, 105 x 65 mm hollow section head beam.

Guidance for specification option:

Capable of spans up to 6 m of single depth wall mounted cubicles, 3 m span for island and back to back island layouts.

Cubicle height (overall)

2106 mm.

Guidance for specification option:

Non-standard sizes available on request, consult manufacturer and insert requirement.

Sustainability data

Contains Red List materials

No

Country of material origin

-

Manufacturer guidance

Europe mix.

Country of product manufacture

United Kingdom

Recyclability

Laminate

Manufacturer guidance

Medium.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Solid Grade Laminate, Aluminium.
