Marathon Connect - Panel Cublicle
Verified by manufacturer 27 days ago

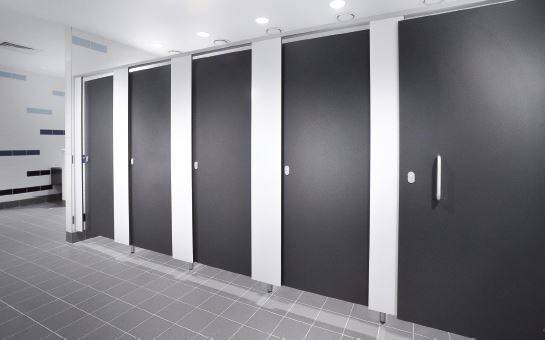

Marathon Connect Cubicles
Application
- Leisure and general commercial applications that do not experience a high volume of use.
- Not suitable for use in island or free-standing applications.
Description
Unframed panel cubicle with compact grade laminate panels.
Features and benefits:
- The adjustable aluminium pedestal uses a unique clamping system.
- Overlap door and panel detail to avoid finger traps.
- Includes a through fixed aluminium rotary door lock with no visible fixings, and emergency release system.
- Soft-close hinges allow doors to close quietly, and are through-fixed for added strength.
- Expanding metal inserts are used to accept all hinges.
- Fully extruded aluminium wall channel to the rear of each division panel.
General information
Color | Silver |
Finish | Anodized Guidance for specification option: Silver anodized. Powder-coated Guidance for specification option: Polyester powder-coated. |
Material | Laminate Guidance for specification option: Solid Grade Laminate. Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Specification data - Panel cubicle systems
Panels | 12 mm Solid Grade Laminate. |
Pilasters | 12 mm Solid Grade Laminate. |
Doors | 12 mm Solid Grade Laminate. |
Lippings | Polished and bull-nosed, with radiused corners. |
Hardware | Extruded aluminium wall channel to rear of each division panel and adjustable pedestal legs with nylon base, Door fittings: Spring loaded, soft closing hinges, satin anodized aluminium door latch with indicator and emergency release to the exterior, rubber buffer sited within the lock receiver, one coat hook per standard cubicle and two coat hooks to DDA compliant cubicles. |
Curtains | Not required.Required.Guidance for specification option: Available on request. |
Samples required | Not required.Required.Guidance for specification option: Available on request. |
System accessories | Not required.Door holder.Guidance for specification option: For outward opening doors. |
Type | Changing. WC. Shower. |
Height | 1986 mm. Guidance for specification option: Available 2006–2500 mm high, including floor clearance of 15–150 mm. Consult manufacturer and insert requirements. |
Headrail | Continuous extruded aluminium. |
Frame | Aluminium extrusions satin silver anodized to 25 µ. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceEurope mix. |
Country of product manufacture | United Kingdom |
Recyclability | Laminate Manufacturer guidanceMedium. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceSolid Grade Laminate, Aluminium. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Connect Cubicles Technical Data
