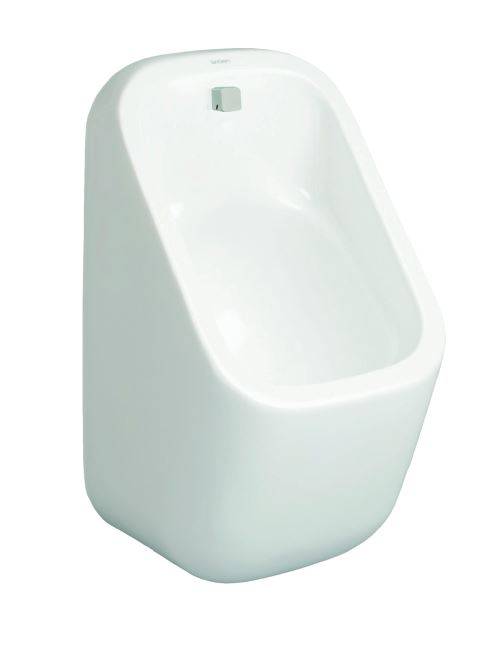

Marden Concealed Trap Urinal
Verified by manufacturer 6 months ago
Concealed trap urinal with uniquely designed spreader.
Application
Suitable for all sectors.
Description
Concealed trap urinal bowl.
Features and benefits:
- HBN and HTM compliant urinal bowl.
- Concealed bottle trap design.
- Suitable for all sectors.
General information
Color | White Guidance for specification option: Alpine white. |
Finish | Smooth Guidance for specification option: Alpine white. |
Material | Vitreous china Guidance for specification option: To BS 3402. |
Length | 310 mm |
Width | 310 mm |
Height | 570 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/315 Urinals and auto-flushing cisterns N13/15 Urinals and cisterns |
Specification data - Wall-hung urinals
Approval | HBN and HTM. |
Urinal type | IV. |
Flushing device | B. |
Form | Bowl. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |
Water supply, overflow and waste holes | |
Water supply | Top supply hole. |
Overflow | None. |
Waste | URIN116: Bottom outlet, 1 ½” domed white plastic urinal waste.L10: Bottom outlet, 1½” P trap 75 mm seal.URIN117: Bottom outlet, 1 ½” elbow. |
Urinal Spreader | MDUR102: Back inlet. Guidance for specification option: Marden square back inlet spreader. |
Flushing arrangement | URIN101: 4.5 L. Guidance for specification option: Concealed auto cistern and fittings (1–2 bowls). URIN102: 9 L. Guidance for specification option: Concealed auto cistern and fittings (3 bowls). URIN103: 13 L. Guidance for specification option: Concealed auto cistern and fittings (4–5 bowls). |
Fixings | Concealed hangers. Guidance for specification option: Supplied with concealed hangers (pair). |
Weight | 19 kg. |
Sustainability data
Material | Vitreous china Guidance for specification option: To BS 3402. |
