Markage MB - Smoke Control Damper - Multi-blade - Rectangular Smoke Control Damper

Verified by manufacturer 2 months ago

MARKAGE MB smoke control damper

Rf-Technologies Variant:
Third party certifications:
  • Classification report acc. to EN 13501-4

    Certificate type

  • DoP

    DoP

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

"1366-10 MA (Manual Activation) certified" smoke control damper with a fire resistance up to 120 minutes for multi-compartment applications. Up to W1200 x H2400 mm. With high nett passage performance.

Jump to:
+44 7939316006 Website

Application

Markage MB - MA Certified Smoke Control Damper for multi-compartment applications up to 120 minutes - C10.000 - HOT 400/30


"1366-10 MA (Manual Activation) certified" smoke control damper with a fire resistance up to 120 minutes for multi-compartment applications. Up to W1200 x H2400 mm. With high nett passage performance.


Markage MB Certified installations and sealing methods

  • In rigid wall & floor.
  • In shaft wall.
  • In refractory duct.
  • Horizontal & vertical
  • For indoor use
  • For full details: D.o.P. (associated content).


Markage MB Fields of application

  • Fire & smoke compartmentation
  • single & multi-compartment
  • Smoke control ducts, tested according to EN 1366-8 and EN 1366-9
  • Automatic Opening Vent (AOV).
  • Smoke & Heat Exhaust Ventilation Systems (SHEVS)
  • Natural and/or mechanical.
  • Pressure Differential Systems (PDS).
  • Both for air supply and for smoke control / evac.
  • Combined comfort and smoke control ventilation.


Markage MB Building applications:

  • High rise buildings.
  • Industrial, commercial & residential buildings.
  • Hospitals and care houses.
  • Student housing.
  • Underground car parks.
  • Detention institutes.
  • Universities, colleges and schools.

Description

Markage MB - MA Certified Smoke Control Damper for multi-compartment applications up to 120 minutes - C10.000 - HOT 400/30


"1366-10 MA (Manual Activation) certified" smoke control damper with a fire resistance up to 120 minutes for multi-compartment applications. Up to W1200 x H2400 mm. With high nett passage performance.


Markage MB Distinct Product Features

(incl. specifications)

  • Up to the highest classification in the market
  • EI 120 (ved hod i<->o) S 1500 C10.000 HOT400/30 MA MULTI
  • CE certified against EN 1366-10 and EN 12101-8.
  • UKCA certified.

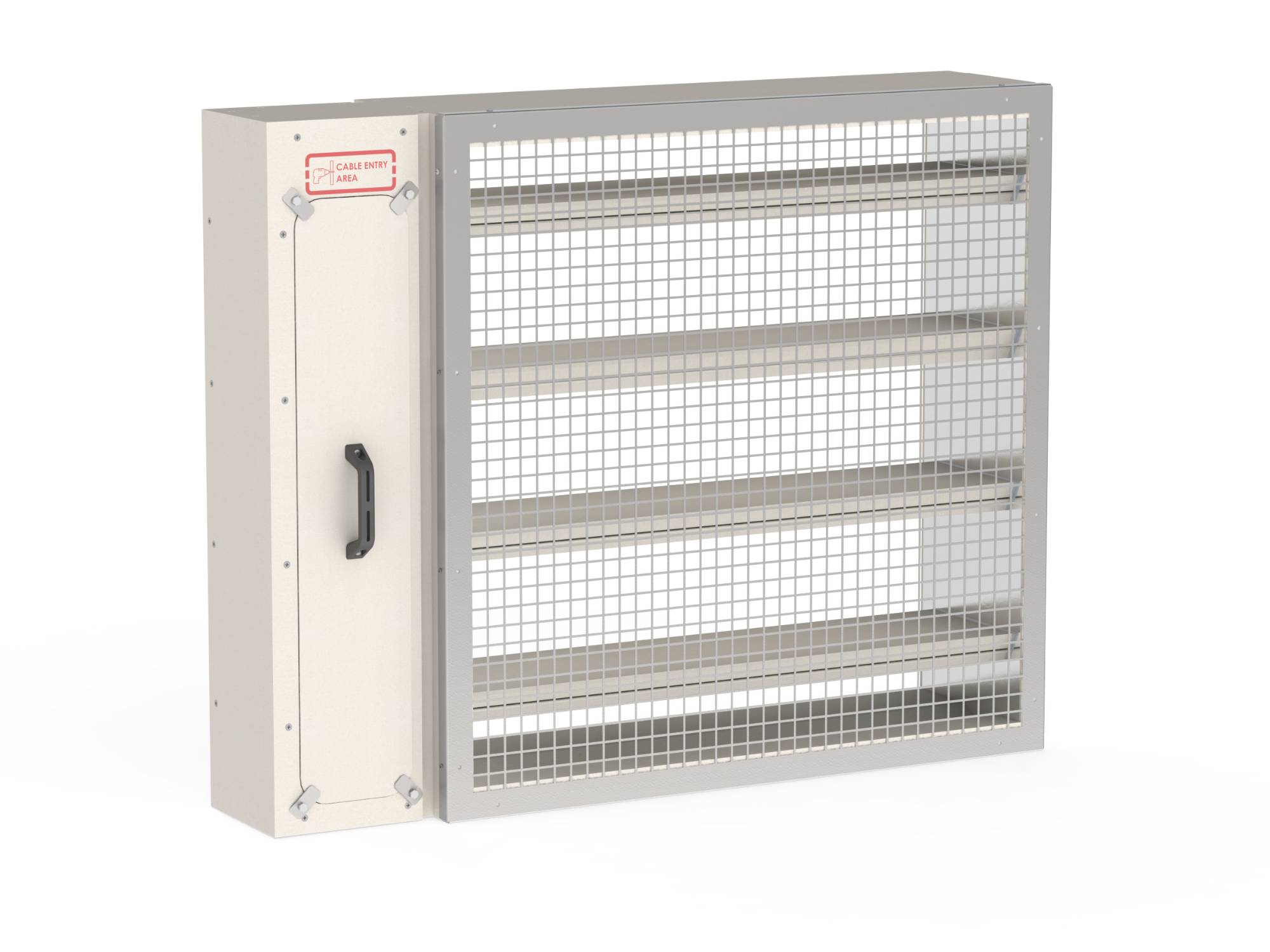

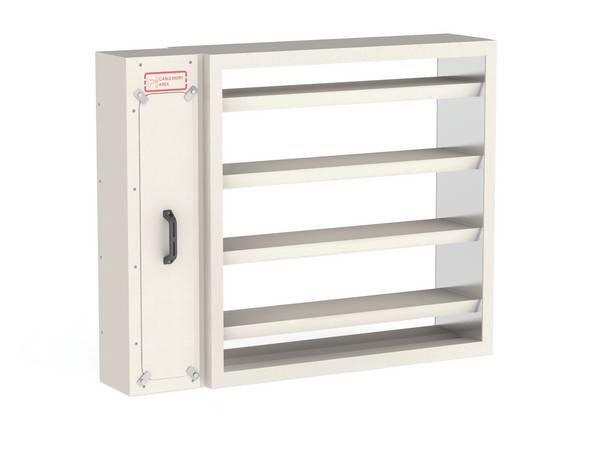

  • Multi-blade architecture with a product depth of only 250mm
  • I certified.
  • Minimal pressure loss - maximum nett passage.
  • Up to 1500 Pa, pressure level 3 (high rise buildings).
  • Light weight compared to similar market offerings.
  • Proven transport and packaging performance
  • Motorized, drive open - drive close
  • Belimo 24V or Belimo 230V
  • Front accessible motor & controls cabinet (MA)
  • Designed for use with ZENiX controls.
  • ZENiX field module integrated in motor and controls cabinet (MA)


Markage MB Installer & User Benefits:

  • Maximum installation flexibility
  • Large number of installation possibilities
  • Wide size range
  • Smallest: W200 x H200 mm
  • Largest: W1200 x H2400 mm
  • Limited product depth
  • 250 mm
  • Maximum free air passage - low pressure drop
  • Ultimately leading to lower system investments and energy consumption.
  • Allowing the combination of smoke control and comfort ventilation thanks to C10.000 specification.


Markage MB Range: (Width/Height)

  • Smallest: W200 x H200 mm
  • Largest: W1200 x H2400 mm


Markage MB Grille Options:

  • Technical & aesthetical grill option


Notes:

  • For information about the different types of installation and sealing methods please consult the Markage MB Product application field and or the Declaration of Performance (DoP).


Relevant Links:

General information

Color

White

Finish

Powder-coated

Guidance for specification option:

Casing (steel).

Material

Calcium silicate

Guidance for specification option:

PROMATECT MT.

Shape

Rectangle

Length

250 mm

Guidance for specification option:

Nominal depth.

Width

200 mm

250 mm

300 mm

350 mm

400 mm

Show more

Height

200 mm

400 mm

600 mm

800 mm

1000 mm

Show more

Warranty description

One year

Guidance for specification option:

From delivery date.

Uniclass

Pr_65_65_24_80 Smoke dampersPrimary

CAWS

U90/445 Dampers, smoke

Specification data - Smoke dampers

Standard

To EN 12101-8:2011.

Classification

-

Standard

To EN 13501-4.

Multi-compartment

-

Integrity class

EI 90.

Guidance for specification option:

Minimum.

EI 120.

Guidance for specification option:

Consult manufacturer for details on how to achieve classification.

Not available for installations into rigid walls; consult manufacturer for details.

High operational temperature

HOT 400/30.

Suitability

Rigid wall.

Rigid floor.

Horizontal refractory duct.

Guidance for specification option:

See Accessories for relevant mounting brackets.

Vertical refractory duct.

Guidance for specification option:

See Accessories for relevant mounting brackets.

Shaft wall.

Smoke leakage

S.

Under pressures

1500.

Inside or outside

(i ↔ o).

Smoke control use

C10000.

Activation

MA – manual.

Actuators

Actuator - Belimo 24 V.

Actuator - Belimo 230 V.

Dimensions

Guidance for specification option:

Consult manufacturer's literature for performance details and insert requirements (dampers):

  • Nominal height: 200–2400 mm in 200 mm increments.
  • Nominal width: 200–1200 mm in 50 mm increments.

Overall height = nominal height + 70 mm.

Overall width = nominal width + 295 mm.


Nominal depth: 250 mm.

Consult manufacturer unit weights based on requirements.

Accessories

Integrated ZENiX 1SD.

VS mounting brackets, for vertical suspension.

HS mounting brackets, for horizontal suspension.

KITS SUPP installation material, for seals with a joint.

JK BAT mounting hardware, for combining multiple dampers into a battery.

Show more

Third-party certification

CE marked Efectis_1812-CPR-1905.
VKF-AEAI_31587_31586.
UKCA certified 2822-UKCA-CPR-0016.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Belgium

Material

Calcium silicate

Guidance for specification option:

PROMATECT MT.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0 kg CO₂ eq/unit

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

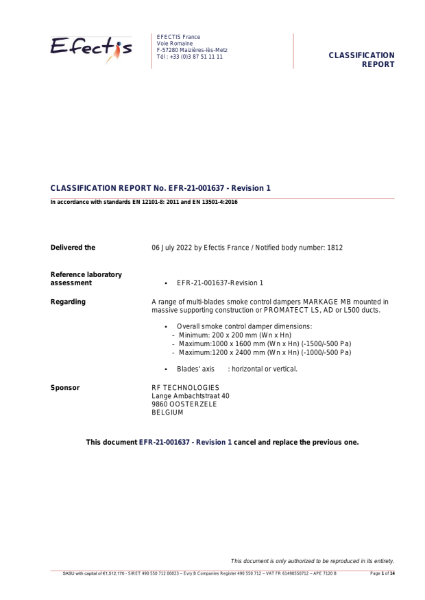

Classification report acc. to EN 13501-4

Classification report acc. to EN 13501-4

Markage MB Classification Report

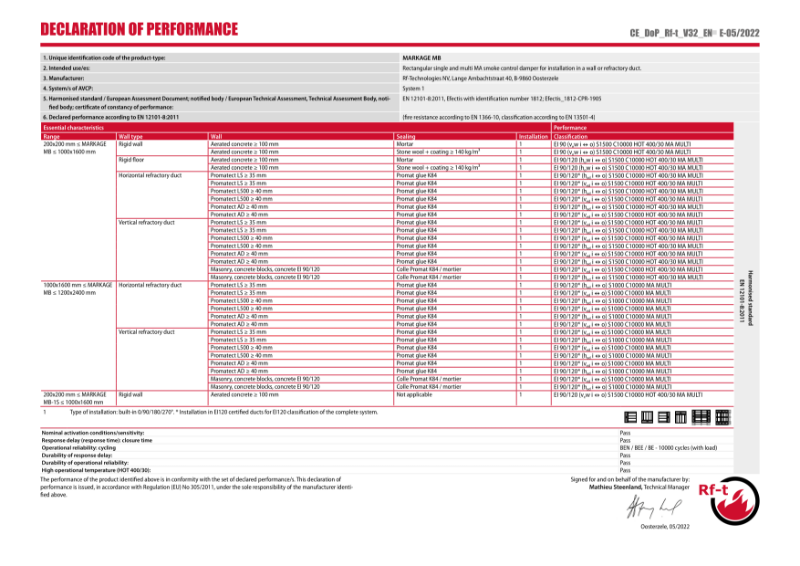

DoP

DoP

Markage MB Declaration of Performance - DoP

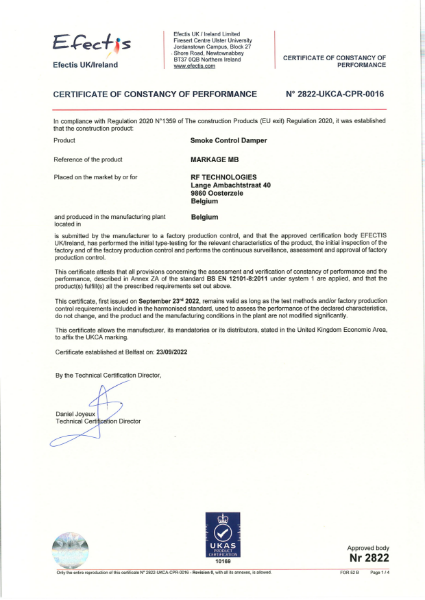

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

Markage MB UKCA Certificate

Literature

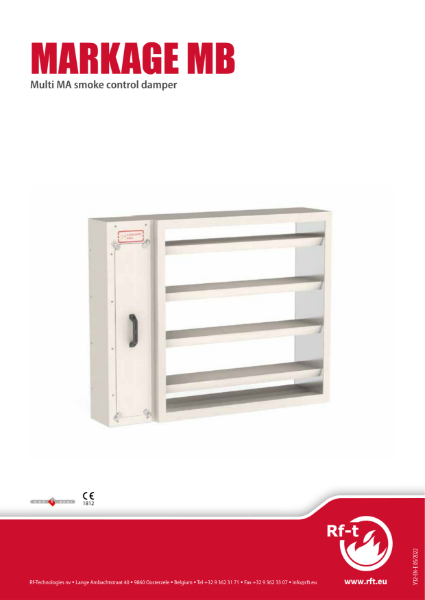

Markage MB Technical Product Documentation

Markage MB Technical Product Documentation
