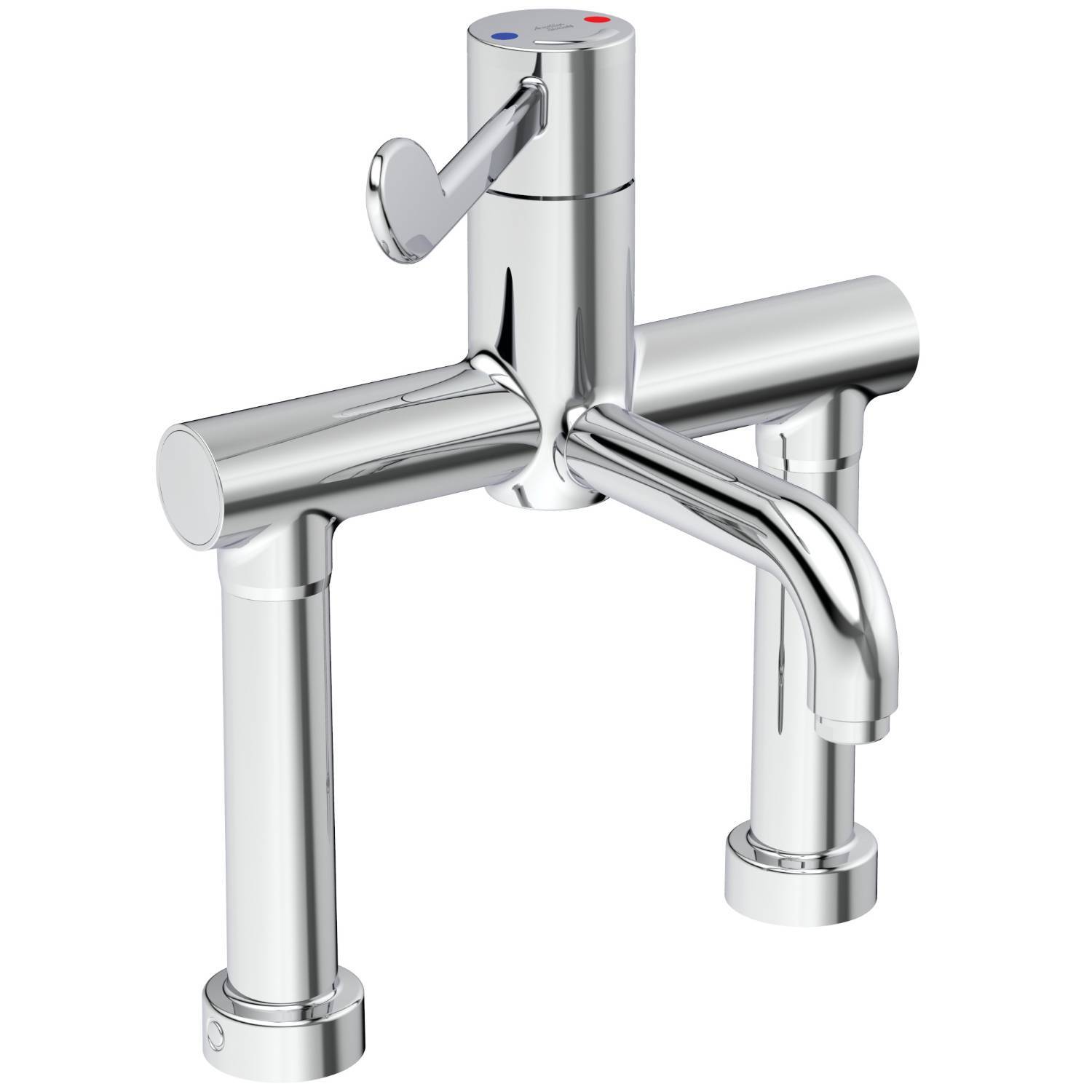

Markwik 21+ Comfort SQ Deck Mounted Mixer With Detachable Spout – Non-Thermostatic (PBV)
Verified by manufacturer today
EPD
Certificate type
Non-thermostatic deck-mounted mixers with pressure balance valve technology (PBV) and paired with a sequential lever operation.
Application
Suitable for applications in a range of sectors including:
- Healthcare.
- Hospitals.
- Infection control.
Description
Non-thermostatic deck-mounted mixers with PBV and paired with a sequential lever operation.
Features and benefits:
- Demountable body and spout for disinfection.
- BioGuard outlet to prevent biofilm formation.
- New 38 mm sequential manual ceramic disc cartridge.
- Ceramic pressure balance valve with smooth hygienic surfaces.
- Brass port sleeves.
- Override feature for thermal disinfection.
- Temperature limiting device.
- Front of panel access to isolation valves, filters and water sampling point.
- Smooth, narrow bore, low water inventory waterways.
- Cool body.
- Suitable for high and low pressure installations (from 0.6–5 bar).
- Panel-mounted version available.
- HTM 04 01 compliant.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |
Length | 188 mm |
Width | 250 mm |
Height | 372 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/30 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N13/30 Washbasins N13/335 Washbasins |
SKU Code | A7905AA |
GTIN/EAN | 4015413355988 |
Specification data - Washbasin manual water supply sets
Classification data | |
Standards | To EN 200 and EN 248. |
Approvals | NSF Reg4 certified. |
Form | Deck-mounted basin mixer with non-thermostatic pressure-balanced valve. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 7 L/min at 3 bar. |
Water supply temperature (maximum) | User-controlled. |
Handle type | Medical. |
WorkingPressureRange | 0.2–5 bar. |
Net weight | 3.69 kg. |
Compliance | HTM 04 01 compliant. |
Sustainability data
Material | Brass |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
EPD
EPD - Dual control and thermostatic fittings
Literature
Markwik 21 SQ Tap
