MC Mezzanine Sections - Mezzanine Cee-section

Verified by manufacturer 24 days ago

MC140 x 62 x 1.4

Steadmans Variant:

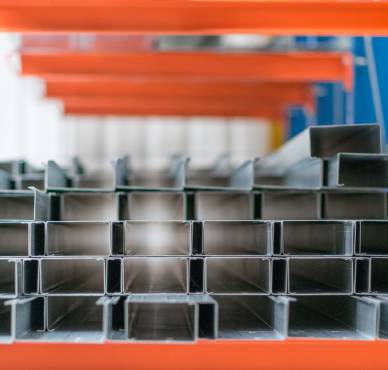

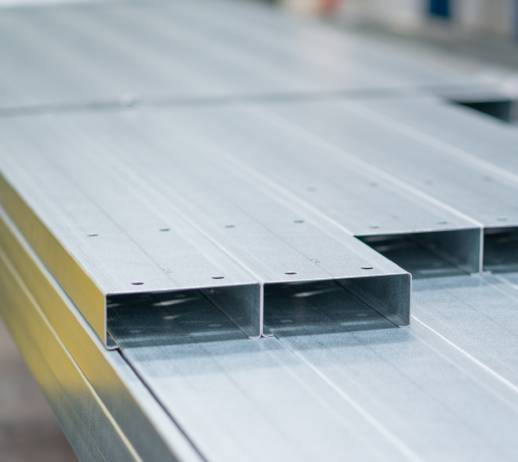

Lipped cee section profiles manufactured from pre-galvanized steel. Both inset and over-sail designs available

Jump to:
+44 (0)1697 478277 Website

Application

Suitable for mezzanine flooring applications.

Description

Mezzanine floor beams are lipped cee section profiles manufactured from pre-galvanized steel. The beams are supported from hot rolled sections and are designed to maximize the use of internal building space.


Features and benefits:

  • Manufactured from pre-galvanized steel, grade S450.
  • Minimum yield strength of 450 N/mm².
  • Designed to BS EN 1993-1-3:2006 using a combination of rational analysis and component testing.
  • The sections are manufactured in a process certified as meeting the requirements of ISO 9001:2015.
  • MC floor beams are generally supported from hot rolled sections. Decking is applied above the Cee sections to evenly distribute any loads applied.
  • Cee section range covers 140,170, 200, 240 and 300 mm deep sections that are available in a range of thicknesses.
  • A full range of accessories are available to complement the mezzanine beams.
  • Refer to manufacturer's literature for in depth information.
  • UKCA and CE certified.

General information

Color

Other

Finish

Galvanized

Material

Steel

Shape

Other

Length

Bespoke

Width

62 mm

70 mm

74 mm

95 mm

Height

140 mm

170 mm

200 mm

240 mm

300 mm

Warranty description

One year

Uniclass

Pr_20_76_51_21 Cold-formed galvanized steel sectionsPrimary

CAWS

G10/30 Cold-formed galvanized steel

G10/170 Cold-formed galvanized steel

Specification data - Cold-formed galvanized steel sections

Material

-

Standard

To BS EN 1993-1-3:2006.

Designation

S450.

Guidance for specification option:

Minimum yield strength, 450 N/mm.

Thickness

-

Manufacturer guidance

Available in a range of thicknesses. Consult manufacturer and insert requirements.

Coating finish

Galvanized.

Depth

140 mm.

Length

-

Manufacturer guidance

Sized to suit project requirements.

Flange

62 mm.

Gauge

1.4 mm.

Lipping

13 mm.

Weight

3.05 kg/m².

Area

3.81 cm².

Integral accessories

Cleats and restraints/ stud ties.

Guidance for specification option:

  • Standard mezzanine cleats are manufactured from 4 mm pre-hot dipped galvanized steel, S450 GD Z275 material with Ø18 mm holes for M16 bolts, grade 8.8.
  • Stud ties are manufactured from M16 studding and come with necessary nuts and washers. They are fitted at mid span location of the cee section and are fixed at the lower holes. They must be installed before the laying of any decking.
  • Refer to manufacturer literature for specific dimensions.

Accessories

Not required.

M16 Stud Ties.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
