Memento 2.0 Washbasins 4A226G
Verified by manufacturer 8 months ago
4A226G01
4A226G01

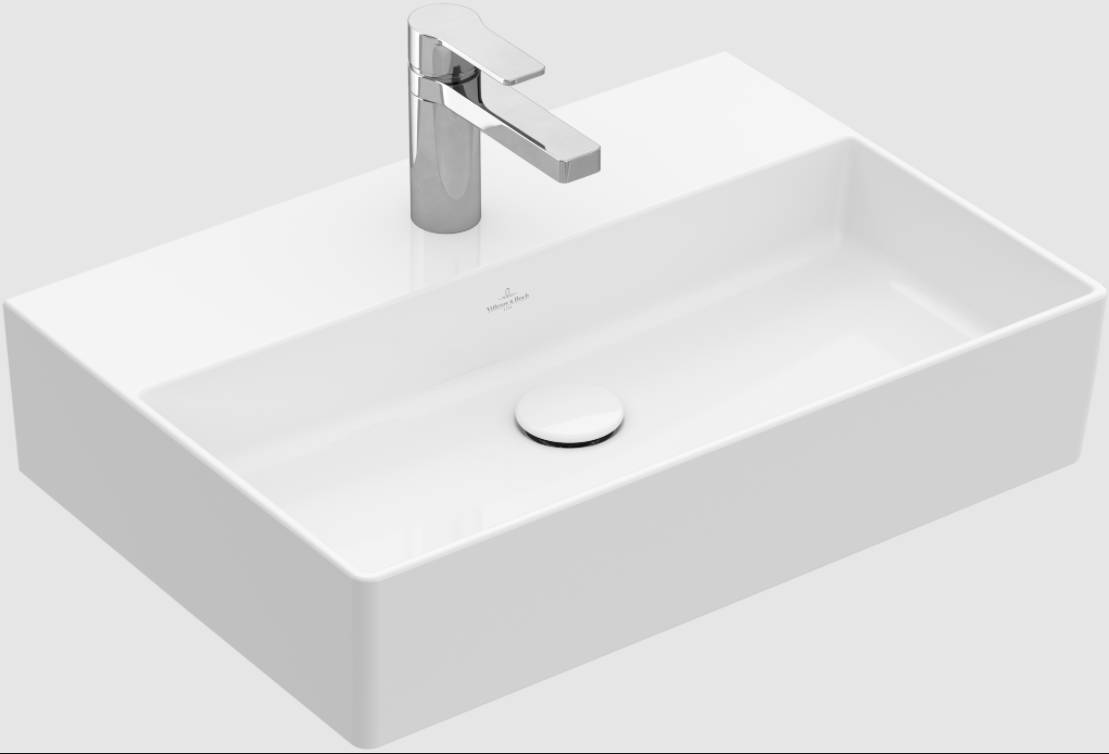

Rectangular washbasin.
Application
Wall mounted.
Description
Rectangular washbasin.
Features and benefits:
- Ground underside.
- TitanCeram.
- Incl. template.
- Complies with EN 31 and EN 14688.
- Optionally available: Outlet valve with ceramic cover.
General information
Color | White Grey Black |
Finish | Gloss Matt |
Material | Ceramic |
Shape | Rectangle |
Length | 600 mm |
Width | 420 mm |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Wall-hung washbasins
Standard | To EN 31 and EN 14688. |
Form | Wall-hung wash basin. |
Connecting dimensions | To BS EN 31. |
Materials | |
Body | Sanitary ceramic. |
Finish and colour | White alpin, gloss. |
Size | 600 x 420 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred.Guidance for specification option: Suitable for 3-hole tap fittings, central tap hole punched out. |
Overflow | None.Guidance for specification option: With overflow. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Not required.Closable valve 6810 00.Easy Access siphon 9219 88.Push-to-open valve 8L03 34. |
Weight | 17.7 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 3Ds Max | - | 1 |
 Revit | - | 1 |
 ARCHICAD | - | 1 |
 IFC | - | 1 |
 SketchUp | - | 1 |
 OBJ | - | 1 |
