Verified by manufacturer 8 months ago
4A228301

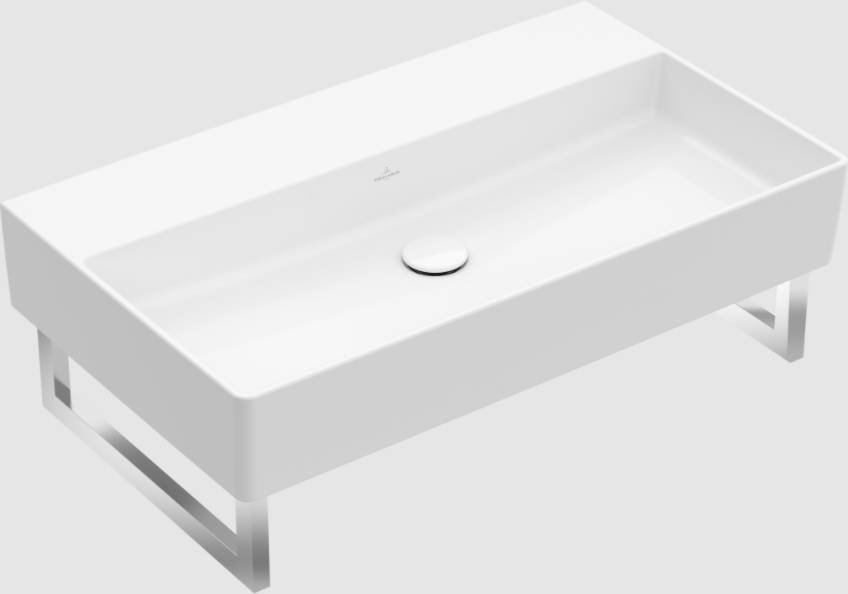

Rectangular washbasin.
Wall mounted.
Rectangular washbasin.
Features and benefits:
Color | White Grey Black |
Finish | Gloss Matt |
Material | Ceramic |
Shape | Rectangle |
Length | 800 mm |
Width | 470 mm |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Standard | To EN 31 and EN 14688. |
Form | Wall-hung wash basin. |
Connecting dimensions | To BS EN 31. |
Materials | |
Body | Sanitary ceramic. |
Finish and colour | White alpin, gloss. |
Size | 800 x 470 mm. |
Water supply, overflow and waste holes | |
Water supply | No tap holes.Guidance for specification option: Without tap hole, when using a wall-mounted tap fitting, it is recommend to have a projection of at least 205 mm. |
Overflow | None.Guidance for specification option: Without overflow. Please note: unclosable outlet valve must be used with models without overflow. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Not required.Unclosable outlet valve 6808 00.Unclosable outlet valve 6809 00.Unclosable outlet valve 8798 90.ViFlow concealed overflow 9223 77. |
Weight | 24.9 kg. |
