Memento 2.0 Washbasins 4A22C4
Verified by manufacturer 8 months ago
4A22C401
4A22C401

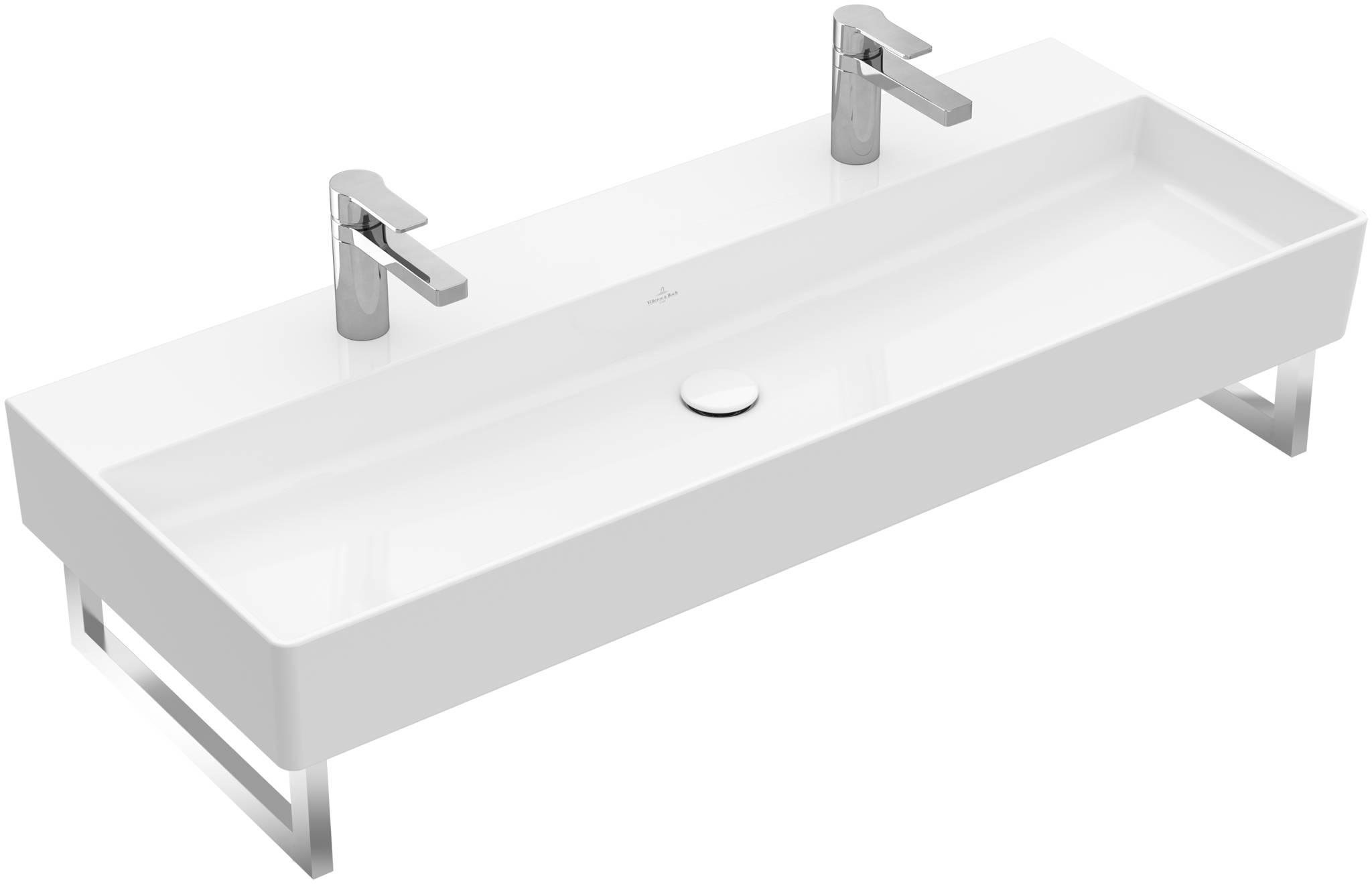

Rectangular washbasin.
Description
Rectangular washbasin.
Features and benefits:
- TitanCeram.
- Optionally available: Outlet valve with ceramic cover.
- Complies to EN 31 and EN 14688.
- Towel holder (not included in scope of delivery): side installation (mountable: 2 pc.).
General information
Color | White |
Finish | Gloss Matt |
Material | Ceramic |
Shape | Rectangle |
Length | 1200 mm |
Width | 470 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Wall-hung washbasins
Standard | To EN 31 and EN 14688. |
Form | Wall-hung wash basin. |
Materials | |
Body | Ceramic. |
Finish and colour | White alpin, gloss. |
Size | 1200 x 470 mm. |
Water supply, overflow and waste holes | |
Water supply | Two tap holes.Guidance for specification option: Suitable for two 1-hole tap fittings, tap holes punched out, with 2 single-lever mixers and turn-knob operation or in conjunction with toggle valve, as well as push-open valve, please do not exceed a flow rate of max. 7.5 l/min per tap fitting. |
Overflow | Rear overflow hole. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Closable valve 6810 00, Easy Access siphon 9219 88; Push-to-open valve 8L03 34. |
Weight | 34.65 kg. |
Accessories | None. Outlet valve with ceramic cover. Towel holder. Guidance for specification option: Not included in scope of delivery: side installation (mountable: 2 pc). |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 OBJ | - | 1 |
 3Ds Max | - | 1 |
 SketchUp | - | 1 |
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 Revit | - | 1 |
