Metal Kissing Gate
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type

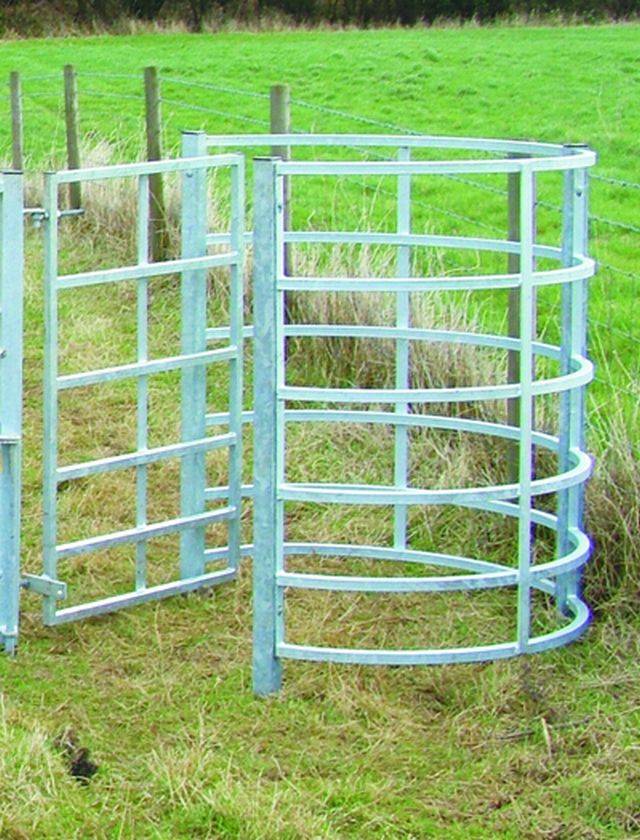

Metal galvanized kissing gate.
Application
For rights of way, farms, fields and rural properties.
Description
Metal galvanized gate manufactured from hot-dip galvanized steel, with 25 x 25 mm rectangular hollow section (RHS) with four posts 50 x 50 mm RHS including adjustable bottom hinge which allows the gate to swing shut either way. Supplied in three sections plus posts and location bars for below ground.
Features and benefits:
- Self-closing gate.
- Galvanized steel for extra-long life.
- Supplied partly assembled plus fixings.
- Virtually maintenance-free once installed.
- 25-year guarantee.
General information
Color | Silver Other Black |
Finish | Galvanized Powder-coated |
Material | Steel |
Length | 960 mm |
Width | 1520 mm |
Height | 1170 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | Q40/40 Steel Q40/45 Gates Q40/530 Kissing gates and posts Q40/570 Gates |
Specification data - Carbon steel kissing gates
Standard | To BS 5709:2018. |
Configuration | Curved. |
Height | 1170 mm. |
Internal dimensions (nominal) | 1520 x 960 mm.Guidance for specification option: Width x front-to-back. |
Gate leaves | Carbon steel gate, six rails.Guidance for specification option: 25 x 25 mm RHS. |
Hardware | |
Hinges | Manufacturer's standard. |
Securing | Not required.RADAR padlock with three keys (284550BM). |
Operating | Self-closing. |
Finish as delivered | |
Applied finish | Hot-dip galvanized.Guidance for specification option: Standard; to BS EN 1461. Powder-coated.Guidance for specification option: To BS EN 13438; insert requirements. |
Posts | 50 x 50 mm RHS. Guidance for specification option: Manufacturer recommends that posts be set in concrete. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
