Metal Trunking

Name: Metal Trunking
Brand: Marshall-Tufflex Ltd
SKU: vaDCa6hZe7ZZDjvaLrHy7m

Verified by manufacturer 1 day ago

50 x 50 mm

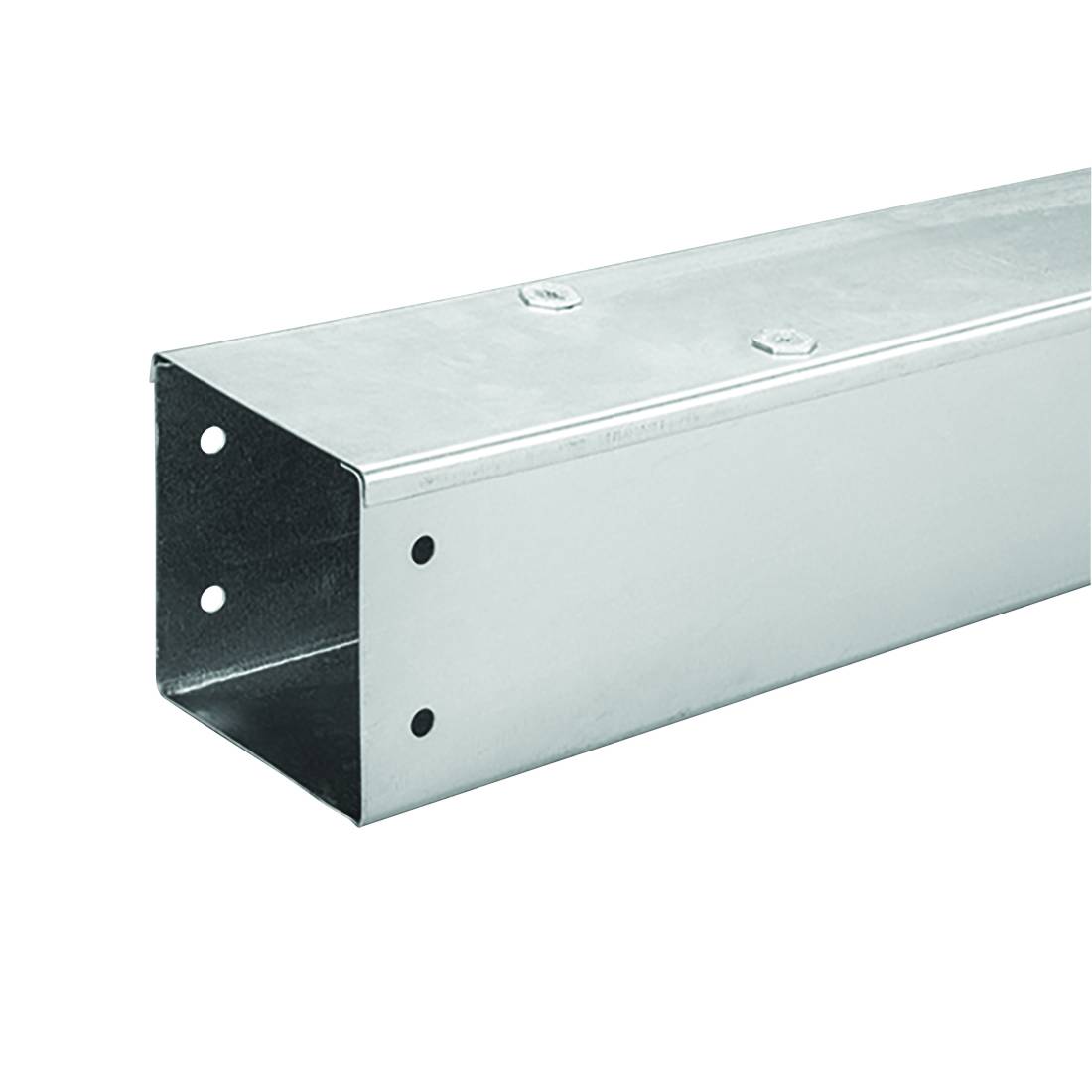

Metal trunking offers robust protection for cabling in various industrial and commercial applications. Rated to IP4X and featuring hexagonal turnbuckles for quick and easy installation.

Jump to:

+44 (0)1424 856600 Website

Application

Suitable for use in a variety of settings, including:

Manufacturing plants.
Warehouses.
Laboratories.
Other industrial facilities.

Description

Metal trunking offers robust protection for cabling in various industrial and commercial applications. Rated to IP4X and featuring hexagonal turnbuckles for quick and easy installation.

Features and benefits:

Supplied in 3 m lengths.
A wide selection of sizes between 50 x 50 mm to 300 x 300 mm.
Lids secured via hexagonal turnbuckles with screw locators for quick and easy installation.
Removable lids for easy modification and to provide cable access via the top or side.
IP4X rated.
Single, two or three compartment options.
Lid fixings and couplers are included as standard.

General information

Color	Silver
Finish	Galvanized
Material	Steel
Shape	Square Rectangle
Length	3000 mm
Width	50 mm 75 mm 100 mm 150 mm
Height	50 mm 75 mm 100 mm 150 mm

Uniclass	Pr_65_70_11_96 Wall and ceiling-mounted cable trunking and ductingPrimary
CAWS	V90/350 Cable trunking and cable ducting for wall and ceiling mounting V90/350 Cable trunking and cable ducting for wall and ceiling mounting V90/350 Cable trunking and cable ducting for wall and ceiling mounting

Specification data - Wall and ceiling-mounted cable trunking and ducting

Classification data
Standards	To BS EN 50085-1, BS EN 50085-2-1 and BS 7671.
Installation position	Surface-mounted on the ceiling. Surface-mounted on the wall.
Protection by enclosure	-
Protection against ingress of solid objects (minimum)	To BS EN 60529, IP4X.
Sizes	50 x 50 mm.
Compartments	One. Two.
Accessories and fittings	-

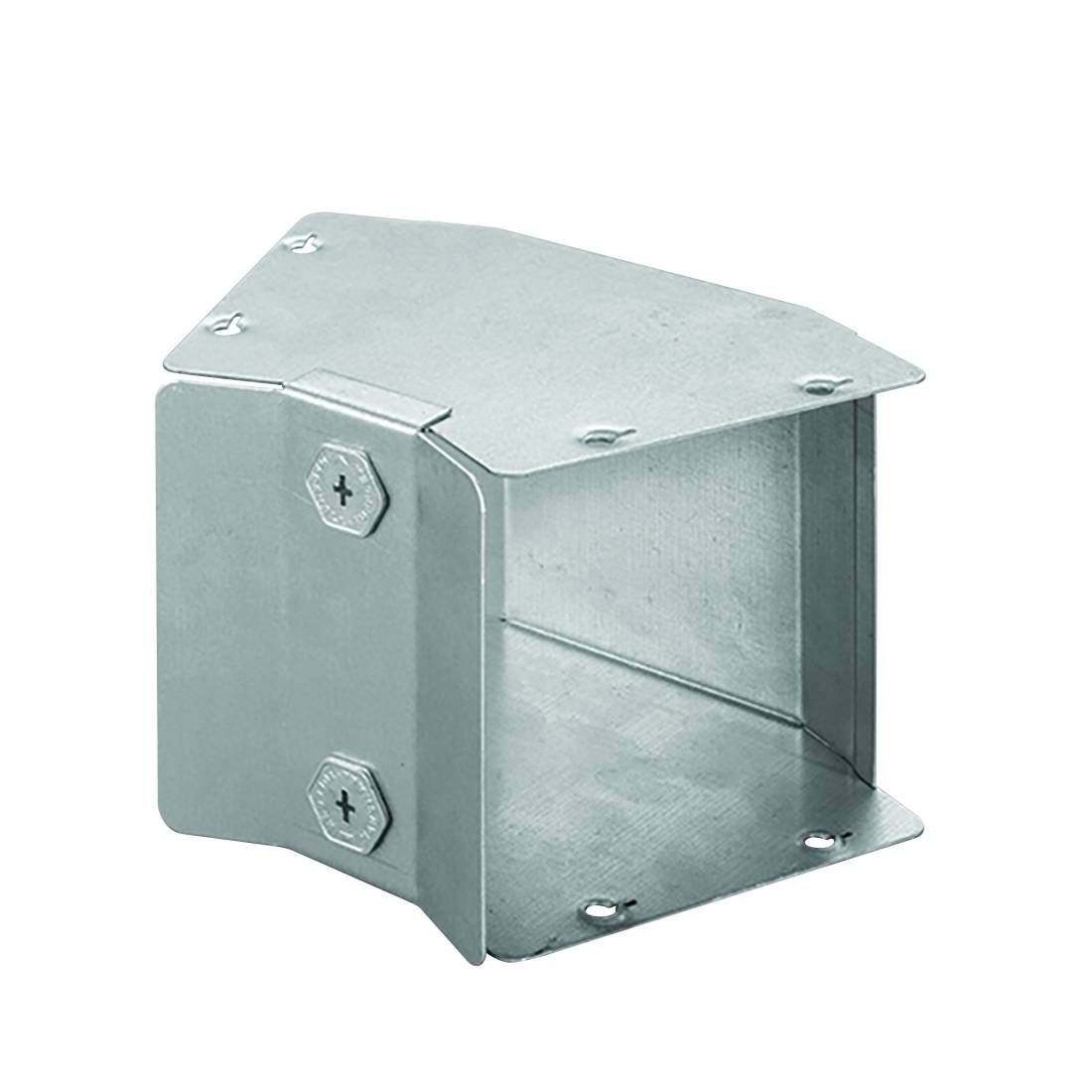

Types	Not required. 90° gusset bend top lid. 45° gusset bend top lid. 90° gusset bend inside lid. 45° gusset bend inside lid. 90° gusset bend outside lid. 45° gusset bend outside lid. Gusset tee top lid. Gusset tee inside lid. Gusset tee outside lid. End cap. Trunking hanger. U shaped coupler. Sharp bend top lid. Shap bend inside lid. Sharp bend outside lid. Sharp tee top lid. Intersection box. Reducer. Earth bounding link. Single socket plate. Double socket plate. Sleeve coupler. Cable retainer. Flange coupler. IP4X cover strap. Trunkng lid. Manufacturer guidance Consult manufacturer for more details on sizes and insert requirements.
Material and finish	To BS EN 10346, continuously hot dipped zinc coated low carbon steel, pre-galvanized.
Third-party certification	CE and UKCA complaint.
