Metalclad Distribution Substation - MDS
Verified by manufacturer 28 days ago
1000 kVA
1000 kVA

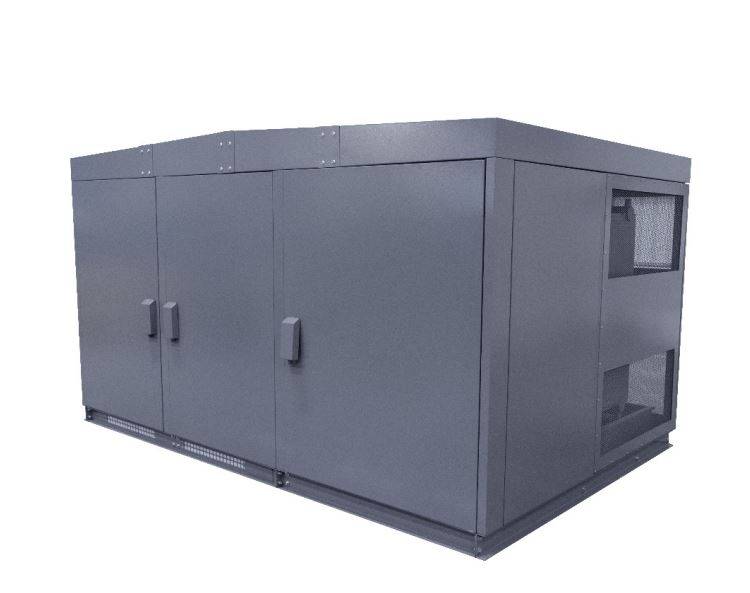

Three-phase distribution pre-fabricated substation.
Application
Outdoor 12 kV MV-LV Substation.
Performance up to 12 kV: 200 kVA to 2000 kVA.
Description
Three-phase distribution pre-fabricated substation.
Features and benefits:
- Safe and fully compliant to the latest IEC standards: Fully type-tested design, factory assembled and compliant to IEC 62271-202.
- Efficiency rating: Tier 2.
- Single-source solution utilizing Schneider Electric switchgear, assembled and tested at Schneider Electric’s UK medium voltage facility.
- Single point of contact and one-stop-shop ordering: providing peace of mind, whilst eliminating further project management cost.
- Reduced footprint: provides more valuable square footage for other onsite processes.
- Environmental benefits: with integrated complete fluid bunding/ catchment, reduced civil works and materials.
- Versatile: Multiple standard configurations available with a choice of ratings from 200 kVA to 2000 kVA.
- Save time and cost: Pre-fabricated, single-lift solution delivered complete and ready for commissioning.
General information
Color | Grey Other |
Finish | Painted Powder-coated |
Material | Stainless steel |
Shape | Rectangle |
Length | 2850 mm 3000 mm 3800 mm 3750 mm |
Width | 1700 mm 2000 mm 2400 mm 2800 mm Manufacturer guidanceDepth. |
Height | 2100 mm |
Warranty description | 18 months |
Uniclass | Ss_70_20_25_65 Prefabricated distribution substation systems Primary |
Specification data - Prefabricated distribution substation systems
Description | Metalclad distribution substation. |
System manufacturer | Schneider Electric Ltd. |
System reference | Metalclad Distribution Substation - MDS. |
Standards | To IEC 62271-202. |
Products | Distribution transformers. |

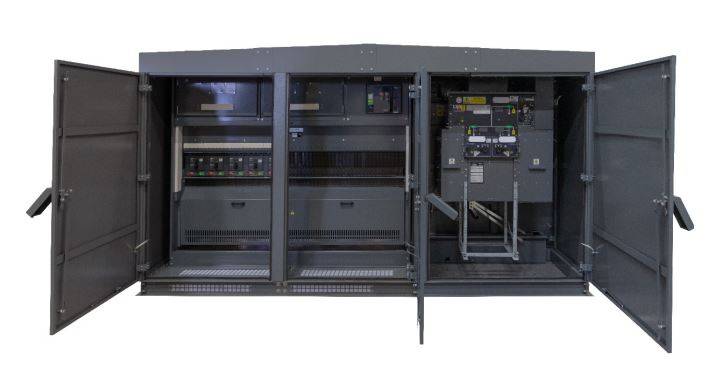

Configuration | Adjacent sides substation arrangement. Guidance for specification option: HV and LV flanges on adjacent sides of transformer tank. In-line substation arrangement. Guidance for specification option: HV and LV flanges on opposite narrow end of tank – “in line”. Unit substation arrangement. Guidance for specification option: HV and LV flanges on same side of transformer tank. Manufacturer guidanceDependent upon substation configuration, the substation has one/ two/ three access doors to the HV and LV compartments which are held by two-point latching (top and bottom). The latching handle is padlockable and covered by a hinged flap which is also padlockable. In addition to the front doors, the enclosure has side doors which are designed to hinge outwards during installation to ensure good access for cable jointers. After installation, the side doors are held closed by internal bolts. Access for operation, maintenance and the connection of additional LV cables is from the front doors only. |
Tank type | Free-breathing. Hermetically sealed. |
Power | Up to 12 kV. |
ApparentPower | 1000 kVA. |
Overall sound power level | 59 dB(A). |
Load | Load loss: 7600 W. |
Frequency | 50 Hz. |
Ingress protection (IP) rating | IP54. Guidance for specification option:
|
Colour | Dark Grey. Guidance for specification option: Colour ref 632 or BS 381C. Other. Manufacturer guidanceTo ISO 12944, Category C4 Very High Durability paint. |
Accessories | Not required. Remote terminal unit. AC/ DC convertors. Power factor correction equipment. Harmonic control. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel |
Manufacturing plant location | |
Expected Life | 20 year |
