MF Suspended Ceilings - Plasterboard Suspended Ceiling System

Verified by manufacturer 11 months ago

Protektor Group UK

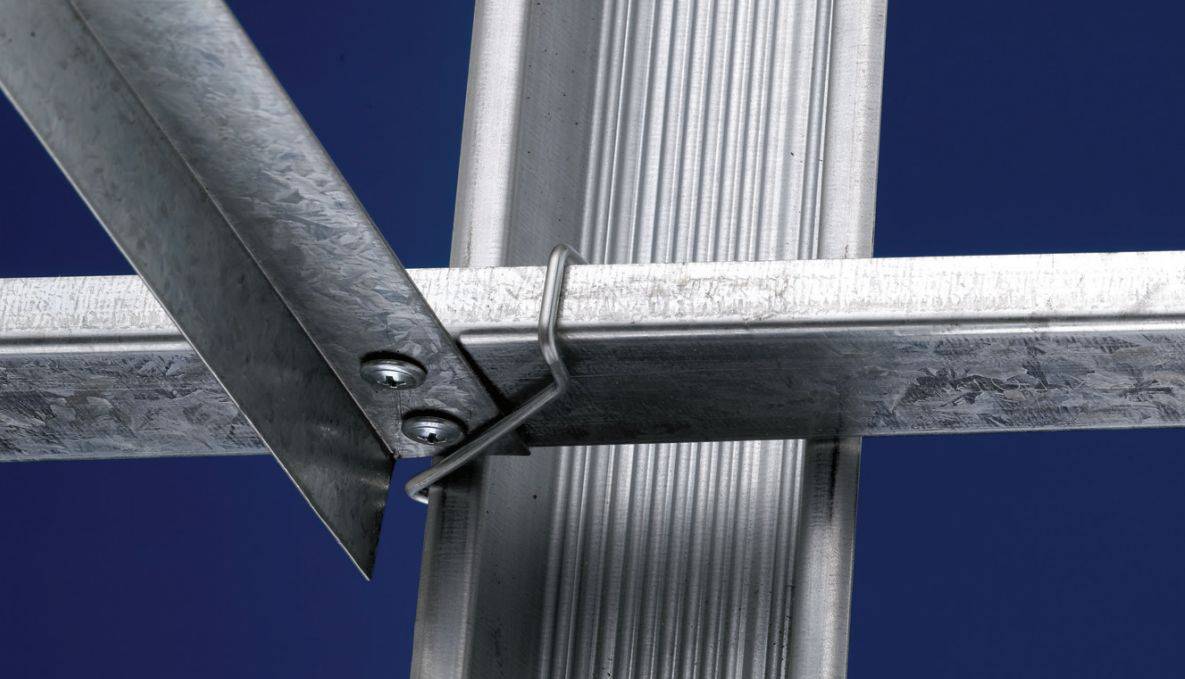

A plasterboard suspended ceiling system is designed for use in most commercial applications.

Jump to:
07769270193 Website

Application

Designed for use in most commercial applications. Suitable for domestic/ residential applications.

Description

A plasterboard suspended ceiling system is designed for use in most commercial applications. Whilst being an economical, cost-effective system it still retains the quality of manufacture associated with the Protektor brand.

All components meet or surpass current British and European standards.


Performance:

The choice of board will be dependent on the performance required for both fire and sound insulation. Reference should be made to the National Building Regulations Approved Document and Building Standards (Scotland) Regulations before commencement of works. Consult board manufacturer's datasheet for further detail.

General information

Color

Other

Finish

Galvanized

Material

Carbon steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_30_25_10_35 Gypsum board suspended ceiling systemsPrimary

CAWS

K10/220 Proprietary suspended ceiling system

K10/50 Suspended ceiling system on metal framing

Specification data - Gypsum board suspended ceiling systems

System performance

Guidance for specification option:

Insert requirements.

Suspension grid

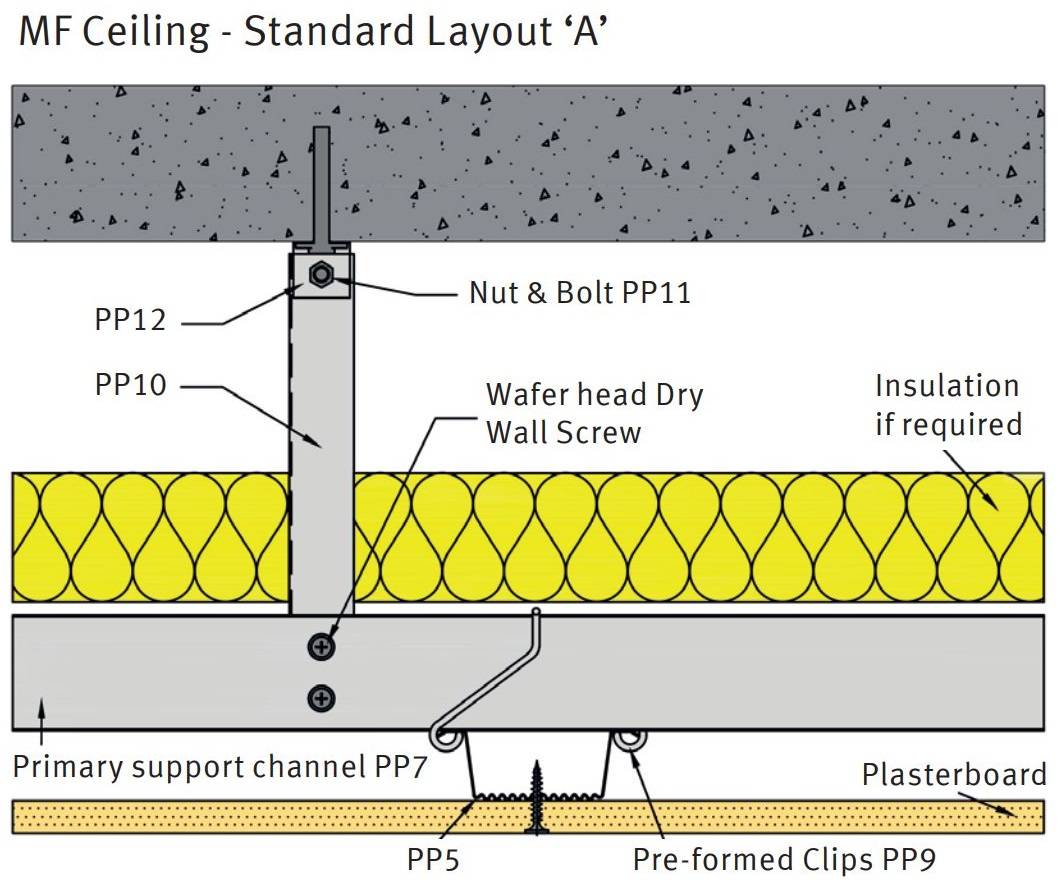

MF ceiling, standard layout 'A'.

Guidance for specification option:

Manufacturer's standard. See manufacturer's literature for illustration etc.

Comprises components:

  • PP5 furring channels;
  • PP9 pre-formed connecting clips;
  • PP7 primary channel with wafer head drywall screws;
  • PP10 angle profile;
  • PP11 MF nuts & bolts;
  • PP12 cleats/ brackets.


Insulation (if required) and plasterboard to be specified separately below.

MF ceiling, standard layout 'B'.

Guidance for specification option:

Manufacturer's standard. See manufacturer's literature for illustration etc.

Comprises components:

  • PP5 furring channels;
  • PP7 primary channel with wafer head drywall screws;
  • PP9 pre-formed connecting clips;
  • PP10 angle profile;
  • PP11 MF nuts & bolts;
  • PP12 cleats/ brackets.


Insulation (if required) and plasterboard to be specified separately below.

Other.

Guidance for specification option:

Insert requirements; available components:

  • PP4 furring channels;
  • PP5 furring channels;
  • PP6 edge channels;
  • PP7 primary channel;
  • PP8 strap hanger;
  • PP9 pre-formed connecting clips;
  • PP10 angle profile;
  • PP45 angle profile;
  • 5161 angle profile;
  • PP11 MF nuts & bolts;
  • PP12 cleats/ brackets;
  • PP13 acoustic hanger;
  • PP14 acoustic hanger;
  • PP15 primary channel;
  • 6239 steel sharp point framing screws;
  • 6236 steel jack point framing screws;
  • 6260 steel ceiling dowels.

Manufacturer guidance

See manufacturer's literature for guidelines on centres based on maximum load (including board).


Protektor MF metal components are non-combustible when tested in accordance with BS 476 Part 4:1970.

Suspension grid fasteners

Guidance for specification option:

Insert requirements to suit substrate.

Insulation

Required.

Guidance for specification option:

Insert requirements to suit required performance.

Not required.

Barriers in ceiling void

-

Fire barriers

Required.

Guidance for specification option:

Insert requirements to suit required performance.

Not required.

Acoustic barriers

Required.

Guidance for specification option:

Insert requirements to suit required performance.

Not required.

Linings

Guidance for specification option:

Insert requirements or specify in separate clause.

Fasteners

Plasterboard screws

Guidance for specification option:

Note: self-drilling drywall pan head screws to be used in domestic/ residential applications.

Joint treatment

Guidance for specification option:

Insert requirements.

Finish

Not required

Finish plasters

Guidance for specification option:

Insert requirements.

System accessories

None.

Acoustic sealant.

Guidance for specification option:

May be required to meet regulations. Insert details.

Intumescent sealant.

Guidance for specification option:

May be required to meet regulations. Insert details.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %
