Micro - Steel open grating balustrade
Verified by manufacturer 19 hours ago
Micro-34
Micro-34
A steel grating with horizontal flat bars 15, 25 or 34 mm apart, providing a distinctive lateral aesthetic for cladding or security screens.
Application
Micro-15/ Micro-25:

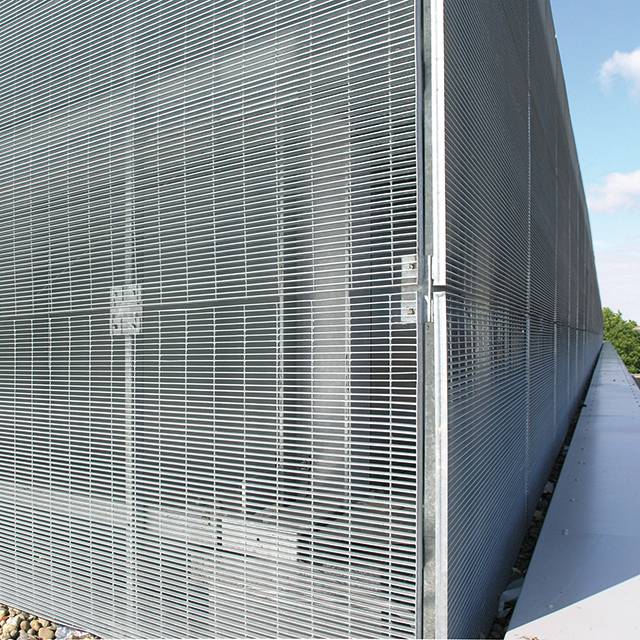

- Suitable for ground or roof-top plant housing, cladding or any architectural grating project.
Micro-34:
- Suitable for balconies, balustrades, ground or roof-top plant housing, cladding or any architectural grating project.
Description
The Micro range is characterized by closely spaced horizontal flat bars, which are then fused to round vertical bars. The narrow spacing between the flat bars makes it a particularly good choice for ground or roof-top plant housing, cladding or any grating project where some degree of visual screening is required.
Framed panels are made to custom-sizes and provide security, natural daylight and ventilation.
There are three products within the Micro range:
- Micro-15 with an aperture size (w x h): 76 x 15 mm.
- Micro-25 with an aperture size (w x h): 76 x 25 mm aperture.
- Micro-34 with an aperture size (w x h): 100 x 34 mm.
Features and benefits:
- Standard flat bar is 25 mm deep, but a wider section can be supplied for a more distinctive appearance and increased level of screening.
- Panels and ancillary steelwork can be supplied galvanized only or galvanized and powder coated to any RAL colour.
General information
Color | Grey Beige Black Blue Bronze |
Finish | Galvanized Guidance for specification option: Hot-dipped to BS EN ISO 1461. Powder-coated Guidance for specification option: Hot-dip galvanized and polyester powder coated to BS EN ISO 1461 and BS EN 13438. |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal L10/60 Security L10/690 Security L30/55 Proprietary balustrades L30/560 Proprietary balustrades |
Product range |
Specification data - Balustrade and guarding systems
Panel Type | Micro-34. |
Panel size | 4000 x 1543 mm (maximum). Guidance for specification option:
|
Other requirements | Not required. Shaped to suit non-uniform openings. Rolled to a radius. Manufacturer guidanceThe integrity of the raw material allows it to be cut or shaped to suit non-uniform openings or rolled to a radius. |
Fixing | Through holes in the framing bar. Through plates welded behind the horizontal flat bars. Through plates welded between the horizontal flat bars. Manufacturer guidanceAlternative fixing methods with a minimum of four fixing points per panel. |
Finish: | Hot-dip galvanized. Guidance for specification option: To BS EN ISO 1461. Hot-dip galvanized and polyester powder coated, RAL. Guidance for specification option:
|
Framing | Framed both sides with flat bars. |
Orientation | Round bars set to the inside of the enclosed area. |
Bearing bar | 25 x 3 mm. |
Aperture (w x h) | 76 x 34 mm. |
System accessories | Not required. Secondary support steelwork. Guidance for specification option: Designed and supplied as required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.42 kg CO₂ eq/kg Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 56 % |
Literature
Gratings for Cladding, Screening and Balustrades
Case studies
The Hydro: Infill panels for the balustrade were supplied by Lang+Fulton, made from Micro-34 architectural grating.
