Mid Bar Collapsible Gate - Goods lift car door
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type
dhf certificate
Certificate type

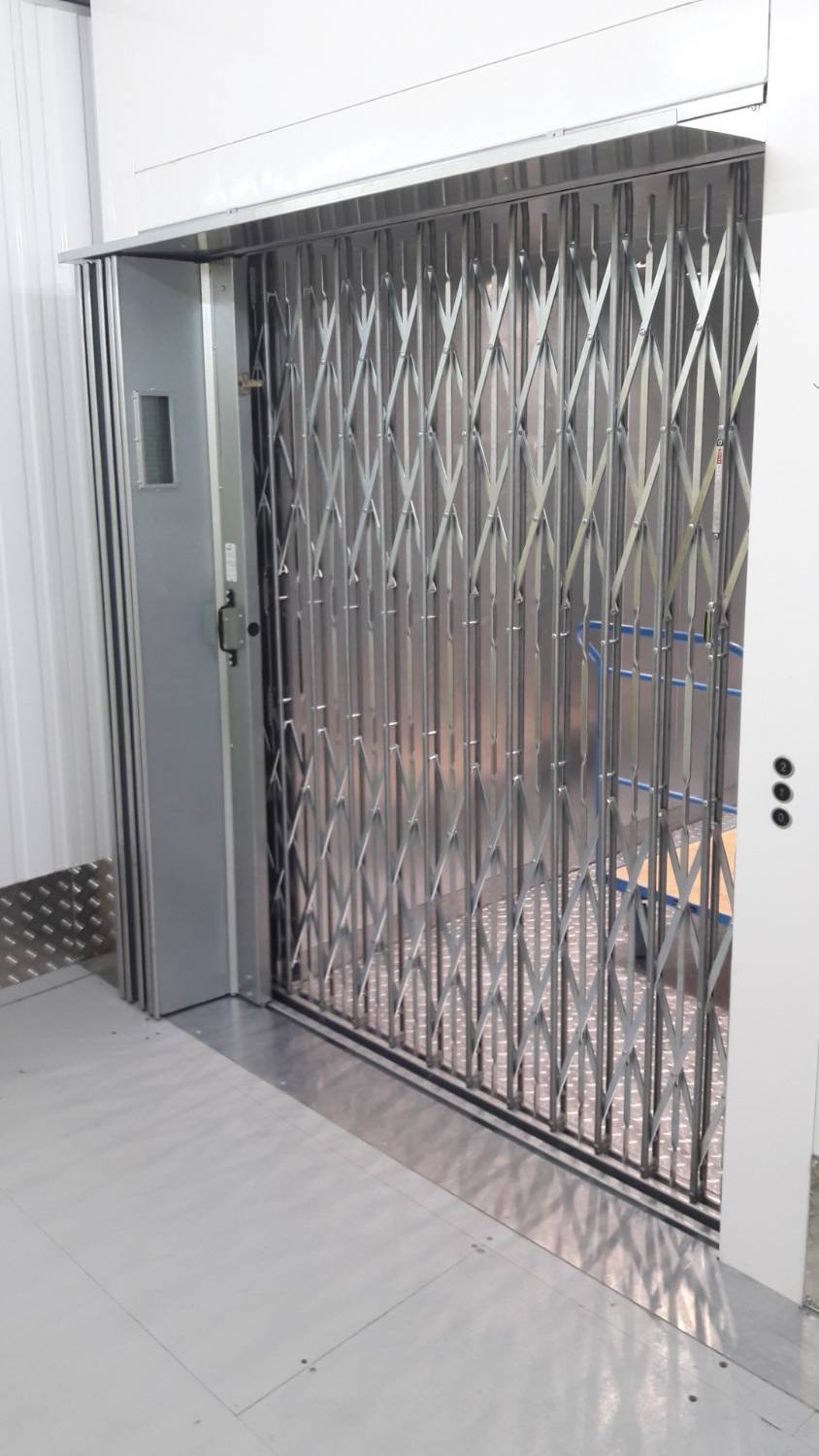

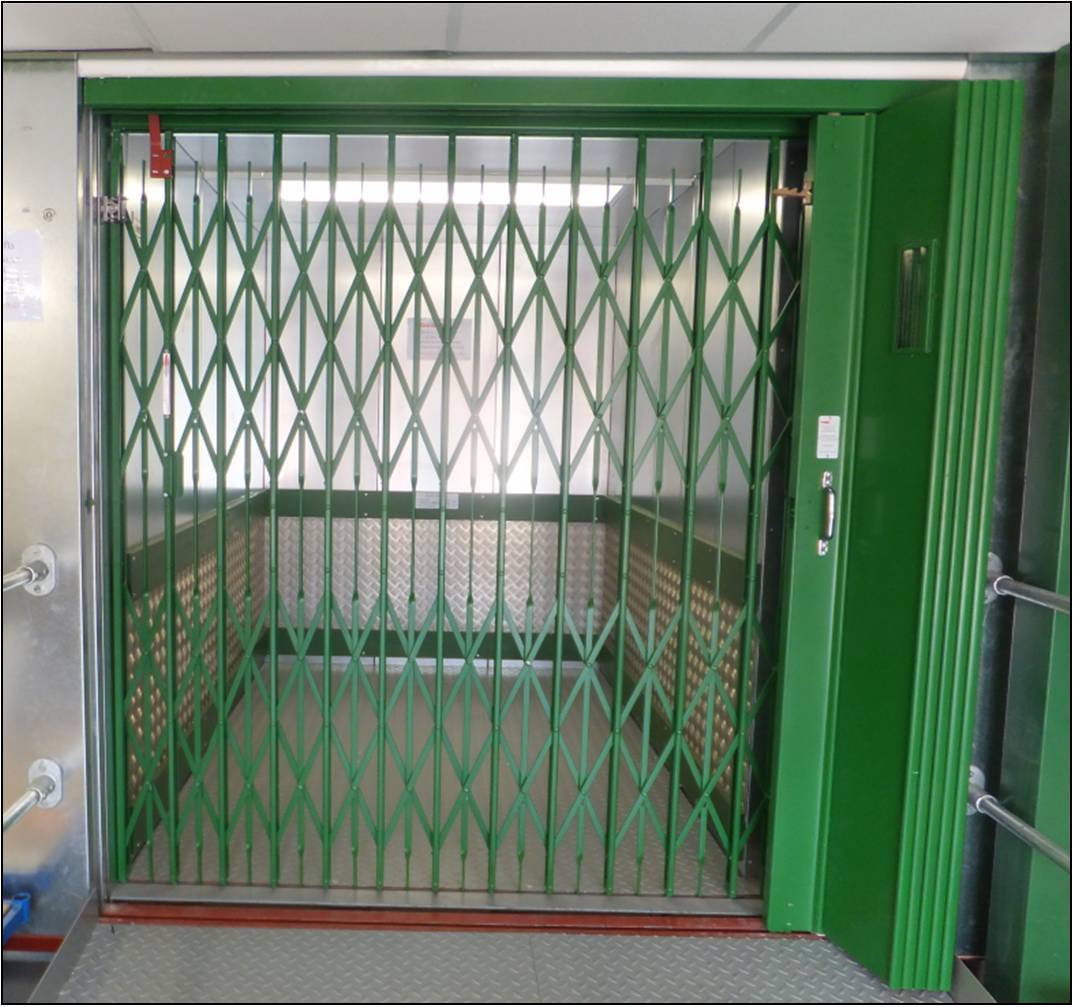

A collapsible goods lift car gate.
Application
Because of it’s compact nature and inherent strength the Mid Bar Collapsible Gate or ‘FMB Gate’ is specified for use on goods lifts on projects throughout the UK and export market on applications such as:-
Supermarkets.
Warehouses.
Storage facilities.
Retail outlets.
Key Attributes:
Perfect for goods lift car doors.
Heavy duty construction.
Space saving, compact folding arrangement.
Bespoke construction to suit individual openings.
Can be used in conjunction with the Eurofold and Superior lift landing doors.
Description
Bolton Gate Company has been manufacturing lift gates for over seventy years and has supplied thousands of mid bar gates on goods lifts throughout the world.
Mid Bar Collapsible Gates are renowned for their strength and reliability which are features that rank highly when considering the heavy usage that most goods lifts are subjected to.
All the gates are bespoke and custom built to suit the individual opening.
The compact bunching action ensures that they require very little space relative to the size of the opening and headroom requirements are minimal.
Operation
The Mid Bar Collapsible Gate is a manually operated gate system. Despite its robust construction, this heavy duty gate is easily pulled or pushed into the open and closed positions with the minimum of effort.
Gate Frame
The gates are constructed from 16mm double channel vertical steel pickets which are then connected by 6mm thick solid lattice bars working on a lazy tongue principal.
A full height mid bar is fitted between each set of pickets to reduce the gaps in line with lift legislation.
Leading Edge
The front picket assembly acts as the standard gate leading edge.
A reinforcing channel supplements the gate construction and also provides a mounting point when a holdback magnet device is required.
The leading picket is also the mounting point for the optional car gate contact switch.
A No 1 pull handle is mounted to the second picket on the car side and a No 3 finger handle is mounted on the landing side.
Bottom Track
Malleable cast bottom guide pieces are attached to the base of each picket and run within a 26 x 26mm recessed galvanised steel bottom track.
Top Track
As standard, the gate is provided with a 90mm box type top track which, due to the intermediate fixing arrangement, supports the weight of the gate across the full span of the opening.
The alternative option is a bar top track which is fixed at each end. This bar is rounded on the upper edge to facilitate operation.
Finish
Galvanised as standard.
Maximum Size
8000mm wide x 6000mm high
Weight
Varies with opening size but approximately 32kg/m².
Options
· Car Gate Contact Switch complete with striker arm.
· Polyester powder coat finish to a range of RAL Colours.
· Milled guides to suit narrower / shallower existing bottom track.
· Bar Type Top Track with Rounded Edge (O.R.E).
General information
Color | Other Guidance for specification option: Galvanized as standard. A polyester powder-coat finish can be provided to a single standard RAL colour. |
Finish | Galvanized Guidance for specification option: Standard. Powder-coated Guidance for specification option: Optional. |
Material | Steel |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke Guidance for specification option: The gates are bespoke manufactured to suit the project requirements. The maximum size is 8000mm wide x 6000mm high. |
Height | Bespoke Guidance for specification option: The gates are bespoke manufactured to suit the project requirements. The maximum size is 8000mm wide x 6000mm high. |
Warranty description | One year |
Uniclass | |
CAWS | P21/350 Door track and running gear L20/612 Roller grilles L20/620 Collapsible gates/ grilles L20/60 Doors |
Product range |
Specification data - Collapsible gate and grille sets
Arrangement | Top-hung.Guidance for specification option:
Bar type top track with rounded edge (O.R.E.)Guidance for specification option:
|
Gate leaf | |
Type | Manual. |
Finish | Galvanized steel.Guidance for specification option: Standard. Polyester-powder coated, RAL.Guidance for specification option: Optional. |
Hardware | Pull handles.Guidance for specification option: Mounted to the both the car and landing side. |
Accessories | Not required.Car gate contact switch complete with striker arm.Milled guides to suit narrower/ shallower existing bottom track. |
FrameMaterial | Frame: Double channel vertical pickets (16 mm thick), solid steel horizontal lattice bars (6 mm thick), galvanized steel. Guidance for specification option:
|
Leading edge fittings | Front picket assembly, No 1 pull handle, No 3 finger handle. Guidance for specification option:
|
Dimensions | 8000 x 6000 mm (maximum). Guidance for specification option: W x H, insert requirement. |
Weight | 32 kg/m² (approximate). Guidance for specification option: Varies with opening size. |
Track system | Galvanized steel channel, 90 mm deep box section top track, 26 x 26 mm recessed bottom track. Guidance for specification option:
Galvanized steel bar top track, 90 mm deep box section top track, 26 x 26 mm recessed bottom track. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Manufacturing plant location | |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 25 year |
