Milan bicycle shelter

Verified by manufacturer 7 months ago

529255 - Without cladding

Procity Variant:

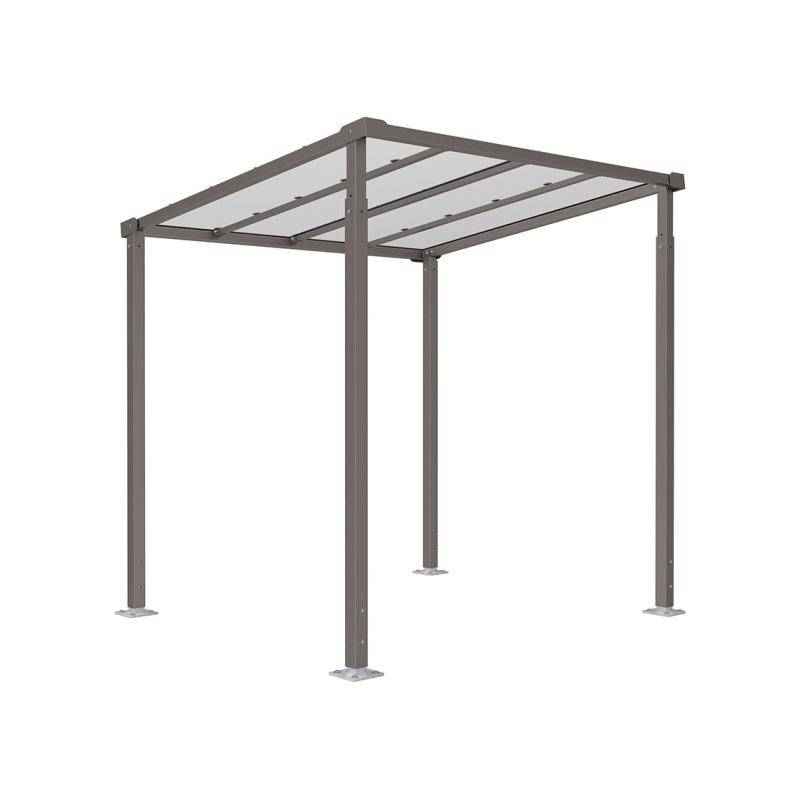

Flat roof bicycle shelter made from a steel frame and covered with polycarbonate dome roof.

Jump to:
BOS
+44(0)1528488444 Website

Application

Suitable for providing a sheltered area for bicycles and motor scooters in a range of environments. Shelters are frequently installed near public transportation hubs, workplaces and office buildings, educational institutions, retail centers and shopping malls.

Description

A classic design with a modern style


Features and benefits:


  • In the initial unit parking capacity up to 6 bicycles for a module (depending on the bicycle stand or bicycle rack chosen).

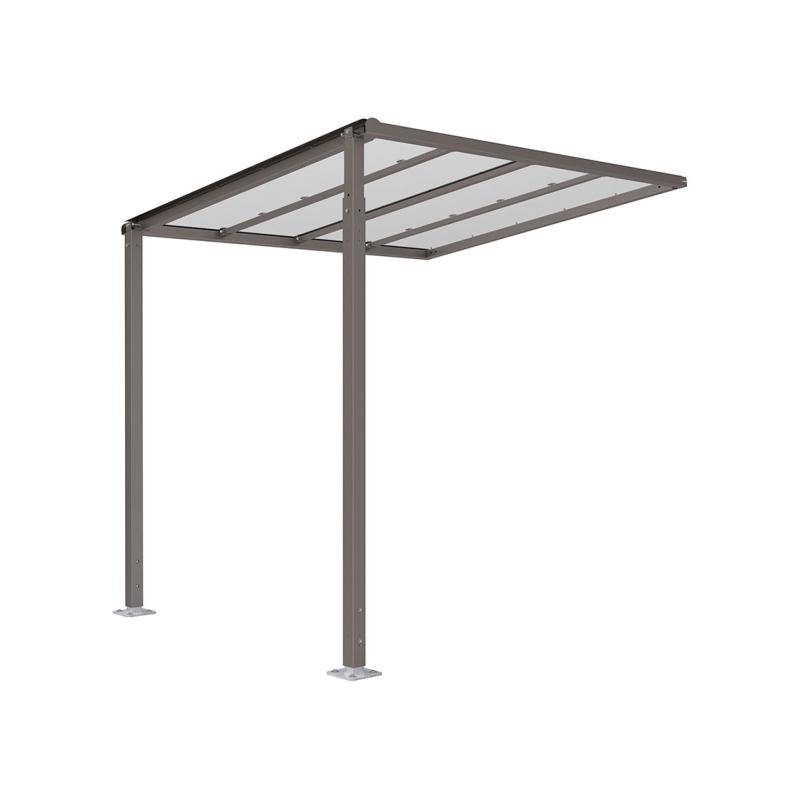

  • Multiple extension units 2500 mm can be added to create the size of shelter required.
  • Structure in steel tubes 80 x 80 mm.
  • Roof has 60 x 60 mm steel-tube crossbars with anti-UV-treated 10 mm cellular polycarbonate panels.
  • Installation on galvanised base plates, height adjustable legs, expansion bolts included.
  • A range of finishes available, galvanized and painted in a range of colours. Can be single-colour or two-colour.
  • Rear and side cladding aluminium profile frame and anti-UV-treated 10 mm cellular polycarbonate.
  • Milan bicycle shelter - Bicycle shelters - Bicycle and motorbike solutions - Procity UK

General information

Color

Grey

White

Blue

Red

Black

Show more

Finish

Galvanized

Painted

Material

Steel

Polycarbonate

Shape

Rectangle

Length

2434 mm

Manufacturer guidance

Depth

Width

2500 mm

Height

2880 mm

Warranty description

Ten year

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/340 Cycle shelter

B91/385 Shelter

B91/330 Canopy

Specification data - Open-sided shelters

Shelter description

Bicycle shelter.

Dimensions

-

Plan size

2520 x 2881 mm.

Height

2434 mm.

Frame

-

Material

Steel tube.

Finish

Galvanized.

Galvanized and painted

Guidance for specification option:

RAL colours available for paint: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect.

Colour

Procity grey.

White.

Blue.

Red.

Black.

Grey.

Green.

Brown.

Corten effect.

Manufacturer guidance

Available in single-colour or two-colours.

Roof covering

steel-tube crossbars and anti UV-treated cellular polycarbonate panels.

Accessories

Wind protectors around roof.

Signage

None.

Configuration

Without cladding.

Mounting

Base plates.

Sustainability data

Contains Red List materials

No

Country of material origin

France

Country of product manufacture

France

Recyclability

Steel is 100% recyclable.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
