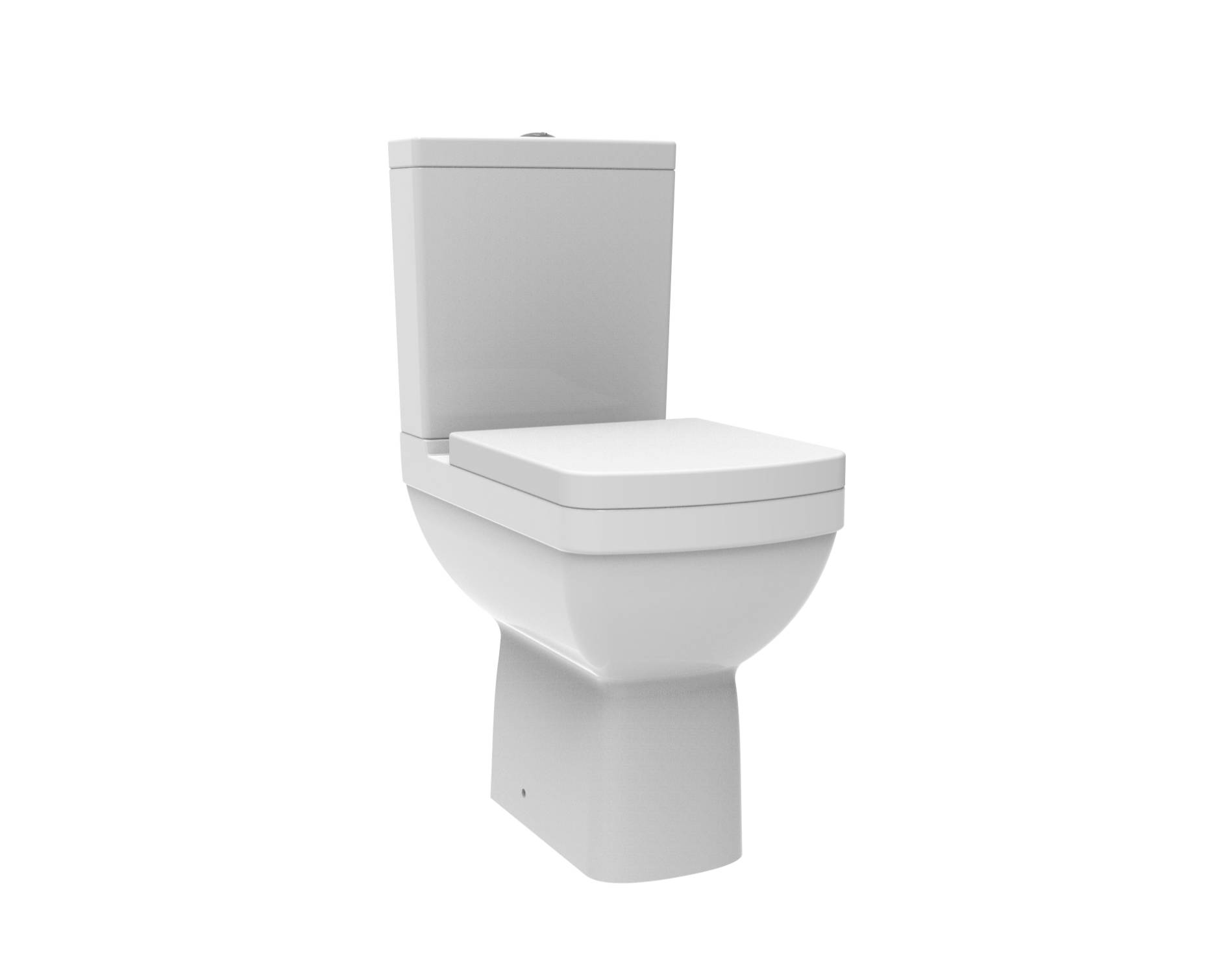

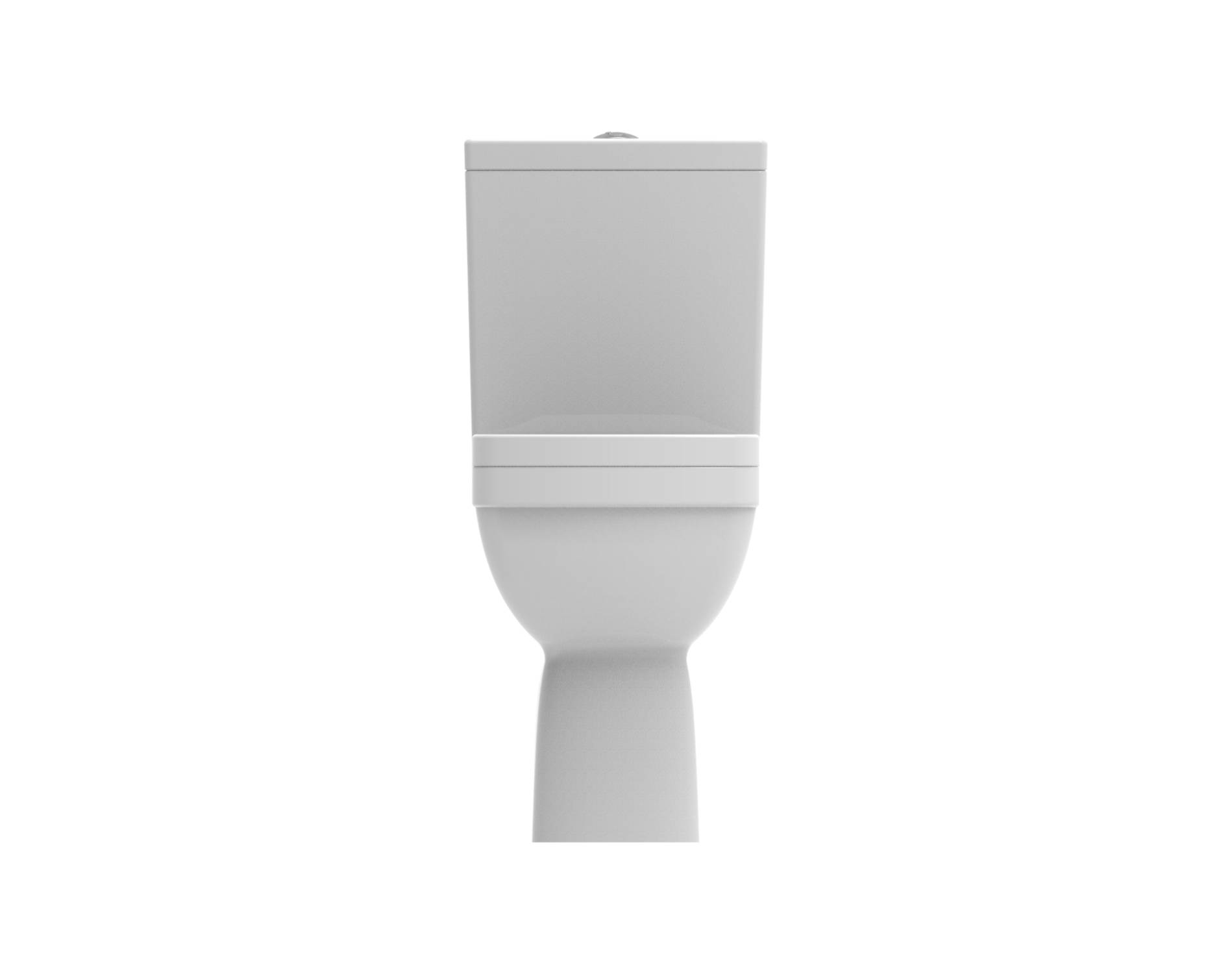

Minuto Comfort Height - WC Suite

Verified by manufacturer 4 months ago

Balmorals London Limited

Close coupled WC pan, cistern with WRAS approved push button fitting and slow close seat.

Jump to:
BOS
+44020 3697 1787 Website

Application

Suitable for close-coupled WC-suites.

Description

Made with comfort in mind, this WC has a raised height of 470 mm and a short projection, and is made from high quality vitreous china.


Features and benefits:

  • Minuto comfort height close coupled WC pan.
  • Minuto cistern with WRAS approved push button fitting.
  • Minuto slow close seat with one push button.

General information

Color

White

Material

Vitreous china

Shape

Other

Length

600 mm

Width

395 mm

Height

880 mm

Uniclass

Pr_40_20_93_97 WC suitesPrimary

CAWS

N13/302 WCs and flushing valves

N13/300 WCs and cisterns

N13/10 WC pans and flushing arrangements

Specification data - WC suites

Standards

-

Cisterns

To BS EN 997, Class 2.

Pans

To BS EN 997, Class 2.

Approvals

Water Regulations Approval Scheme (WRAS)-approved.

Form

Close-coupled WC pan and cistern.

Connecting dimensions

To BS EN 33.

Materials

-

Body

Vitreous china.

Finish and colour

White.

Sizes

-

Cistern capacity

6/4 L dual flush.

Pan height

470 mm.

Integral accessories

Minuto slow close seat with one push button.

Guidance for specification option:

1510.1.PB.BW.

Total height

880 mm.

Projection

600 mm.

Width

395 mm.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Minuto Comfort WC Pan and Cistern- Technical Drawing

Minuto Comfort WC Pan and Cistern- Technical Drawing

Minuto Comfort - Datasheet

Minuto Comfort - Datasheet

Minuto Slow Close Seat with One Push Button - Technical Drawing

Minuto Slow Close Seat with One Push Button - Technical Drawing
