Mipolam Biocontrol ESD+ Sheet - ESD flooring

Verified by manufacturer 7 months ago

Gerflor Flooring UK Limited Third party certifications:
  • EPD

    EPD

    Certificate type

Homogenous conductive flexible vinyl floor covering in sheet form.

Jump to:
BOS
01625 428 922 Website

Application

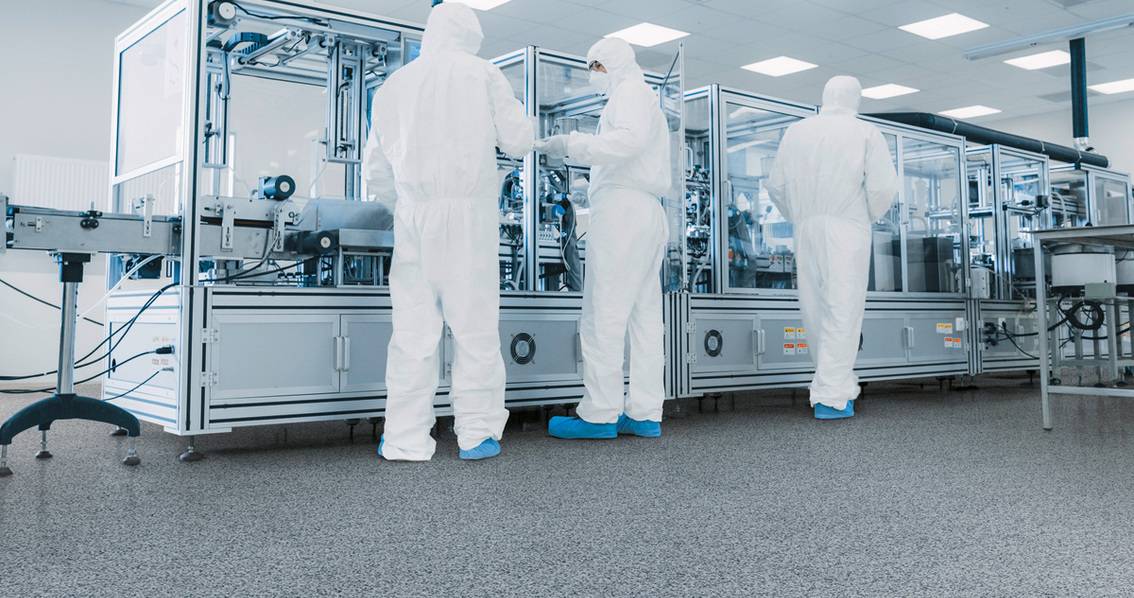

Mipolam Biocontrol ESD+ is a high performing commercial floor designed for Industrial Applications.

Description

Mipolam Biocontrol ESD+ is a conductive flexible homogeneous vinyl floorcovering available in sheet form. The 2 mm-thick homogeneous material incorporates carbon granules throughout its full thickness and has a conductive backing to ensure optimal and consistent conductive properties throughout its full life expectancy. Treated with Evercare™ surface treatment, it offers a high level of resistance to stains and chemical products and requires no wax for life. Mipolam Biocontrol ESD+ acts as a continuous conductive floor and has enhanced antistatic properties (<35 V). The product has to be grounded with an ESD copper strip to meets its full performance. No need to lay with conductive glue.


Features and benefits:

  • Excellent resistance to staining and chemicals.
  • Conforms to IEC 61340-5.1 and ESD 2020.
  • Has enhanced transversal resistance properties.
  • Integrated colour and non-directional design.
  • Suitable for high footfall and heavy static and dynamic loads.
  • Highly flexible, easy to install and weld.
  • Compatible with the Gerflor Clean Corner system.
  • Contemporary matt finish.
  • 100% recyclable.


Installation and maintenance:

Should be installed in accordance with the BS 8203:2017 Code of practice for installation of resilient floor coverings. Installation and maintenance instructions are available. For optimum hygiene in Industrial applications, Mipolam Biocontrol ESD+ can be installed with the patented Clean Corner System.

General information

Color

Grey

Guidance for specification option:

1000 Graphite Grey.

Finish

Matt

Material

Vinyl

Length

20000 mm

Width

2000 mm

Height

2 mm

Warranty description

12 year

Uniclass

Pr_35_57_71_67 Polyvinyl chloride (PVC) sheetsPrimary

CAWS

M50/150 Sheeting

M50/20 Sheeting

Product range

Sheeting / ESD Vinyl Flooring

Specification data - Polyvinyl chloride (PVC) sheets

Standard

To BS EN ISO 10581.

Use class

To BS EN ISO 10874, class 34-43.

Guidance for specification option:

Commercial, very heavy - Light industrial, heavy.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

R9.

Guidance for specification option:

To DIN 51130

Width

2000 mm.

Thickness

2 mm.

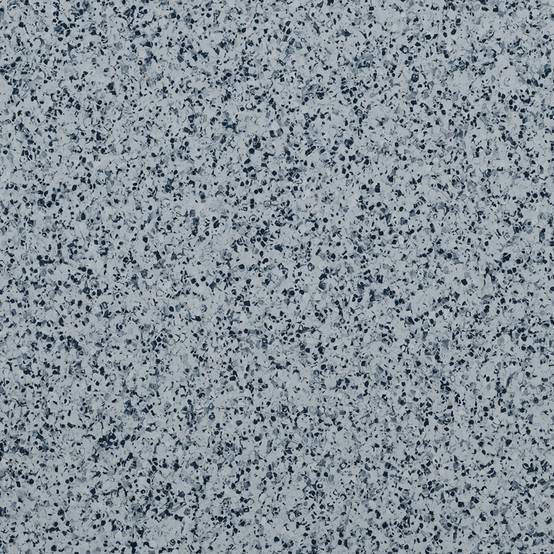

Colour and pattern

1000 Graphite Grey.

Length

20 m.

Weight

2980 g/m².

Fire classification (EN 13501-1)

Bfl-s1.

Electrical resistance

Rgp <10^6 Ω.

Guidance for specification option:

To IEC 61340-5-1

Static electricity

<35 V (measured with ESD shoes).

Guidance for specification option:

To BS 61340-4-5, Static electrical propensity

Dimensional stability (to BS EN ISO 23999)

≤0.40%.

Castor chair continuous use (to ISO 4918)

OK.

Guidance for specification option:

Type W

ThermalConductivity

0.25 W/(m·K).

Guidance for specification option:

To EN ISO 10456.

Surface treatment

Evercare™.

Accessories

Clean corner system.

Co-ordinating weld rods.

Product Reference

Mipolam Biocontrol ESD+ Sheet

Binder

Type I.

Guidance for specification option:

Binder content to BS EN ISO 10581.

Residual indentation (to EN-ISO 24343-1)

≤0.10 mm.

Guidance for specification option:

Average measured value ≈0.02 mm.

VOC emissions

<10 µg/m³.

Guidance for specification option:

ISO 16000-6 TVOC after 28 days.

Light reflectance value (LRV)/ Colour

29.7.

Sustainability data

Material

Vinyl

Recyclability

100%

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

2

Third party certifications

EPD

EPD

EPD - Mipolam Collection

Literature

Mipolam Biocontrol ESD + Technical Datasheet

Mipolam Biocontrol ESD + Technical Datasheet

Chemical Resistance Results

Chemical Resistance Results
