Mirage

Verified by manufacturer over a year ago

Maxwood

Glass shower cubicles with solid stainless ironmongery.

Jump to:
+44 (0)20 3657 7615 Website

Application

Suitable for upmarket shower facilities.

Description

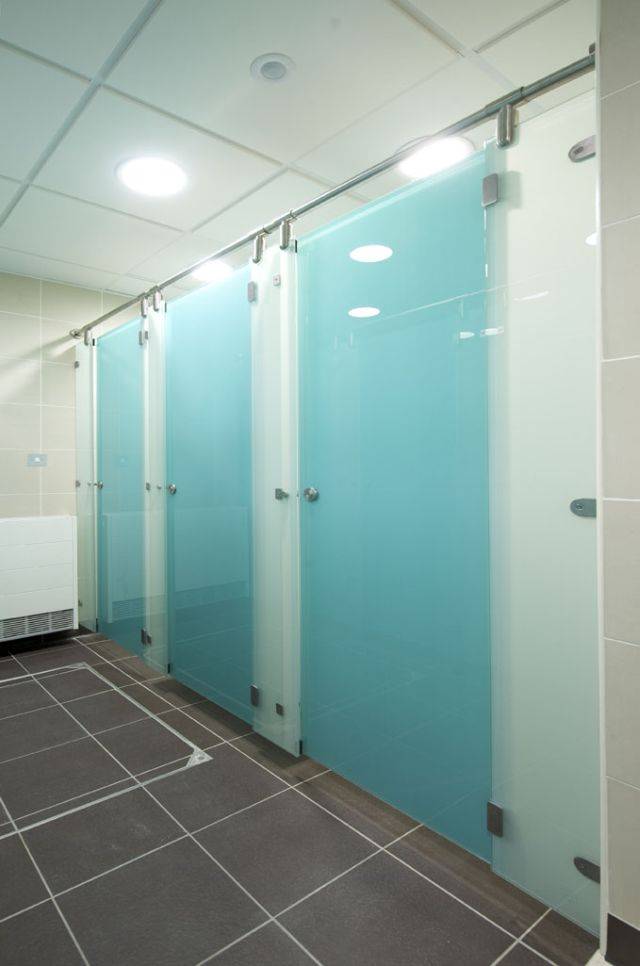

A robust system with a strong aesthetic appeal. Rimless glass panels and bold functional metal supports makes it suitable for upmarket shower facilities.

Available in a wide range of colours and finishes, Mirage takes on the hard wearing and easy to clean properties natural to glass, allowing both style and practicality to be attained


Features and benefits:

  • Wide choice of colours and finishes, including laminated, sand-blasted and layered back-painted glass.
  • Toughened glass.
  • Adjustable legs for ease of installation.
  • Functional and striking components in satin stainless steel.
  • Can be used as shower cubicles with doors or curtains.

General information

Color

-

Manufacturer guidance

Any RAL colour.

Finish

Glass

Material

Glass

Guidance for specification option:

Two layers of 4 mm toughened, back-painted glass bonded back-to-back, giving overall thickness of 10 mm.

Size

-

Manufacturer guidance

Overall height: 2000-2800 mm.

Division (h x w): 2000-2800 mm x 1500mm–2200 mm.

Door (h x w): 2000-2800 mm high x to suit site dimensions.

Pilaster (h x w): 2000-2800 mm high x to suit site dimensions.

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Cubicles

Specification data - Panel cubicle systems

Classification data

Panels

Toughened glass, sandblasted finish.
Toughened glass, colour.

Guidance for specification option:

Insert RAL colour.

Manufacturer guidance

  • Core material: Two layers of 4 mm-thick toughened, back-painted glass bonded back-to-back, giving overall thickness of 10 mm. (For panels over of area 2.1 m², two layers of 6 mm thickness are used).
  • Edge treatment: All edges radiused, polished and finished with silicon bead.

Pilasters

As panels.
Toughened glass, sandblasted finish.
Toughened glass, colour.

Guidance for specification option:

Insert RAL colour.

Manufacturer guidance

  • Core material: Two layers of 4 mm-thick toughened, back-painted glass bonded back-to-back, giving overall thickness of 10 mm. (For panels over of area 2.1 m², two layers of 6 mm thickness are used).
  • Edge treatment: All edges radiused, polished and finished with silicon bead.

Doors

As panels.
Toughened glass, sandblasted finish.
Toughened glass, colour.

Guidance for specification option:

Insert RAL colour.

Manufacturer guidance

  • Core material: Two layers of 4 mm-thick toughened, back-painted glass bonded back-to-back, giving overall thickness of 10 mm. (For panels over of area 2.1 m², two layers of 6 mm thickness are used).
  • Edge treatment: All edges radiused, polished and finished with silicon bead.

Hardware

Manufacturer's standard.

Guidance for specification option:

  • Indicator bolt: Solid stainless steel with turn action.
  • Division fixing: Solid stainless steel bolt-through channel brackets.
  • Hinges: Solid stainless steel set fall-to-close.
  • Support foot: Solid stainless steel with adjustment.
  • Headrail: Tubular section in stainless steel.
  • Ambulant pull handle: 19 x 600 mm stainless steel D-handle.

Manufacturer's standard with stainless steel channel headrail.

Guidance for specification option:

As Manufacturer's standard, with stainless steel channel headrail in lieu of tubular headrail.

Curtains

Not required.
Shower curtains.
Shower curtain rails.

System accessories

Indicator bolt.

Guidance for specification option:

Solid stainless steel with turn action.

Division fixing.

Guidance for specification option:

Solid stainless steel bolt-through channel brackets.

Ambulant pull handle.

Guidance for specification option:

19 x 600 mm stainless steel D-handle.

Hinges.

Guidance for specification option:

Solid stainless steel set fall-to-close.

Support foot.

Guidance for specification option:

Solid stainless steel with adjustment.

Headrail.

Guidance for specification option:

Tubular section in stainless steel.

Product Reference

Mirage

Design

-

Manufacturer guidance

Insert requirements or drawing reference.

  • Overall height: As required, 2000–2800mm.
  • Division panels: 2000–2800 mm high, 1500–2200 mm wide.
  • Door: 2000–2800 mm high, width to suit site dimensions.
  • Pilaster: 2000–2800 mm high, width to suit site dimensions.

Literature

Cubicles - Mirage - Glass cubicle systems

Cubicles - Mirage - Glass cubicle systems
