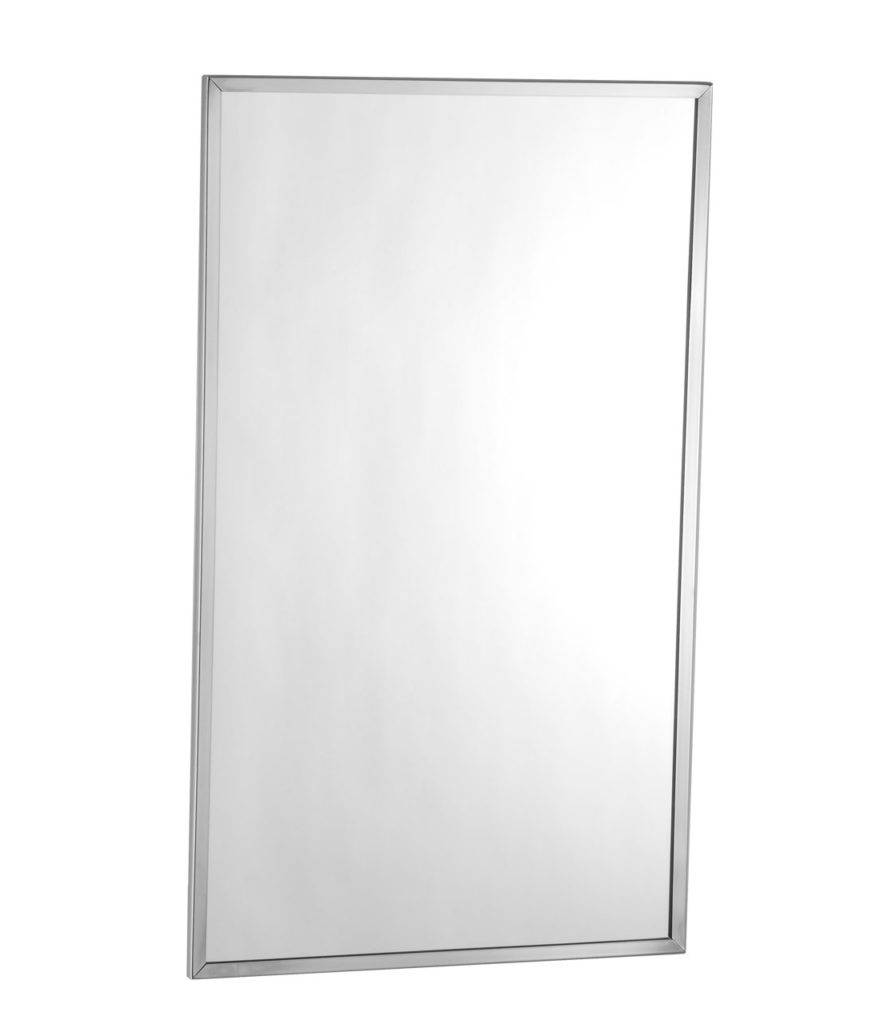

Mirror with Stainless Steel Channel Frame B-165

Verified by manufacturer 10 months ago

B-165 1824 Mirror with Stainless Steel Channel Frame

Bobrick Washroom Equipment Ltd Variant:

Wall mounted mirror in stainless steel channel frame.

Jump to:
+44 (0)20 8366 1771 Website

Application

Wall mounted

Description

Features and benefits:

  • One-piece type-430 stainless steel channel frame mirror, with 90° mitred corners.
  • All exposed surfaces shall have bright polished finish.
  • Select float glass mirrors are guaranteed for 15 years against silver spoilage.
  • Back protected by full-size, shock-absorbing, water-resistant, nonabrasive, polyethylene padding.
  • Galvanized steel back shall have integral horizontal hanging brackets located at top and bottom for has mounting on concealed wall hanger to prevent the mirror from pulling away from the wall.
  • Locking devices secure mirror to concealed wall hanger.
  • Mirror is removable from the wall.
  • Mirror: 6mm thick glass. Frame: 13mm deep.

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Shape

Rectangle

Warranty description

15 year

Guidance for specification option:

Warranted against silver spoilage from the date of purchase for the periods set forth.

Uniclass

Pr_40_30_53_30 Framed glass mirrorsPrimary

CAWS

N13/63 Glass mirrors

N10/275 Framed mirrors

N10/75 Framed mirrors

N13/438 Mirrors

Specification data - Framed glass mirrors

Dimensions

460 x 610 mm.

Thickness

6 mm.

Finish

Silvered to give maximum reflection, free from tarnishing, discoloration, scratches and other defects visible in the designed viewing conditions. Reflection undistorted.

Backing

Copper-plated.

Frame

-

Material

304 Stainless Steel.

Finish

Satin polished.

Colour

Natural.

Edges

-

Treatment

Polished.

Provision for fixing

Snap lock design.

Guidance for specification option:

Locking devices automatically secure mirror to concealed wall hanger when it is lowered into final position. Locking devices may be unlocked by inserting two flat blade screwdrivers behind each side of mirror near the bottom or under the bottom of the mirror and pulling mirror bottom forward and then up.

"2S" Tab Design.

Guidance for specification option:

Locking devices automatically secure mirror to concealed wall hanger when it is lowered into final position. Locking device may be unlocked by sliding a flat-blade screwdriver or Key between mirror and wall at center of mirror and depressing tab on back panel. If key is required, please contact the factory.

Execution

Installing mirrors

Sustainability data

Country of material origin

United States

Recyclability

-

Manufacturer guidance

Metals widely recycled

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Washroom Accessories

Washroom Accessories

Advisory Bulletin TB-94 Bobrick Mirror Care and Maintenance

Advisory Bulletin TB-94 Bobrick Mirror Care and Maintenance

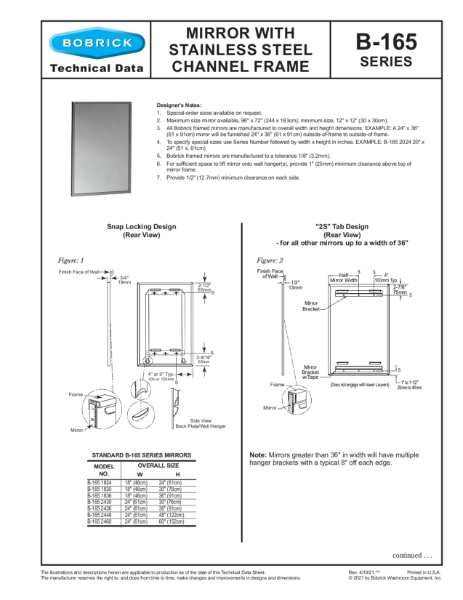

Mirror with Stainless Steel Channel Frame - B165 Series

Mirror with Stainless Steel Channel Frame - B165 Series

Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

TB-88 Advisory Bulletin

TB-88 Advisory Bulletin
