Model A Wash Basin - D20161N

Verified by manufacturer over a year ago

KWC DVS Limited

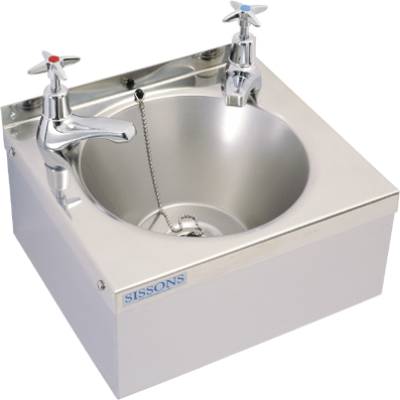

A stainless steel wall mounted washbasin and crosshead taps, with a high polish finish.

Jump to:
BOS
+44 (0)1246 458900 Website

Description

Stainless steel wall mounted washbasin and crosshead taps, with a high polish finish.


Features and Benefits:

  • 240 mm diameter wall mounted washbasin with apron and Cross head taps.
  • Prepared for 32 mm waste outlet and supplied with two tap holes in the rear ledge.
  • Wall mounting by using the fixing holes provided in both the rear upstand and the rear apron fixing brackets (screws and plugs are not supplied).
  • Includes crosshead taps and waste kit.

General information

Finish

Polished

Material

Steel

Guidance for specification option:

Stainless steel grade 1.4301 (type 304)

Shape

Square

Length

290 mm

Width

290 mm

Height

157 mm

Warranty description

Five year

Guidance for specification option:

Two years for taps.

Uniclass

Pr_40_20_96_96 Wall-hung washbasinsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Product range

Washbasins

Specification data - Wall-hung washbasins

Form

Wall hung wash basin.

Materials

-

Body

Stainless steel.

Guidance for specification option:

  • Washbasin top: stainless steel grade 1.4301 (type 304).
  • Apron support: stainless steel grade 1.4301 (type 430).

Finish and colour

High polish.

Size

290 x 290 x 157 mm.

Water supply, overflow and waste holes

-

Water supply

Two tap holes.

Guidance for specification option:

Supplied with two crosshead taps.

Overflow

None.

Guidance for specification option:

It is not possible to fit an overflow in the bowl.

Waste

32 mm waste outlet.

Integral accessories

Includes crosshead taps and waste kit (Screws and plugs not supplied).

Product Reference

(D20161N) 203.0000.053

Guidance for specification option:

Model A washbasin with apron support and waste kit.

(D20161N-FL) 203.0581.022

Guidance for specification option:

Model A washbasin with lever taps.

(D20161N-FX) 203.0581.023

Guidance for specification option:

Model A washbasin with crosshead taps.

Dimensions

Bowel: 230 x 115 mm.

Thickness: 0.9 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Similar products from KWC DVS Limited

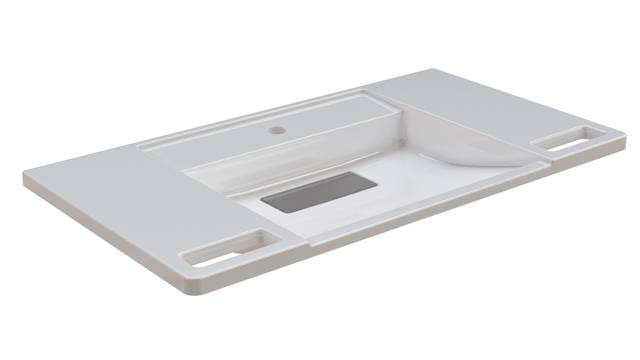

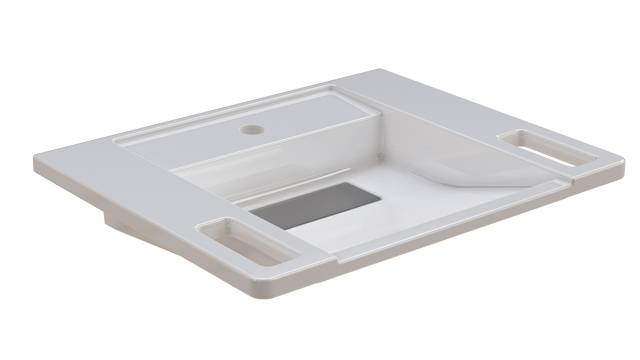

EXOS. Accessible Washbasins

EXOS. Accessible Washbasins

EXOS. Single Washbasins

EXOS. Single Washbasins

Guardian Washbasin - G20476N

Guardian Washbasin - G20476N

Guardian Washbasin - HDTX450

Guardian Washbasin - HDTX450

Model B Wash Basin - D20162N

Model B Wash Basin - D20162N

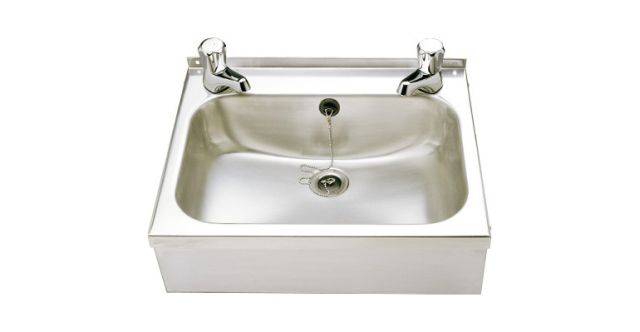

Rectangular Washbasin with Apron
