Modulo bicycle shelter
Verified by manufacturer 7 months ago

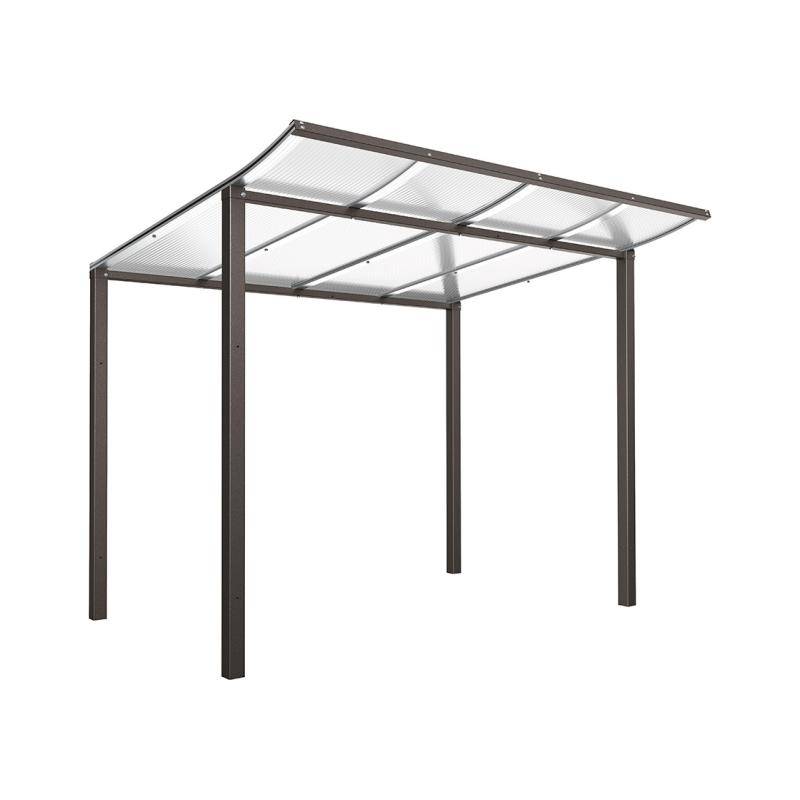

529193 - Without cladding
529193 - Without cladding
Bicycle shelter.
Application
Suitable for installing in public spaces, educational institutions and workplaces.
Description
This shelter with simple and neat finish offers a dynamic look with its slightly curved roof and its anodised aluminium roof crossbars.
Features and benefits:
- Parking capacity up to 6 bicycles for a module (depending on the bicycle stand or bicycle rack chosen).
- Extension modules 2500 mm wide to provide the amount of parking required.
- A choice of 2 depths and with or without cladding.
- Frame manufactured from steel tubes.
- Roof construction anodised aluminum profiles with steel tube cross members and anti-UV-treated cellular polycarbonate panels.

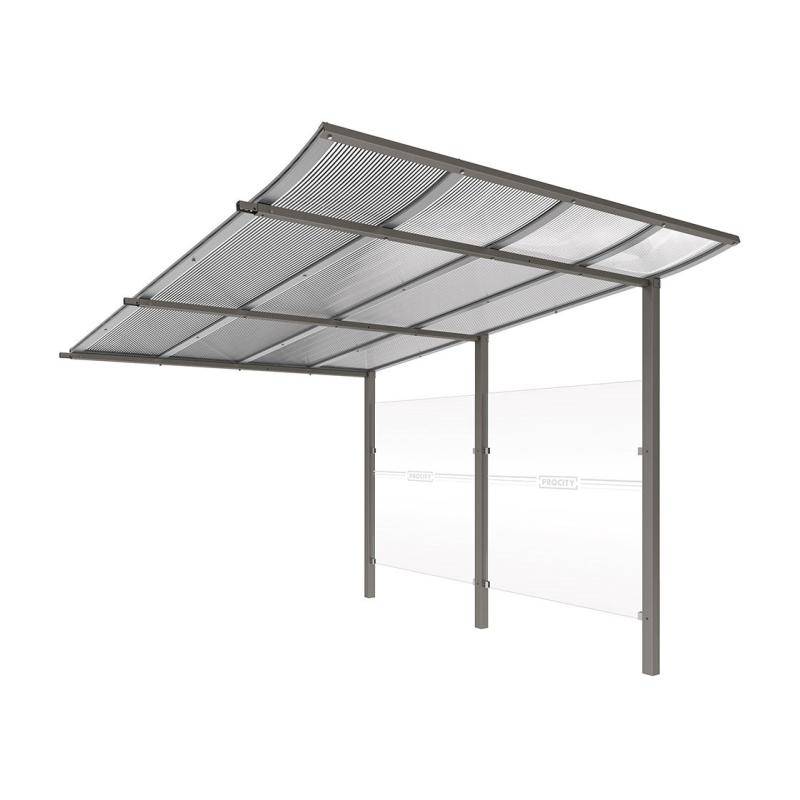

- Cladding in 5 mm safety glass
- Installation to be concreted directly into the ground.
- A range of finishes available, galvanized and painted in a range of colours.
- Modulo bicycle shelter - Bicycle shelters - Bicycle and motorbike solutions - Procity UK
General information
Color | Grey White Blue Red Black |
Finish | Galvanized Painted |
Material | Steel Polycarbonate Aluminium |
Shape | Rectangle |
Length | 2000 mm 3400 mm Manufacturer guidanceDepth |
Width | 2500 mm |
Height | 2100 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | B91/340 Cycle shelter B91/385 Shelter B91/330 Canopy |
Specification data - Open-sided shelters
Shelter description | Bicycle shelter. |
Dimensions | |
Plan size | 2500 x 2000 mm.2500 x 3400 mm. |
Height | 2100 mm. |
Frame | |
Material | Steel tube. |
Finish | Galvanized.Galvanized and paintedGuidance for specification option: RAL colours available for paint: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect. |
Colour | Procity grey.White.Blue.Red.Black.Grey.Green.Brown.Corten effect. |
Roof covering | Aluminum profiles with steel tube cross members and anti-UV-treated cellular polycarbonate panels. |
Configuration | Without cladding. |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Recyclability | Steel is 100% recyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
