Modul'up T.E. sheet vinyl - Adhesive free sheet vinyl

Name: Modul'up T.E. sheet vinyl - Adhesive free sheet vinyl
Brand: Forbo Flooring Systems
SKU: tk7QftzBCCs8hhLmbZVES5

Verified by manufacturer 15 days ago

Third party certifications:

Adhesive free sheet vinyl flooring solution for high traffic areas and for use on subfloors with high humidity levels.

Jump to:

Application

Internal use, all busy commercial and public sector locations.

Compact vinyl adhesive free floor covering designed for use with subfloors with up to 97% RH. Available in a choice of 6 designs.

Features and benefits:

Forbo Flooring's adhesive free compact option for high traffic applications with damp subfloor issues.
Can be installed onto existing damp subfloors without an effective DPM, and with a residual moisture content up to 97% RH.
Aquablock technology on the backing of Modul'up T.E. ensures ventilation of the substrate and evacuates moisture to the periphery of the room.
Moudl'up T.E. should be used in conjunction with a ventilated skirting.
100% of the electricity used is from a renewable source.
Meets the requirements of EN 14041.
XtremePUR high performance lacquer offering best possible resistance against soiling and stains.
Modul’up can be walked on immediately after installation.
It can be installed quickly without adhesives, but is even more time and cost efficient at time of replacement.
Part of Forbo's Fast Fit collection of adhesive free flooring solutions.

Color	Grey Brown
Finish	Lacquered Manufacturer guidance OVERCLEAN XL
Material	PVC
Shape	Rectangle
Length	25000 mm
Width	2000 mm
Height	2.4 mm
Warranty description	Ten year

Uniclass	Pr_35_57_71_67 Polyvinyl chloride (PVC) sheetsPrimary
CAWS	M50/20 Sheeting M50/150 Sheeting

Standard	To BS EN ISO 10582 for heterogeneous PVC sheet.
Use class	Class 34 / 43.
Slip potential	-
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)	To DIN 51130, R9; to EN 13893 μ ≥ 0.30; PTV dry: >50.
Recycled content	0%.
Width	2000 mm.
Thickness	2.4 mm (0.7 mm wear layer).

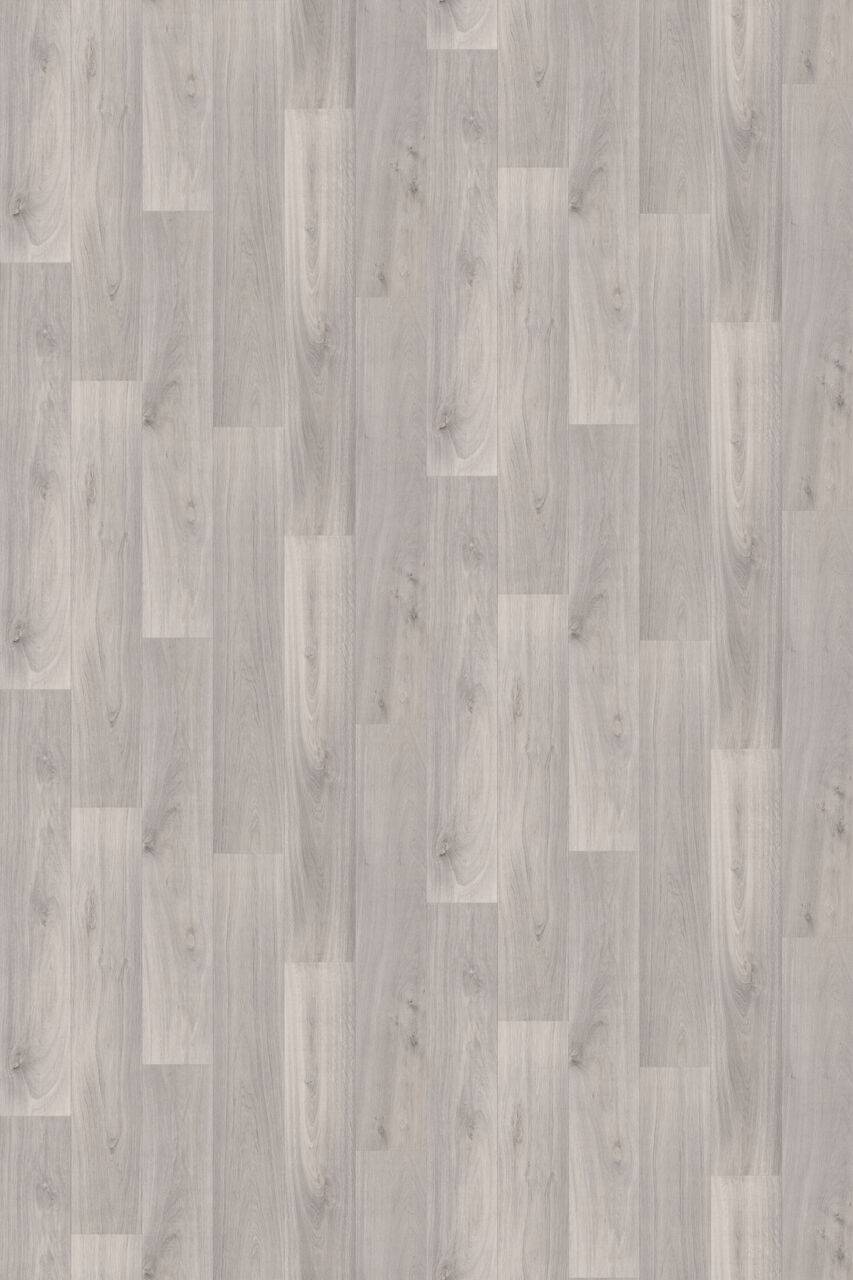

Colour and pattern	43T80421 oak polar. 43T80472 oak silver. 43T80473 oak natural. 43T30572 cement grey. 43T30771 concrete silver. 43T30001 terra dove.

Impact sound reduction (to EN-ISO 717-2)	7 dB.
In-room impact noise (to NF S 31-074)	Ln,e,w < 75 dB, Class B.
Sound absorption (to EN-ISO 354 and EN-ISO 11654)	αw = ±0.05.
Residual indentation (to EN-ISO 24343-1)	~0.05 mm (actual). Typical value requirement = ≤ 0.10 mm.
Abrasion resistance (to BS EN 660-2)	Group T.
Castor chair continuous use (to ISO 4918 and EN 425)	Yes.
Lightfastness (to ISO 105-B02)	≥ 7.
Reaction to fire (to BS EN 13501)	Bfl-s1, L, NCS.
Thermal conductivity (to BS EN 12524)	0.25 W/m·K.
Indoor Air Emissions (to EN 16516)	TVOC after 28 days ≤0.02 mg/m³.
Resistance to chemicals (to EN ISO 26987)	Excellent.
Total weight (to EN ISO 23997)	2.7 kg/m².
Dimensional stability (to BS EN ISO 23999)	<0.1%.
Body voltage (to EN 1815)	<2 kV.
Edging	Not required. As per 740.
Skirtings	Not required. As per 770.
Stair nosings	Not required. As per 750.

Contains Red List materials	Yes
Country of material origin	France
Country of product manufacture	France
Material	PVC
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	5.93 kg CO₂ eq/m²
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
