Mono-Clip System
Verified by manufacturer 1 month ago

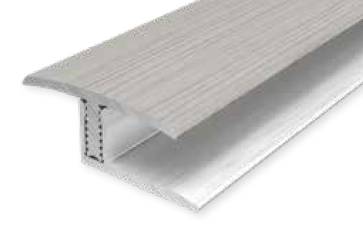

KC558 / MCB554: Twin top
KC558 / MCB554: Twin top
Two-piece wood-effect floor trims.
Application
Suitable for domestic and light commercial use.
Description
Mono-Clip is a range of two-piece wood-effect floor trims that allows a coordinating, safe transition for flooring such as wood and wood laminate.
Features and benefits:
- Comprised of aluminium bases and wood-effect aluminium top.
- Clipped into the bases to an adjustable height to suit the surrounding floorcoverings.
- Tops are available in three configurations - ramp, twin top and border.
General information
Color | Cream Guidance for specification option: H64 Cream Oak. Brown Guidance for specification option: H30 Light Oak or H81 Walnut. Grey Guidance for specification option: H61 Grey Oak or H65 Light Grey Oak. |
Material | Aluminium Guidance for specification option: Top – aluminium with wood-effect finish / base – aluminium. |
Shape | Other Guidance for specification option: Top shape: Twin, ramp or border. |
Uniclass | |
CAWS | M51/510 Edgings and cover strips M50/740 Edgings and cover strips M50/70 Edgings and cover strips |
Specification data - Floor edge trims
Profile | Twin top. |
Material | Aluminium. |
Finish | Wood effect. |
Colour | H30 Light Oak.H61 Grey Oak.H64 Cream Oak.H65 Light Grey Oak.H81 Walnut. |
Form | Straight. |
Width | Top: 31.5 mm; base: 22.5 mm. |
Floor thicknesses accommodated | Guidance for specification option: The Mono-Clip system is clipped into the bases to an adjustable height to suit the surrounding floorcoverings. |
Fixing | Base: mechanical (screw) and adhesive fix. Guidance for specification option: As per manufacturers instructions. |
Gauge | 7–12 mm. 8.5–13.5 mm. |
Sustainability data
Material | Aluminium Guidance for specification option: Top – aluminium with wood-effect finish / base – aluminium. |
