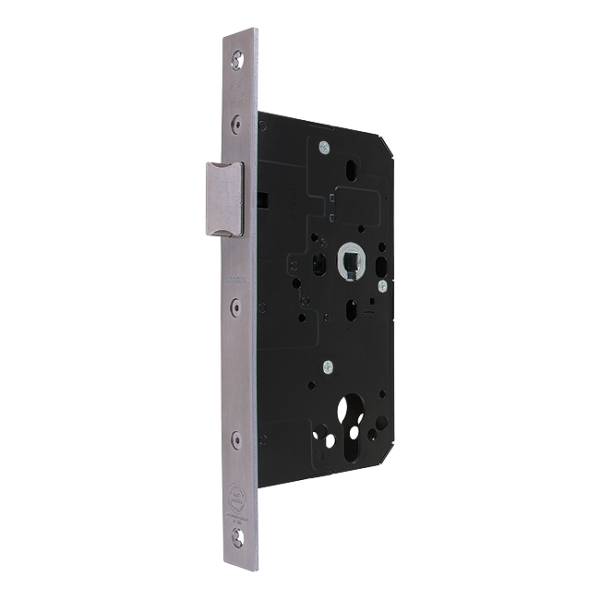

Mortice Latch - 300.090.1024.SQ.SSS.CE-44
Verified by manufacturer 8 months ago
Square Corners
Square Corners
Stainless steel mortice latch.
Application
Suitable for use on a variety of doors including, timber and stainless steel fire doors.
Description
Stainless steel mortice latch.
Features and benefits:
- Latchbolt operated.
- Radiused or squared corners
- Pierced at 38 mm c.c. for bolt through fixing.
- Latchbolt follower: 8 mm.
- To EN 12209 Classification 3/X/8/1/0/G/-/B/O/3/0.
- CE marked.
General information
Color | Silver Gold |
Finish | Stainless steel Polished Brass Satin |
Material | Stainless steel |
Shape | Square Other |
Length | 165 mm |
Width | 88 mm 108 mm |
Height | 16 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/540 Door latches P21/28 Door latches |
Specification data - Door latches
Standard | To BS EN 12209. |
Classification grades (minimum) | |
Suitability for use on fire-resisting and/ or smoke control doorset | To BS EN 1634-1.Guidance for specification option: Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minutes steel fire doors. |
Latch or lock type | Mortice latch. |
Backset | 80 mm. |
Material and finish | F68 polished stainless steel.F69 satin stainless steel.F77 brass-coloured, polished. |
Forend | Single. |
Type | Square. |
Dimensions | 108 x 165 x 16 mm. Guidance for specification option: Case size: Depth: 108 mm length: 165 mm width: 16 mm, modular. |
Third-party certification | Certifire approved: CF530, CE DOP: HUK0009, UKCA DOP: HUK0009-UK. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Portugal |
Country of product manufacture | Europe |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0 kg CO₂ eq/unit Self declared |
Recyclability | Used as scrap |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
