Motiva Mono™ - Curved Polycarbonate Roof Canopy - Canopy
Verified by manufacturer 4 days ago
Standard Width: 3000 mm
Standard Width: 3000 mm
Constructionline Gold
Certificate type
CHAS
Certificate type
smas WORKSAFE
Certificate type
Alcumus SafeContractor
Certificate type
BS EN 1090-1
Certificate type
The Motiva Mono™ is a canopy with a mono-pitch (asymmetric) curved roof, ideal for use in schools and other commercial sites. Free canopy drawing service available - contact us for more details.
Application
A&S Landscape are the UK's leading canopy manufacturer, offering a wide range of shelters, canopies and shade sails.
Typical applications of the Motiva Mono™ canopy include:
- Positioning against a building.
- Covered walkways.
- Outdoor dining and recreational areas.
- Plazas.
- Schools.
- Colleges.
- Universities.
- Outdoor play.
- Outdoor learning.
- Hospitals.
Description

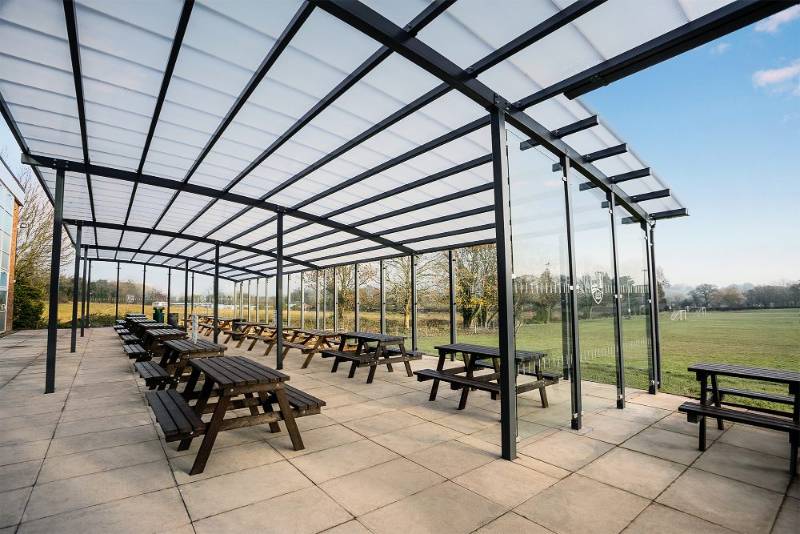

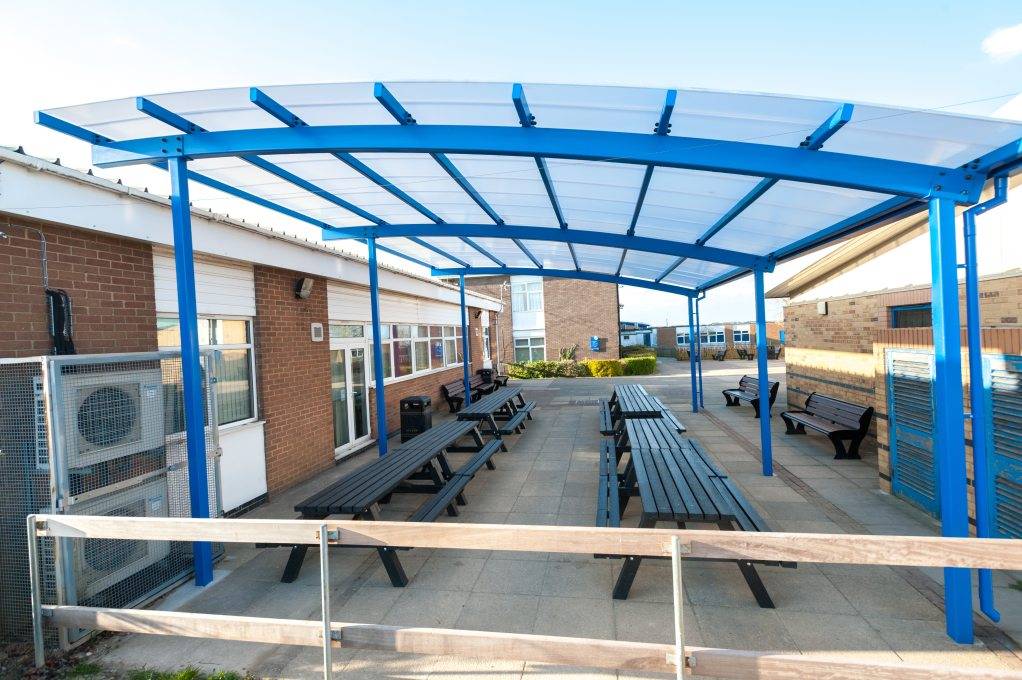

The Motiva Mono™ canopy is a versatile alternative to the Motiva Linear™ canopy. Featuring a mono-pitch (asymmetric) curved roof (with one side higher than the other) it provides robust and long-lasting shelter all year round. Its modern design means that it is one of A&S Landscape's most popular canopies and can be used for a wide variety of applications including positioning against the building, outdoor seating areas and covered walkways.
Features and benefits:
- Solid steel framework.
- Freestanding contemporary design.
- Asymmetric curved polycarbonate roof design, featuring unique 'click-lock' roof system.
- Galvanised and powder-coated steelwork to any RAL colour.
- Wide range of sizes.
- Longest guarantees on the market.
- Bespoke designs on request to enclose the space.
- All year-round product.
General information
Color | White Yellow Brown Red Grey |
Finish | Galvanized Powder-coated Other Guidance for specification option: Dura-coat™. |
Material | Steel Polycarbonate |
Shape | Other Rectangle Square |
Length | Bespoke |
Width | 3000 mm 4000 mm 5000 mm 6000 mm 7000 mm |
Height | Bespoke Guidance for specification option: Please note, one side always needs to be higher then the other. Consult manufacturer and insert requirements. |
Warranty description | 25 year |
Uniclass | |
CAWS | B91/420 Waiting shelter B91/335 Covered walkway B91/330 Canopy B91/385 Shelter |
Product range |
Specification data - Open-sided shelters
Description | Curved polycarbonate roof canopy. |
Manufacturer | A&S Landscape. |
Shelter description | Asymmetric, mono pitched curved roof canopy. |
Dimensions | |
Plan size | Length x 3000 mm.Guidance for specification option: Consult manufacturer and insert requirements.
|
Height | Manufacturer guidanceConsult manufacturer and insert requirements. Almost any height is achievable, call 01743 444100 with any queries. |
Frame | |
Material | Structural steel. |
Finish | Galvanized.Dura-coat™.Powder coated. |
Colour | Other.Guidance for specification option: Any RAL colour available. Consult manufacturer and insert requirements. Galvanized steel.Guidance for specification option: Galvanized finish. White (9010) (RAL 9010).Guidance for specification option: Dura-coat™ finish. Signal Yellow (RAL 1003).Guidance for specification option: Dura-coat™ finish. Brown Red (RAL 3011).Guidance for specification option: Dura-coat™ finish. Traffic Red (RAL 3020).Guidance for specification option: Dura-coat™ finish. Squirrel Grey (RAL 7000).Guidance for specification option: Dura-coat™ finish. Ultramarine Blue (RAL 5002).Guidance for specification option: Dura-coat™ finish. Gentian Blue (RAL 5010).Guidance for specification option: Dura-coat™ finish. Sapphire Blue (RAL 5003).Guidance for specification option: Dura-coat™ finish. Slate Grey (RAL 7015).Guidance for specification option: Dura-coat™ finish. Moss Green (RAL 6005).Guidance for specification option: Dura-coat™ finish. Signal Green (RAL 6032).Guidance for specification option: Dura-coat™ finish. Jet Black (RAL 9005).Guidance for specification option: Dura-coat™ finish. |
Roof covering | Polycarbonate roofing. |
Rainwater drainage | Not required.Aluminium guttering and downpipes. |
Accessories | Not required.Wall brackets.Wide span beams.CHS uprights.Post pads. |
Roof covering colour options | Transparent. Opal. |
Side panel | Not required. Required. Guidance for specification option: Consult manufacturer and insert requirements.
|
Installation | Manufacturer's standard. Guidance for specification option: Insert requirements for indicative foundation size. Buried post. |
Type | Wall fixed. Guidance for specification option: Back posts are not needed. Free-standing. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Polycarbonate |
Recyclability | 100% |
Expected Life | 40 year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 2 |
 DWG | - | 1 |
Third party certifications
Constructionline Gold
Constructionline Gold
CHAS
CHAS
smas WORKSAFE
SMAS
Alcumus SafeContractor
SafeContractor
BS EN 1090-1
Confirmation of British Standards
Literature

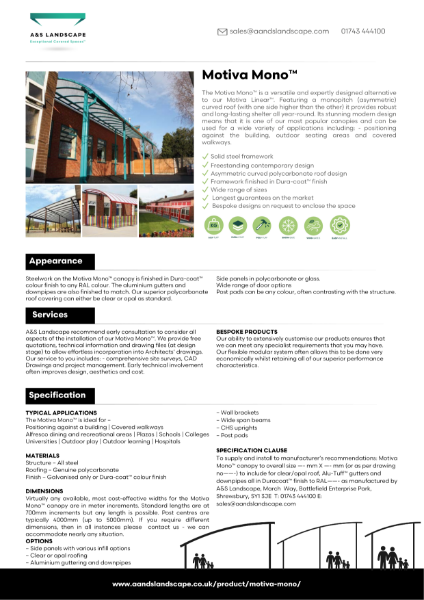

Motiva Mono Data Sheet
Case studies
The Chantry School in Worcestershire Add Large Dining Area Canopy
