Motiva VoltSpan™ - Solar Canopy
Verified by manufacturer 10 days ago
Standard Width: 2000 mm
Standard Width: 2000 mm
CHAS
Certificate type
smas WORKSAFE
Certificate type
Constructionline Gold
Certificate type
BS EN 1090-1
Certificate type
Alcumus SafeContractor
Certificate type
Adaptable canopy for photovoltaic (PV) panel mounting. This solar canopy can be manufactured to any size and take solar panels from any supplier. Free drawing service available.
Application
Suitable applications include:
- Schools
- Colleges
- Universities
- Hospitals

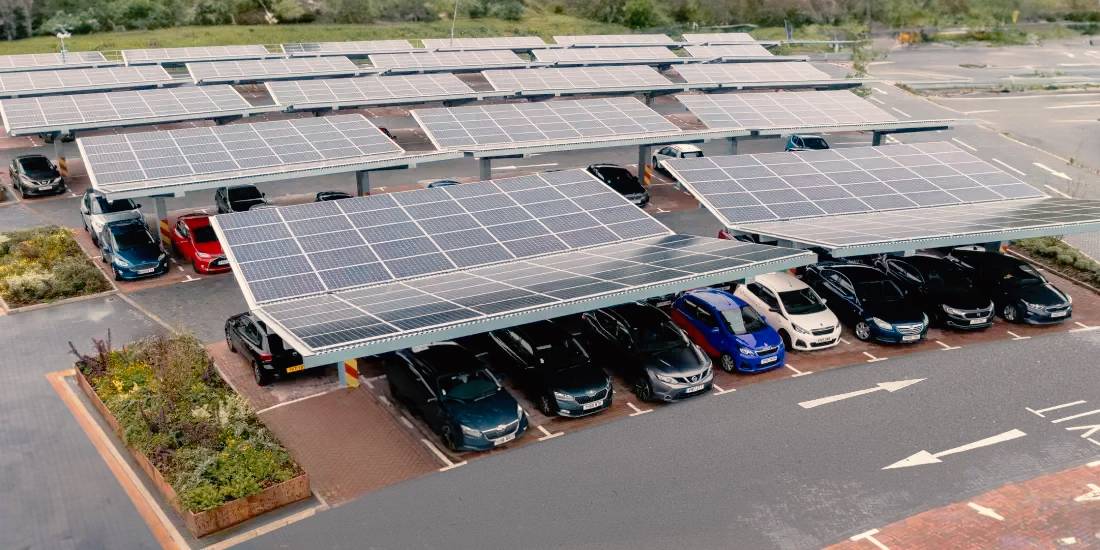

- Covered parking
- Covered walkways

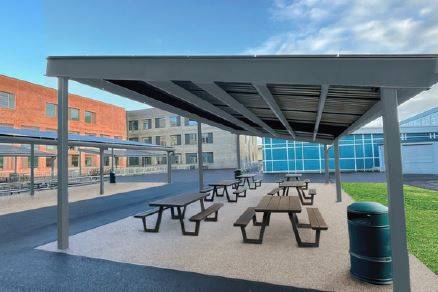

- Alfresco dining and recreational areas
- Plazas
- Outdoor play and learning areas
Description
The Motiva VoltSpan™ is an adaptable canopy for photovoltaic (PV) panel mounting featuring a solid steel framework and an aluminium guttering system. The structure can be manufactured to suit solar panels from any supplier and can be made to any bespoke size and configuration.
Features and benefits:
- Solid steel framework.
- Cantilever and gullwing design options available.
- Designed to hold any solar panel.
- Framework finished in galvanized or Dura-coat™ finish.
- Can be made bespoke in any size.
- Aluminium gutters and downpipes can be finished to match.
- Bespoke designs available.
General information
Color | White Yellow Red Grey Blue |
Finish | Galvanized Powder-coated |
Material | Steel Aluminium |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | 2000 mm 3000 mm 4000 mm 5000 mm 6000 mm |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | B91/420 Waiting shelter B91/385 Shelter B91/335 Covered walkway B91/330 Canopy |
Specification data - Open-sided shelters
Description | Photovoltaic canopy. |
Manufacturer | A&S Landscape. |
Shelter description | Adaptable canopy for photovoltaic (PV) panel mounting. |
Dimensions | |
Plan size | Length x 2000 mm.Guidance for specification option: Consult manufacturer and insert requirements.
|
Height | Manufacturer guidanceBespoke. Insert requirements. |
Frame | |
Material | Structural steel. |
Finish | Galvanized.Dura-coat™.Powder-coated. |
Colour | Other.Guidance for specification option: Any RAL colour available. Consult manufacturer and insert requirements. Galvanized steel.Guidance for specification option: Galvanized finish. White (9010) (RAL 9010).Guidance for specification option: Dura-coat™ finish. Signal Yellow (RAL 1003).Guidance for specification option: Dura-coat™ finish. Brown Red (RAL 3011).Guidance for specification option: Dura-coat™ finish. Traffic Red (RAL 3020).Guidance for specification option: Dura-coat™ finish. Squirrel Grey (RAL 7000).Guidance for specification option: Dura-coat™ finish. Ultramarine Blue (RAL 5002).Guidance for specification option: Dura-coat™ finish. Gentian Blue (RAL 5010).Guidance for specification option: Dura-coat™ finish. Sapphire Blue (RAL 5003).Guidance for specification option: Dura-coat™ finish. Slate Grey (RAL 7015).Guidance for specification option: Dura-coat™ finish. Moss Green (RAL 6005).Guidance for specification option: Dura-coat™ finish. Signal Green (RAL 6032).Guidance for specification option: Dura-coat™ finish. Jet Black (RAL 9005).Guidance for specification option: Dura-coat™ finish. |
Roof covering | Steel. |
Openings | |
Doors | Not required.Polycarbonate gate.Curtain wall.Solid curtain wall.Solid roller shutter doors.Glazed roller shutter doors.Perforated rolller shutter doors.Fire doors. |
Rainwater drainage | Not required.Aluminium guttering and downpipes. |
Accessories | Not required.Wall brackets.Wide span beams.CHS uprights.Post pads.Flashings.Roller shutters.Curtain walling.Side panels.Doors.Site specific calculations. |
Post centres | Manufacturer guidance5000–7500 mm. Insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Aluminium |
Recyclability | 100% |
Expected Life | 40 year Manufacturer guidance15 years (roof covering), 25 years (framework). |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
Third party certifications
CHAS
CHAS
smas WORKSAFE
SMAS
Constructionline Gold
Constructionline Gold
BS EN 1090-1
Confirmation of British Standards
Alcumus SafeContractor
SafeContractor
Literature
Motiva VoltSpan Datasheet
