MOY Paratherm G™ PIR Insulation - Flat Roofing Insulation Board
Verified by manufacturer 2 months ago
1200 x 1200 mm
1200 x 1200 mm

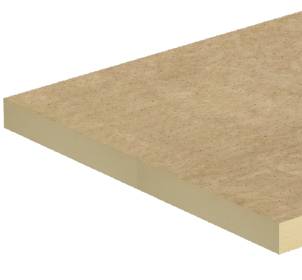

High performance rigid thermoset polyisocyanurate (PIR) flat roofing insulation board.
Application
- Particularly suitable for new build and refurbishment.
- Fully compatible with MOY single ply (non–bituminous) membranes fully bonded with MOY adhesives and MOY cold applied liquid waterproofing systems (with carrier layer).
- Compatible with MOY green roof systems.
Description
Paratherm G™ is a high performance rigid thermoset polyisocyanurate (PIR) flat roofing insulation board and is suitable with MOY’s fully adhered single ply, partially bonded built-up felt and cold liquid applied waterproofing (with carrier membrane) systems. It is faced on both sides with a coated glass tissue, autohesively bonded to the insulation core during manufacture.
Features and benefits:
- High performance rigid thermoset insulation.
- Amongst the more thermally efficient insulation products for flat roofs.
- Manufactured with a blowing agent that has zero ODP and low GWP.
- Available with FM Approval to FM 4470.
- Resistant to the passage of water vapour.
- Easy to handle and install.
- Also available as a tapered insulation system, to create the fall in the roof (Paratherm G™ Tapered).
General information
Finish | Coated |
Material | Polyisocyanurate (PIR) |
Shape | Rectangle Square |
Length | 1200 mm |
Width | 600 mm 1200 mm 2400 mm |
Height | 25 mm Guidance for specification option: Minimum. 160 mm Guidance for specification option: Maximum. |
Warranty description | Manufacturer guidanceFor the duration of the MOY System Warranty. |
Uniclass | |
CAWS | J31/24 Rigid urethane foam insulation J31/333 Rigid urethane foam insulation J31/110 Cold deck roof coating Q37/110 Intensive green roof J31/5 Cold deck roof coating |
Specification data - Polyisocyanurate (PIR) insulation
Form | Board. |
Thermal conductivity | 0.027 W/m·K.Guidance for specification option: 0.027 W/m·K (insulant thickness <80 mm). 0.025 W/m·K.Guidance for specification option: 0.025 W/m·K (insulant thickness 80–119 mm). 0.024 W/m·K.Guidance for specification option: 0.024 W/m·K (insulant thickness ≥120 mm). |
Finish | Faced. |
Fire performance | Manufacturer guidance
|
Insulation thickness | 50–150 mm. |
Protection | Faced on both sides with coated glass tissue. |
Board size | 1200 x 1200 mm. |
CompressiveStrength | Typically exceeds 150 kPa at 10% compression. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 7.15 kg CO₂ eq/kg Self declared Manufacturer guidance1 m² of insulation at a thickness that gives an R-value of 2.667 m².K/W (72mm) gives a GWP of 7.15 kg CO2 equivalent in Life cycle stages A1 - A3 (Raw material supply, transport and manufacturing). |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0.84 % |
Literature

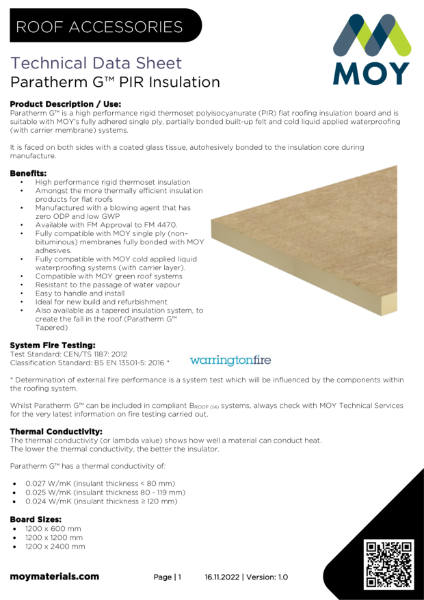

MOY Paratherm G™ PIR Insulation
