MOY Sticker ARD Cap Sheet - Self-adhesive Modified Bitumen Cap Sheet
Verified by manufacturer 2 months ago
Prefabricated self-adhesive cap sheet.
Application
- Must be used with the appropriate MOY SA Primer. Side and end joints should be thermally activated by use of a suitable hot air gun.
- Only suitable for use in temperatures above +5°C.
Description
Sticker ARD is a prefabricated self-adhesive cap sheet obtained by layered coextrusion of special compounds based on selected bitumen modified with elasto-thermoplastic polymers with a non-woven composite polyester reinforcing mat located midway through the membranes thickness.
The lower face of the membrane is bonded with the use of special additives that give the bituminous compound specific and persistent adhesive properties, and is protected by a silicone-coated film to be removed at the time of installation. The upper face is finished with slate granules.
Features and benefits:
- Sticker membranes contain no asbestos, tar or other dangerous substances.
- Self-Adhesive.
- Certification: Safe2Torch and CE marked.
General information
Color | Grey |
Finish | Mineral Guidance for specification option: Slate granule finish. |
Material | Polymer Bitumen Thermoplastic polyolefin (TPO) Polyester |
Shape | Other |
Length | 8000 mm |
Width | 1000 mm |
Warranty description | Manufacturer guidanceFor the duration of the MOY Warranty. |
Uniclass | |
CAWS | J31/353 Waterproof coating J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/400 Built-up reinforced bitumen waterproof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J31/47 Waterproof coating |
Specification data - Reinforced bitumen roofing sheets
Standard | To BS EN 13707. |
Material | |
Carrier material | Polyester. |
Bitumen modification | Elasto-thermoplastic polymers. |
Weight (minimum) | 4 kg/m².Guidance for specification option: (±10%). Manufacturer guidanceTo EN 1849-1. |
Surface finish | |
Top | Slate granules. |
Underside | Silicone-coated film. |
Third-party certification | CE certified. |
Roll size | To EN 1848-1, ≥8000 x 1000 mm (-1%). |
Watertightness | To EN 1928-B, ≥60 kPa. |
Cold flex temperature | To EN 1109, ≤-25°C. Manufacturer guidanceCold flexibility. |
FlowResistanceRange | To EN 1110, ≥140°C. Manufacturer guidanceFlow resistance at elevated temperature. |
Elongation (to EN 12311‐1) | 45% (longitudinal); 45% (transverse). Guidance for specification option: (±15 and ±2 for glass tissue reinforcement). |
Tensile strength (to BS EN 12311-1) | 500 N/5 cm (longitudinal); 400 N/5 cm (transverse). Guidance for specification option: (±20%). |
Dimensional stability | To EN 1107-1, ≤0.2%. |
Tear resistance (BS EN12310-1) | 150 N (longitudinal); 150 N (transverse). Guidance for specification option: (±30%). |
Fire reaction (EN 13501-1) | Euroclass F. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Polymer Bitumen Thermoplastic polyolefin (TPO) Polyester |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceBiogenic Carbon Content: In Product: 0 kg C/m2 In Packaging: 0.04 - 0.05 kg C/m2 |
Recyclability | Due to the thermoplastic properties of their principle components (bitumen, polyester reinforcements, polymers, fusible plastic film), bitumen waterproofing sheets can be converted into mass bitumen products like road asphalt – significantly reducing the demand for virgin bitumen. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 3 % |

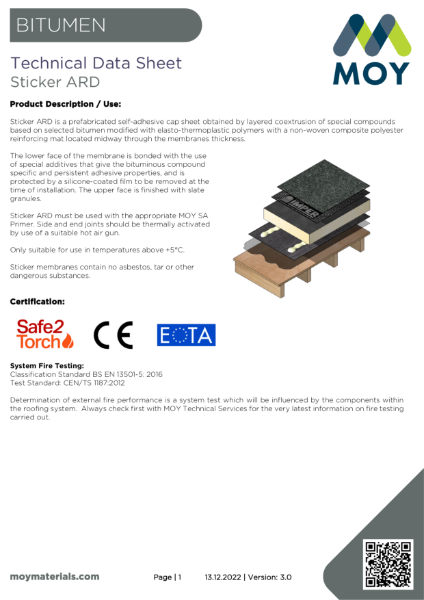

Literature
MOY Sticker ARD Cap Sheet
