MOY Vapobar 1 (3 mm) - Bitumen AVCL
Verified by manufacturer 2 months ago
BBA Agrément Certificate
Certificate type
Air and vapour control layer (AVCL).
Application

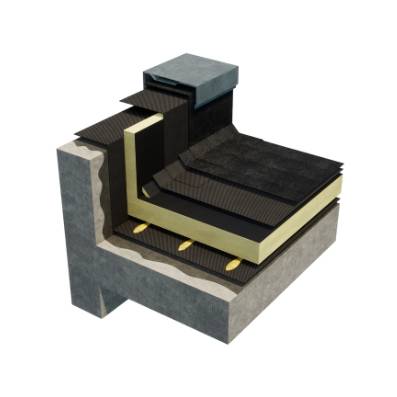

- Designed specifically for use as a vapour control layer in insulated warm roof systems.
- Suitable for use in buildings with high humidity conditions below.
Description
Vapobar 1 (3 mm) is an air and vapour control layer (AVCL) obtained by co-extrusion of a special steam-impermeable bitumen-polymer compound and of a reinforcement consisting of a sheet of pure aluminium and of a glass sheet. The lower face is coated with Termotene® fusible film which aids unrolling and facilitates torch bonding to various substrates. The upper face finish is finished with a sandblasting treatment.
Features and benefits:
- Suitable for use in buildings with high humidity conditions below, due to the aluminium foil lining within the membrane.
- Contain no asbestos, tar or other dangerous substances.
- Must be used with the appropriate MOY Bitumen Primer.
- Side and end joints should be appropriately lapped and torch bonded.
- Certification: BBA certified, NSAI and CE marked.
General information
Color | Black |
Finish | Sandblasted |
Material | Bitumen Polymer Aluminium Glass |
Shape | Other |
Length | 10000 mm |
Width | 1000 mm |
Height | 3 mm |
Warranty description | Manufacturer guidanceFor the duration of the MOY System Warranty. |
Uniclass | |
CAWS | J41/395 Air and vapour control layer J31/120 Warm deck roof coating J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/400 Built-up reinforced bitumen waterproof covering J31/10 Warm deck roof coating J41/10 Reinforced bitumen membrane warm deck roof covering |
Specification data - Reinforced bitumen roofing sheets
Standard | To BS EN 13707. |
Performance characteristics | External fire performance to CEN/TS 1187:2012, Class BROOF (t4).Guidance for specification option: Consult manufacturer for details. |
Material | |
Carrier material | Pure aluminium and glass sheet. |
Bitumen modification | Polymeric. |
Thickness (minimum) | 3 mm.Guidance for specification option: (±5%). Manufacturer guidanceTo EN 1849-1. |
Weight (minimum) | Manufacturer guidanceConsult manufacturer for details. |
Surface finish | |
Top | Sanded. |
Underside | Termotene® fusible film. |
Colour | Black. |
Third-party certification | European Organisation for Technical Assessment (EOTA) approved. |
Roll size | To EN 1848-1, ≥10000 x 1000 mm (-1%). |
Watertightness | To EN 1928-B, ≥60 kPa. |
Cold flex temperature | To EN 1109, ≤-10°C. Manufacturer guidanceCold flexibility. |
FlowResistanceRange | To EN 1110, ≥120°C. Manufacturer guidanceFlow resistance at elevated temperature. |
Elongation (to EN 12311‐1) | 2% (longitudinal); 2% (transverse). Guidance for specification option: (±15). |
Tensile strength (to BS EN 12311-1) | 420 N/5 cm (longitudinal); 315 N/5 cm (transverse). Guidance for specification option: (±20%). |
Puncture resistance | To EN 12730, ≥10 kg. Manufacturer guidanceStatic puncture. |
Moisture resistance | To EN 1931, 275500 μ. |
Vapour resistance | To EN 1931, 3663 MN.s/g. |
Water vapour diffusion resistance – Sd value | To EN 1931, 733 m. Manufacturer guidanceWater vapour diffusion – equivalent air layer thickness (Sd). |
Fire reaction (EN 13501-1) | Euroclass F. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Bitumen Polymer Aluminium Glass |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceBiogenic Carbon Content: In Product: 0 kg C/m2 In Packaging: 0.04 - 0.05 kg C/m2 |
Recyclability | Due to the thermoplastic properties of their principle components (bitumen, polyester reinforcements, polymers, fusible plastic film), bitumen waterproofing sheets can be converted into mass bitumen products like road asphalt – significantly reducing the demand for virgin bitumen. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 3 % |
Third party certifications
Literature

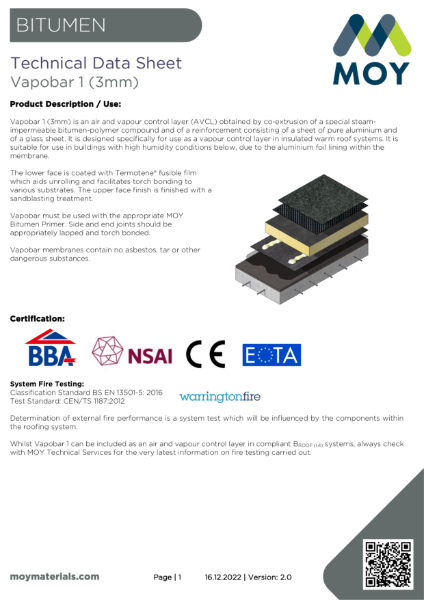

MOY Vapobar 1 (3 mm)
