MSA Latchways ManSafe Constant Force® Fall Arrest / Restraint System

Verified by manufacturer 6 months ago

MSA Safety (Latchways)

Latchways cable based fall arrest / restraint system is an engineered product designed to protect operatives when working at height. The system has been developed with major roofing manufacturers.

Jump to:
BOS
+44 (0)1380 732700 Website

Application

Latchways Cable Based Engineered Fall Protection System; used in the Construction Industry to allow operatives to work safely at height. All in conjunction with the latest Global standards.

The system has been developed alongside major Roofing manufacturers to ensure that warranties and guarantees are not affected.

Description

Guided type fall arrest system using a cable attached to Constant Force® anchor posts. Provides individual protection, requiring direct action by each user to ensure they are protected. Must be used with personal protective equipment (PPE), e.g. full body harness to BS EN 361, energy absorber to BS EN 355, and lanyard (of correct length) to BS EN 354. PPE procurement is normally the responsibility of the building owner/ user.


The level of user competency required to safely use different categories of system varies:

  • Perimeter system: Fall restraint; no PPE adjustment necessary; basic user training required.
  • Perimeter system with fall hazards in addition to roof edge (weak rooflights, vents, etc): Fall arrest; no PPE adjustment necessary; basic user training required.
  • Ridge system: Fall arrest; PPE adjustment necessary; advanced user training required. Not advised for roof pitch greater than 25°.

Note that perimeter systems generally do not give blanket coverage of a roof. If this is required, and a ridge system is deemed impractical/ unsuitable, then a series of interconnected systems must be installed, covering the full width of the roof.


Components are designed for compatibility with most roofing systems; Latchways technical literature gives specification details for the following:

Standing seam roofing systems:

  • Kalzip Limited: Kalzip®300, Kalzip®305, Kalzip®333, Kalzip®400, Kalzip®500.
  • Euroclad: Euroseam 300, Euroseam 400, Euroseam 500 (Aluminium).
  • Keybemo: Bemo 65/305, Bemo 65/400, Bemo 65/500 (Aluminium).
  • Plannja: PA305, PA400 (Aluminium).
  • Alumasc: AS 300/65 (Aluminium); AS 400/65 (Aluminium).
  • Rigidal: Ziplok 300, Ziplok 400, Ziplok 500 (Aluminium) and Thermozip (Aluminium).

Composite roofing systems:

  • Composite Panels: CPL Super 4.
  • Corus Cladding & Decking UK: D85/1000, D105/1000, D125/1000.
  • Corus European Profiles: Trisomet.
  • Haironville TAC: Ondatherm 201.
  • Ward Building Components: IP1000, DR1000.

Built up on site roofing systems:

  • CA Profiles: Twin-Therm™ (Steel).
  • Corus Cladding & Decking: Proclad CC32/1000, Proclad CC1000, Proclad CC1200.
  • Corus European Profiles: EP 1000/19, EP 1000/32, EP 1000/40.
  • Corus Precision Metal Forming: Long Rib 1000R, R32/1000, R40, R60.
  • Euroclad: 1000/32 F.
  • Haironville TAC: HC31, R34, R39, R79 (Steel).
  • Plannja: PS20B.

Secret fix roofing systems:

  • Euroclad: SF500 Secret Fix (Steel).

Polymeric single ply membrane roofing systems:

  • Protan (UK): Protan SE (Standard Overlap and Secret Fix), Protan G Adhered.
  • Sarnafil: Sarnafil G/S Membranes.
  • Sika: Sikaplan VG, Trocal S.
  • Ward Building Components: Ward Topdek.

Bituminous membrane roofing systems:

  • Contact Latchways Technical Department for information.

Latchways® systems can be retrofitted to existing buildings.


Product options:

Finish to Constant Force® posts:

Polyester powder coating can be matched to roofing panels, if required.

D ring and hanger:

Attaches to intermediate CF post to form intermediate cable support.

90° Corner bracket:

One piece bracket; attaches to intermediate CF post to provide change of direction.

Variable bracket:

Attaches to intermediate CF post to provide angle change of between 0° and 80° in horizontal or vertical plane.

ClimbLatch™ attachment:

Required for inclined sections if roof pitch is greater than 15°.


Features and benefits:

  • Anchorage device: 7 x 7 stainless steel cable, grade 1.4401 (316S), to BS MA 29.
  • Turnbuckle, swage and clevis assemblies: Provide methods of terminating cable at ends of system. Turnbuckle incorporates a tension indicator, which spins freely when the system is correctly tensioned.
  • Transfastener: Connects system user to anchorage cable. Passes through intermediate cable supports without need to detach and re-attach, allowing smooth, hands-free operation. Made from stainless steel, grades 1.4401 (316S) and 17/4 PH.

General information

Color

Grey

Silver

Black

Beige

Other

Manufacturer guidance

To match roofing panels.

Finish

Powder-coated

Material

Stainless steel

Aluminium

Shape

Rectangle

Crescent

Other

Warranty description

25 year

Uniclass

Ss_80_30_25_35 Guided type fall arrest systemsPrimary

CAWS

N25/10 Personal fall protection equipment

N25/210 Personal fall protection equipment

Specification data - Guided type fall arrest systems

System performance

Design of anchor device fixing points

Guidance for specification option:

Extremity or corner post (CFp Type 2) includes an integral 316 (1.4401) grade stainless steel energy absorbing coil and roller mechanism. This enables the coil and body assembly to deploy in a predictable manner, in any direction and at a controlled rate.

Each intermediate post (INT) includes an integral 316 (1.4401) grade stainless steel mechanism that enables the post body assembly to deploy in a predictable manner and in any direction.

Pre-installation survey

Survey to be carried out by a Registered MSA Latchways Installer.

Structural anchors

Constant Force® post.

Guidance for specification option:

  • Integral, stainless steel, energy absorbing coil ensures that, in the event of a fall, load transferred to roof cladding does not exceed 10 kN.
  • Dome: Marine grade stainless steel; Collar and base plates: Zinc coated carbon steel.
  • Each post carries a unique serial number to ensure traceability.

Anchor line

Ø 8 mm 7x7 316L (1.4404) grade stainless steel wire rope with a 38 kN minimum breaking load.

Ancillary equipment

MSA Latchways Transfastener (Standard/Removable).

System arrangement

Perimeter.

Perimeter with fall hazards.

Ridge.

End set

Two.

Manufacturer guidance

Refer to MSA Latchways Layout, MSA Latchways Registered Installer's Layout or architect/ specifier's drawing.

Corner set (90°)

None.

One.

Two.

Three.

Four.

Manufacturer guidance

Refer to MSA Latchways Layout, MSA Latchways Registered Installer's Layout or architect/ specifier's drawing.

Variable set

None.

Guidance for specification option:

Refer to MSA Latchways Layout, MSA Latchways Registered Installer's Layout or architect/ specifier's drawing.

Cable length

-

Manufacturer guidance

Insert requirements.

Refer to MSA Latchways Layout, MSA Latchways Registered Installer's Layout or architect/ specifier's drawing.

Transfastener (one per user)

One.

Two.

Three.

Manufacturer guidance

Maximum 4-6 users permitted onto the system at any one time.

System attachment

To suit bituminous membrane roofing system.

To suit built up on site roofing system.

To suit composite roofing system.

To suit polymeric single ply membrane roofing system.

To suit secret fix roofing system.

Show more

CF post finish

Polyester powder coating.

Guidance for specification option:

Can be matched to roofing panels, if required.


The combination of the coating applied to the post elements will be compliant to EN 12206-1:2004 and have been tested to the following methods with the specified results:

  1. 1000 hours of neutral salt spray according to ASTM D1186, method B without any signs of corrosion, coating separation nor reduction in sheen.
  2. 1000 hours of acetic acid salt spray according to ISO 2360:2003 without any signs of corrosion in any finishes.

Colour

To match roofing panels.

Grey.

Black.

Silver.

Manufacturer guidance

Subject to waterproofing membrane or metal roof profile.

Other requirements

None.

ClimbLatch attachment.

Guidance for specification option:

Required for inclined sections if roof pitch is greater than 15°.

Signage.

Installation

System installation to be carried out by a Registered MSA Latchways Installer.

Usage

Operatives/users to be attached to the system with a energy absorbing lanyard and a MSA Latchways Transfastener.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Stainless steel

Aluminium

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Literature

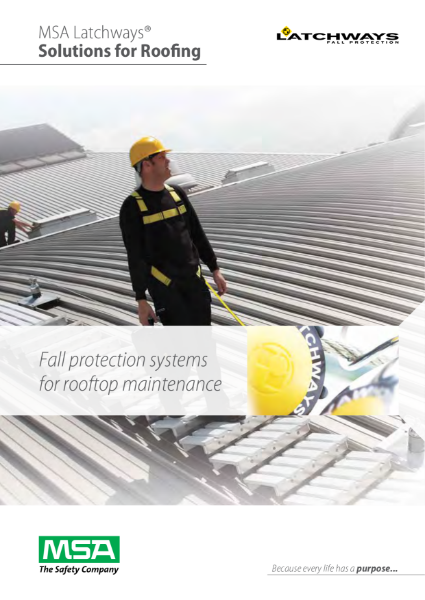

Fall Protection for Rooftop Maintenance

Fall Protection for Rooftop Maintenance

Fit for Purpose: Constant Force Post - Guided Type Fall Arrest System

Fit for Purpose: Constant Force Post - Guided Type Fall Arrest System

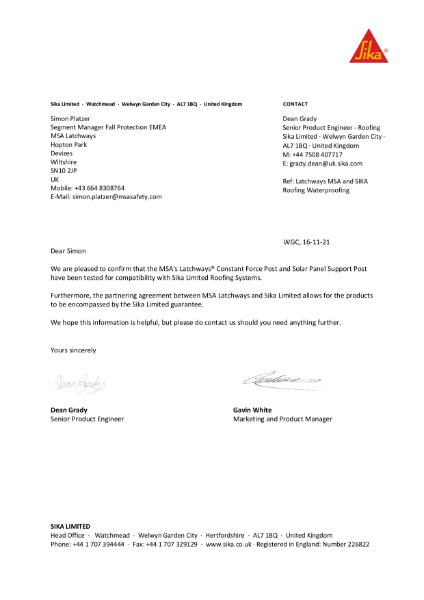

Sika Manufacturer Approval Letter

Sika Manufacturer Approval Letter

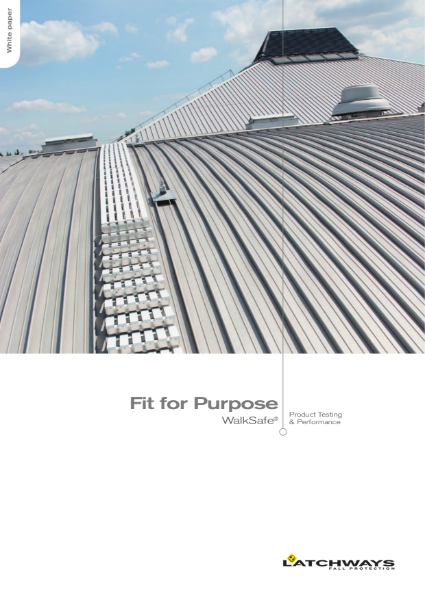

Fit for Purpose: WalkSafe

Fit for Purpose: WalkSafe

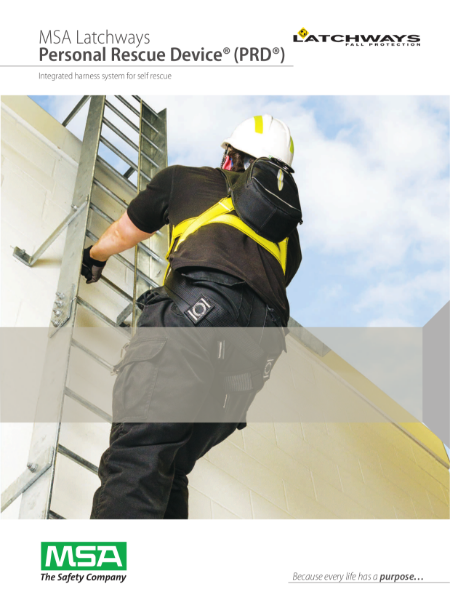

MSA Latchways Personal Rescue Device (PRD)

MSA Latchways Personal Rescue Device (PRD)

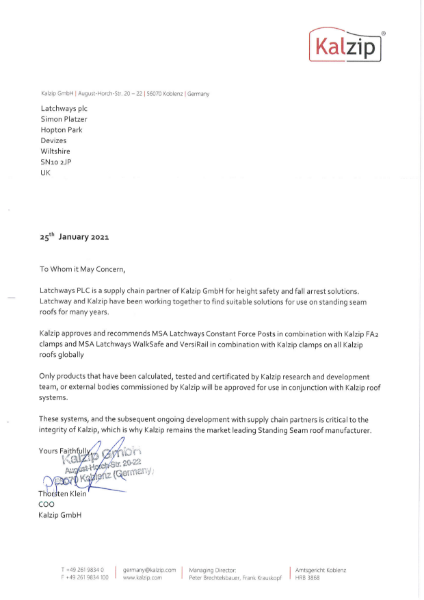

Kalzip Approval Letter

Kalzip Approval Letter

Bauder Approval Letter

Bauder Approval Letter

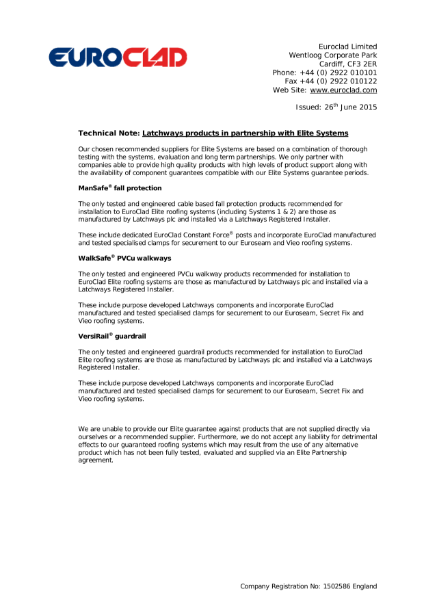

Euroclad Approval Letter

Euroclad Approval Letter

CA Roofing Approval Letter

CA Roofing Approval Letter

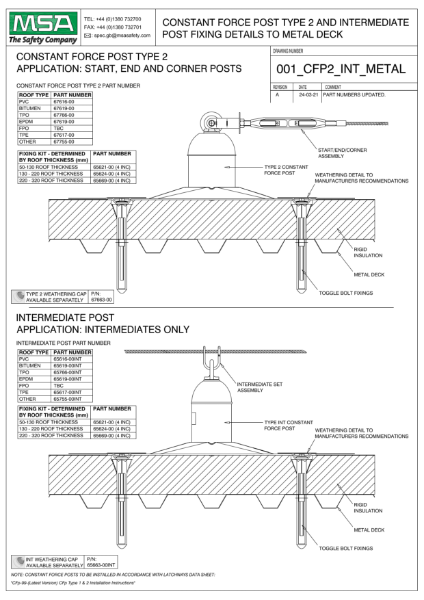

Constant Force Post Fixing Detail (Membrane) - Metal Deck

Constant Force Post Fixing Detail (Membrane) - Metal Deck

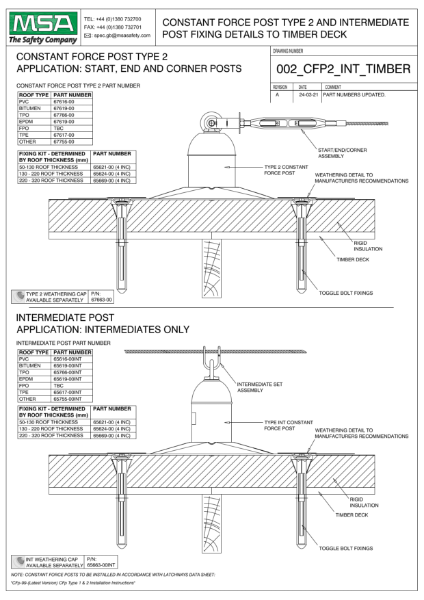

Constant Force Post Fixing Detail (Membrane) - Timber Deck

Constant Force Post Fixing Detail (Membrane) - Timber Deck

Constant Force Post Fixing Detail (Membrane) - Concrete Deck

Constant Force Post Fixing Detail (Membrane) - Concrete Deck

Constant Force Post Fixing Detail (Built Up On Site) BUOS

Constant Force Post Fixing Detail (Built Up On Site) BUOS

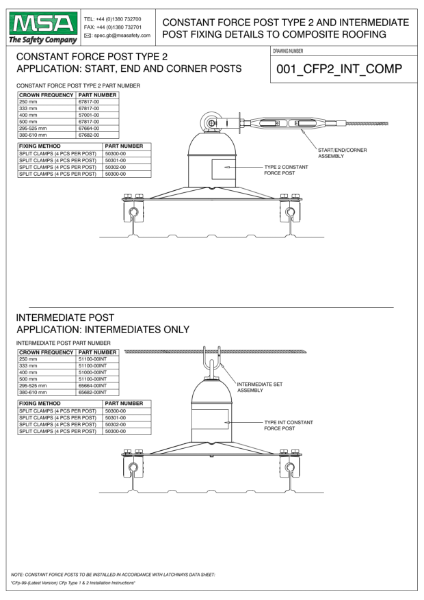

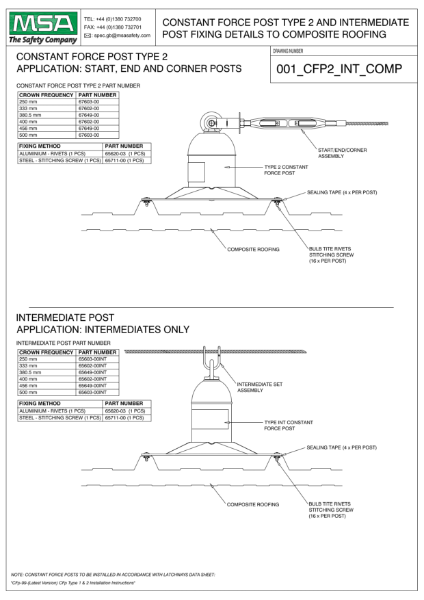

Constant Force Post Fixing Detail (Composite Metal Roof)

Constant Force Post Fixing Detail (Composite Metal Roof)

Constant Force Post Fixing Detail (Folding Seam)

Constant Force Post Fixing Detail (Folding Seam)

Constant Force Post Fixing Detail (Standing Seam) Bulb Type

Constant Force Post Fixing Detail (Standing Seam) Bulb Type

Constant Force Post Full Detailed Performance Specification

Constant Force Post Full Detailed Performance Specification

N25 Constant Force Post for Metal Composite/BUOS Roofs

N25 Constant Force Post for Metal Composite/BUOS Roofs

N25 Constant Force Post for Standing Seam Roofs

N25 Constant Force Post for Standing Seam Roofs

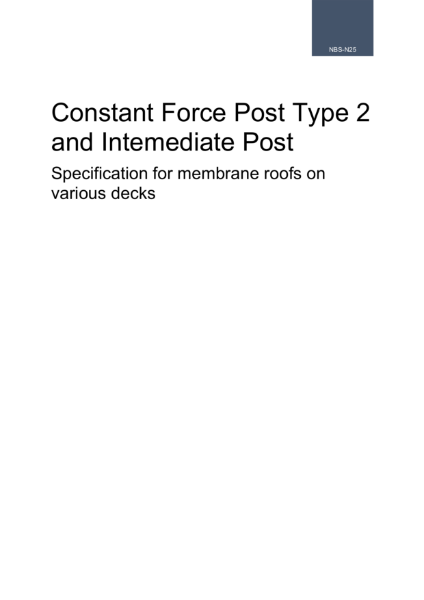

N25 Constant Force Post for Membrane Roofs

N25 Constant Force Post for Membrane Roofs

Case studies

Arup: Access Strategy for Building Rooftops and Ongoing Maintenance

Arup: Access Strategy for Building Rooftops and Ongoing Maintenance

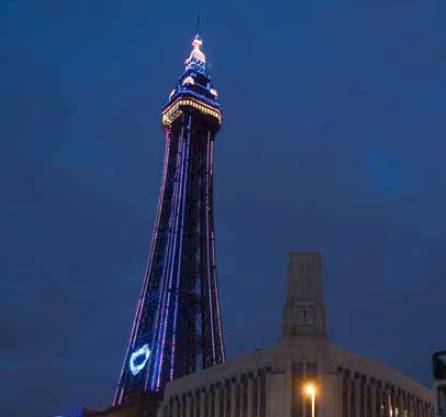

Blackpool Tower: Safety and Access for Maintenance Workers

Blackpool Tower: Safety and Access for Maintenance Workers

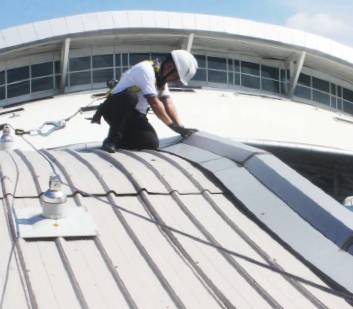

Bali International Airport: Fall Protection Systems for Roof Maintenance

Bali International Airport: Fall Protection Systems for Roof Maintenance

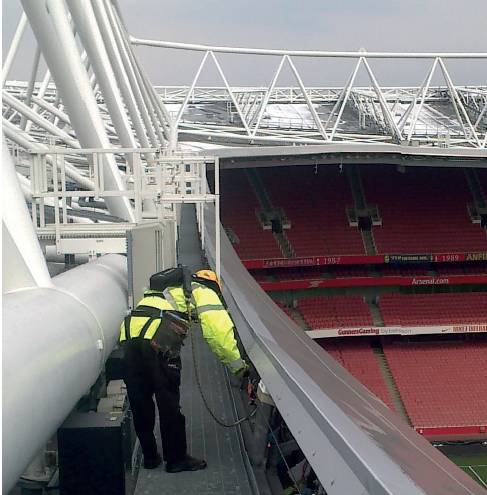

Emirates Stadium: Access Required to Stadium Infrastructure

Emirates Stadium: Access Required to Stadium Infrastructure

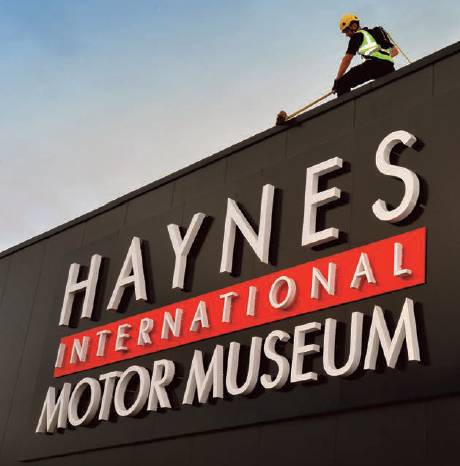

Haynes International Motor Museum: Fall Protection Solution

Haynes International Motor Museum: Fall Protection Solution

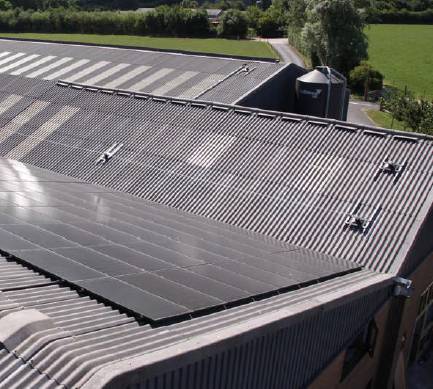

Holt Farm: Safe Work Access to a New Roof

Holt Farm: Safe Work Access to a New Roof

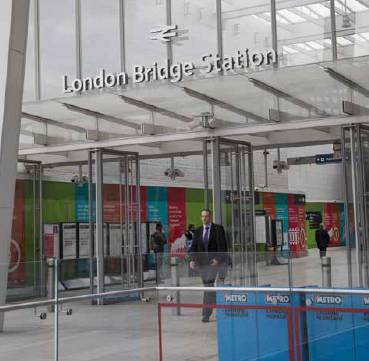

Network Rail: London Bridge Station

Network Rail: London Bridge Station

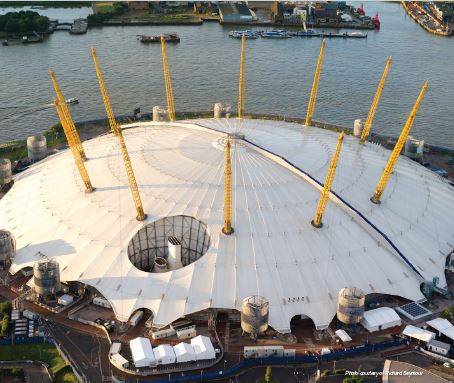

Up at the O2
