Multi-Link-Panel - ML16NF - Rooflight panel system

Verified by manufacturer 7 months ago

Twinfix Limited

A lightweight, modular, interlocking roof glazing system, non-fragile to ACR(M)001:2019.

Jump to:
+44 (0)1925 811311 Website

Application

Suitable for the following applications:

  • Retail;
  • Education;
  • Industrial;
  • Commercial;
  • Health;
  • Rail.

Description

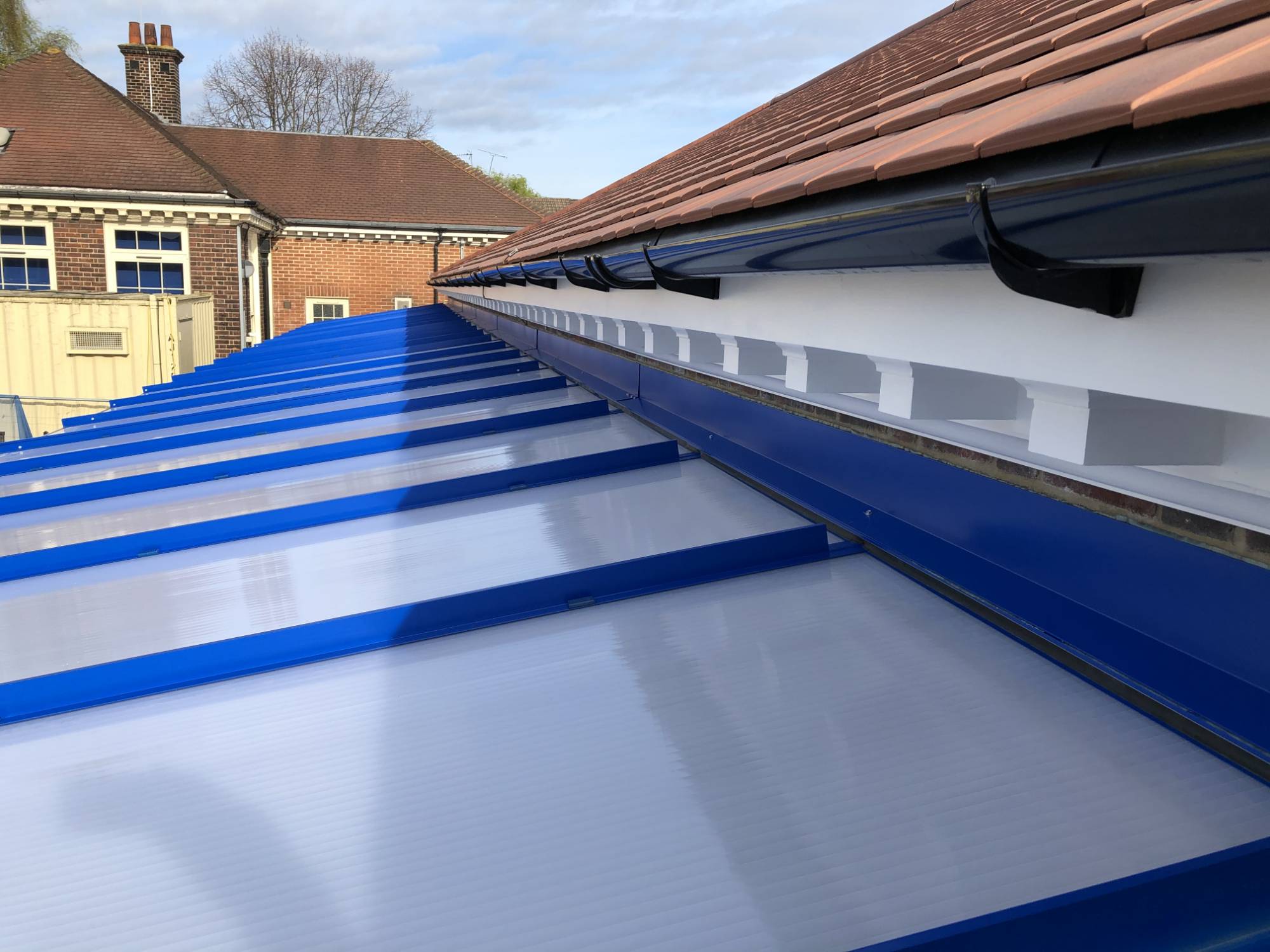

Multi-Link-Panels are a light weight, modular, inter locking roof glazing system and are non-fragile to ACR(M)001:2019.


Features and benefits:

  • Panels are glazed with 16 mm polycarbonate, light weight, impact and weather resistant, and easy to install.
  • Maximum unsupported span: 3200 mm down the slope, 990 mm panel width (assumed loadings; wind - 0.9 kN/m²; snow - 0.5 kN/m²).
  • Maximum unsupported overhang: 150 mm.
  • Total energy transmission: Clear 70%; Opal 62%.

General information

Color

Clear

Finish

Powder-coated

Material

Polycarbonate

Aluminium

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

H10/10 Patent glazing

H10/115 Patent glazing

L10/45 Rooflights

L10/460 Rooflights

Specification data - Framed rooflights

Form

Rectangular.

Square.

Size

-

Manufacturer guidance

Bespoke sizes are available.

Product performance

-

Fire performance

-

Reaction to fire

To BS EN 13501-1, B-s1, d0.

Frame

-

Material

Extruded aluminium bars to BS 1474.

Finish

-

Coating

Polyester powder coating to BS 6496.

Colour

Black.

Guidance for specification option:

Insert requirement, consult Twinfix.

White.

Blue.

Red.

Yellow.

Green.

Grey.

Glazing or infill

-

Type

16 mm polycarbonate.

Guidance for specification option:

Bronze, Clear or Opal.

Construction

Multiwall.

Colour

Clear.

Opal.

Coating

UV protected.

Operation

-

Type

Fixed.

Accessories

None.

Aluminium side trims.

Eaves fillers.

Head flashing.

Mechanical end plates.

Ridge flashing.

PVC-U underclad tray.

Width

990 mm.

FragilityRating

Panels tested in accordance with ACR[M]001:2019 and Classified as 'Class B non-fragile assembly'.

Fixings

Stainless steel self-tapping screws and bolts.

Pitch

10°.

UV protective layer

Both sides of sheet.

Sound reduction index

18 dB.

Light transmission

74%.

Guidance for specification option:

Clear.

62%.

Guidance for specification option:

Opal.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
