Multi-purpose Trims – Aluminium
Verified by manufacturer 4 days ago
ETR299
ETR299
Decorative transition to join different floor finishes of the same height.
Description
A range of multi-purpose trims designed to provide a neat join between different floor coverings and to protect the edges of the floor coverings.

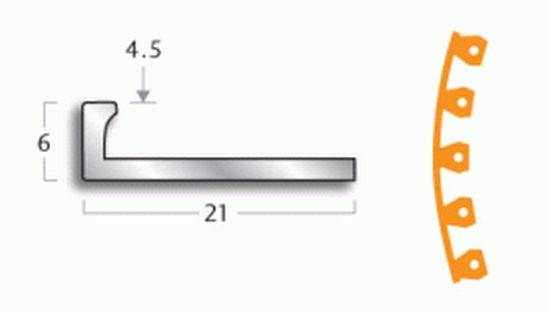

Three base options available: solid base for straights; pre-punched base with tabs and fixing holes for on-site curving; perforated base with fixing holes for straights and use with ceramics.
General information
Color | Silver |
Material | Aluminium |
Length | 2500 mm Guidance for specification option: Available for all profiles. 2715 mm Guidance for specification option: Available for ETR301, ETR302, ETR303, ETR304 and ETR307 profiles in F0 and UF0 variants only. |
Height | 3.5 mm 4 mm 4.5 mm 6 mm 7.5 mm |
Uniclass | |
CAWS | M50/70 Edgings and cover strips M50/740 Edgings and cover strips M51/510 Edgings and cover strips |
Specification data - One-part floor transition strips
Material | Aluminium. |
Colour | Natural. |
Size | 2500 mm.Guidance for specification option: Available for all profiles. 2715 mm.Guidance for specification option: Available for ETR301, ETR302, ETR303, ETR304 and ETR307 profiles in F0 and UF0 variants only. |
Base | F0. Guidance for specification option: Pre-punched with tabs and fixing holes for onsite curving. UF0. Guidance for specification option: Solid base for straights GF0. Guidance for specification option: Perforated with fixing holes for straights and use with ceramics. |
Fixing | Bedded into adhesive at the same time as tiling: consult Gradus for further guidance. |
Height | 2 mm gauge, 3.5 mm high. |
Sustainability data
Material | Aluminium |
