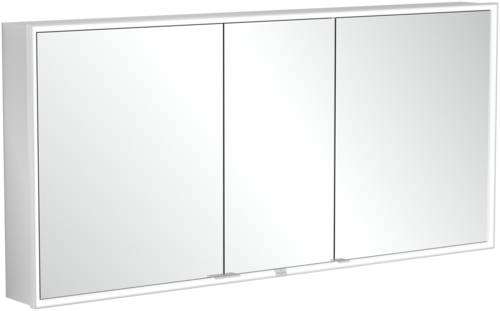

My View Now Built-in Mirror Cabinet A45816
Verified by manufacturer 9 months ago
A built-in mirror cabinet, with lighting.
Application
Suitable for use in bathrooms.
Description
A built-in mirror cabinet, with lighting.
Features and benefits:
- Includes fastening set.
- Equipped with magnifying mirror.
- Magnetic strip.
- Two sockets on the inside.
- Mains-operated power supply.
- LED lights with On/ Off switch.
- Smart-home enabled.
- Three doors.
- Four aluminium shelves, one shelf.
- Soft closing.
General information
Material | Glass Aluminium |
Shape | Rectangle |
Width | 1600 mm |
Height | 750 mm |
Uniclass | Pr_25_71_53_82 Small mirrors |
CAWS | N13/63 Glass mirrors N13/438 Mirrors |
Specification data - Bathroom cabinets
Form | Wall-mounted. |
Carcass | |
Material | Aluminium.Guidance for specification option: Surface body E6 EV1. |
Size (nominal) | 1600 x 750 x 168 mm.Manufacturer guidanceWidth x height x depth. |
Shelves | |
Material | Aluminium. |
Doors | |
Hinges | Soft closing. |
LED lighting | 1 x LED (44.64 W). Guidance for specification option:
|
Colour | 2700 K (warm white) to 6500 K (daylight white). |
Control | On/ Off switch and smarthome enabled. |
Weight | 27.6 kg. |
Power supply | Mains-operated. |
Ingress protection (IP) rating | 44. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 SketchUp | - | 1 |
 Revit | - | 1 |
 IFC | - | 1 |
 3Ds Max | - | 1 |
 ARCHICAD | - | 1 |
 OBJ | - | 1 |
