Verified by manufacturer 7 months ago
New variant

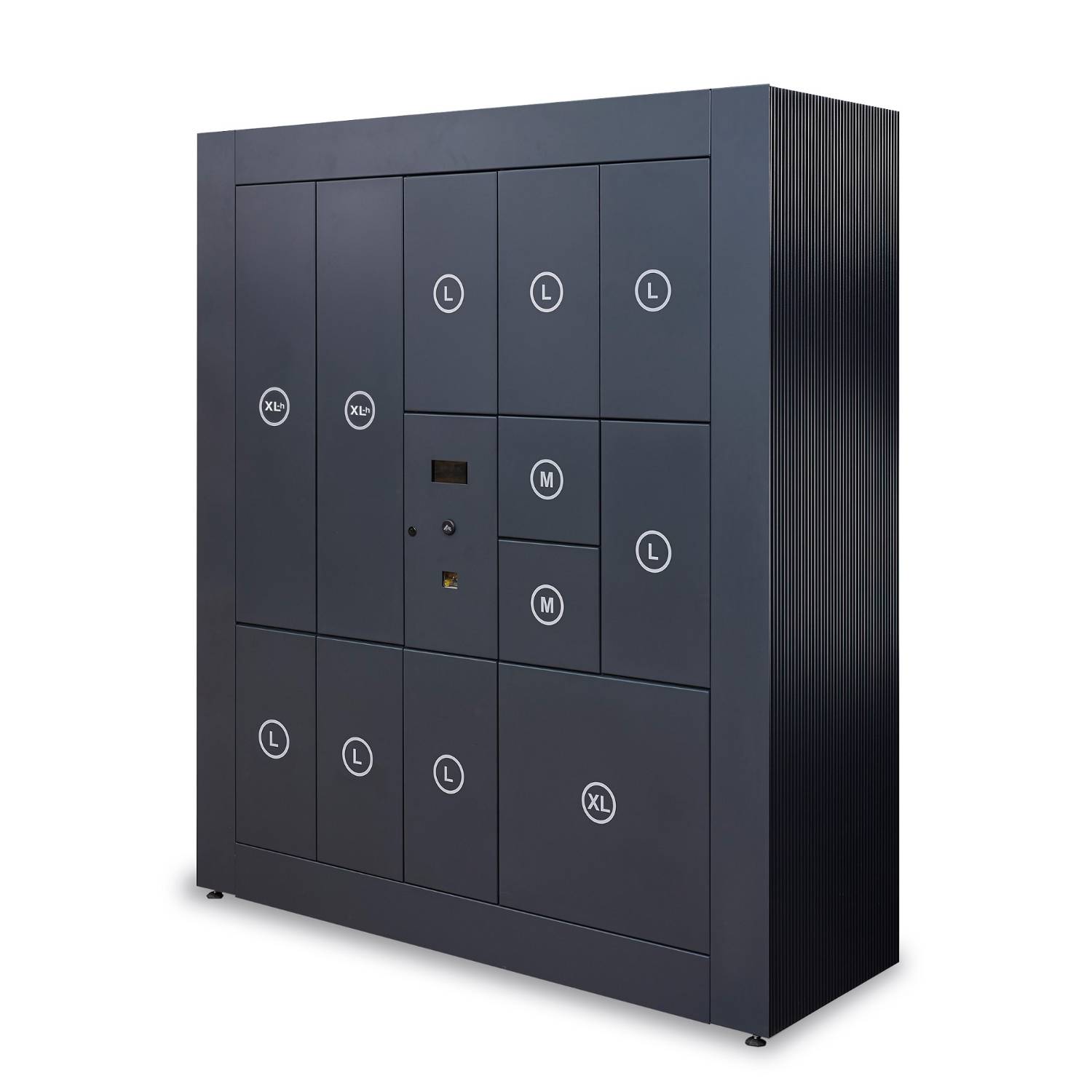

Electronic parcel locker, made to bespoke sizes.
Suitable for:
Electronic parcel locker, made to bespoke sizes. Fitted with a digital system for facilitating collections and deliveries.
Features and benefits:
Control unit:
Screen:
Core system:
Color | Other Manufacturer guidanceAs per manufacturer and includes:
|
Finish | Powder-coated Manufacturer guidanceAs per manufacturer and includes:
|
Material | Aluminium Steel Manufacturer guidanceAs per manufcaturer and includes electro-galvanized steel or aluminium. |
Shape | Rectangle |
Warranty description | Ten year |
Uniclass |
Dimensions | Manufacturer guidanceBespoke unit: Consult manufacturer for options and insert requirements. Box internal dimension: Varies, depending upon indoor or outdoor version and size. |
Material | Electro-galvanized steel/ aluminium.Guidance for specification option: Doors and body manufactured from electro-galvanized steel. Aluminium structure with adjustable stabilizers. External casing. Mounting brackets. Thickness: Body: 0.6 mm (internal models) or 2 mm (external models). Doors: 1.2 mm (internal models) or 2 mm (external models). |
Finish | Powder-coated.Guidance for specification option: Insert colour requirements below. Timber.Guidance for specification option: Consult manufacturer for options and insert requirements. Stainless steel.Guidance for specification option: Consult manufacturer for options and insert requirements. Rimex.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Colour | Powder-coated enamel, RAL.Guidance for specification option: 20 colours available as standard: insert requirements. Consult manufacturer for details of non-standard RAL codes. Powder-coated, RAL - dual colour.Guidance for specification option: 20 colours available as standard: insert requirements. Consult manufacturer for details of non-standard RAL codes. Custom print (doors).Guidance for specification option: Consult manufacture for options and insert requirements. |
Power | Primary: 120-240 V a.c. (60 W). Secondary: 12 V d.c. |
Locking | Lock(s) with electrical rotary latch R4-EM (Southco). Guidance for specification option: Opening by automatic ejection. |
Fixing | Freestanding. Recessed. Wall-mounted. |
Accessories | None. Aluminium surround. Backup battery. Four castor wheels. Mailboxes. Manufacturer guidanceSMS subscription and licence fee options available; consult manufacturer for details. |
Country of material origin | France |
Country of product manufacture | France |
Recyclability | 99% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 99 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 2 | |
- | 2 |
