Natural Slate Rainscreen cladding - CUPACLAD® 201 Vanguard

Verified by manufacturer 2 months ago

Cupa Pizarras Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • BRE Certificate

    BRE Certificate

    Certificate type

  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

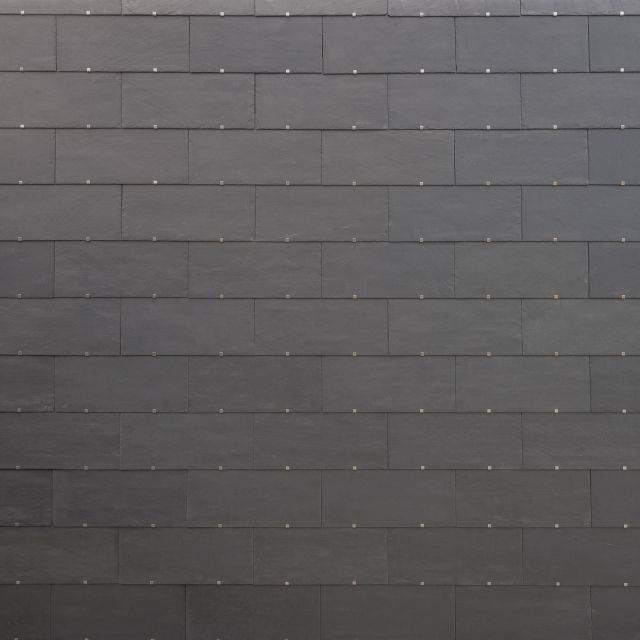

Natural slate rainscreen cladding, with contrasting stainless steel clips.

Jump to:
+44 (0) 20 3318 4455 Website

Application

Rainscreen cladding.

Description

CUPACLAD 201 Vanguard is a BBA-approved ventilated rainscreen cladding system with a natural slate exterior with contrasting stainless steel clips.

Part of the CUPACLAD® 201 series, it combines large, horizontally-fitted slates with partially-visible stainless steel brackets, giving contemporary appeal.

Each slate is held in place by two stainless steel clips that have flanges to absorb natural differences in the thicknesses of the slates, to achieve a levelled cladding surface.


Features and benefits:

  • Invisible fixings.
  • A1 Non-combustible
  • BAA Approved
  • Maintenance Free
  • Quick and Easy to install


General information

Color

Grey

Finish

Textured

Material

Slate

Shape

Rectangle

Length

600 mm

Width

300 mm

Height

7.65 mm

Warranty description

100 year

Uniclass

Pr_25_93_72_56 Natural slatesPrimary

CAWS

H92/120 Rainscreen cladding

Product range

CUPACLAD

Specification data - Natural slates

Slate type

-

Source

Northern Spain.

Colour

Dark grey.

Slate size

-

Length (minimum)

600 mm.

Width (minimum)

300 mm.

Properties

-

Type

Natural.

Nominal thickness and individual thickness variation

7.5 mm.

Rails

201 Vanguard horizontal profile.

Guidance for specification option:

Patented system for installation of slates, manufactured from 6060-T6 aluminium alloy. The horizontal rails must be perfectly level as their positioning will define the final alignment of the slates. Consult manufacturer if a top section is required.

Fixings

Stainless steel clips.

Guidance for specification option:

Standard.

Steel lacquered multicolour.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Coverage

6.4 slates/m².

Weight

≤25 kg/m².

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Recyclability

Slates can be reclaimed and reused

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

British Board of Agrément (BBA) - certficate

BRE Certificate

BRE Certificate

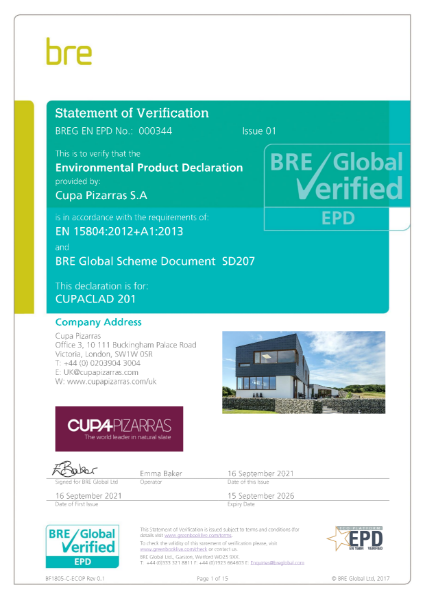

BRE Global Verified (EPD) – CUPACLAD 201

European Technical Approval (ETA)

European Technical Approval (ETA)

ETA 16/0351 european technical assessment CUPACLAD 201

Literature

Slate rainscreen cladding CUPACLAD

Slate rainscreen cladding CUPACLAD

Slate inspiration

Slate inspiration

BBA Certificate - CUPACLAD

BBA Certificate - CUPACLAD

Case studies

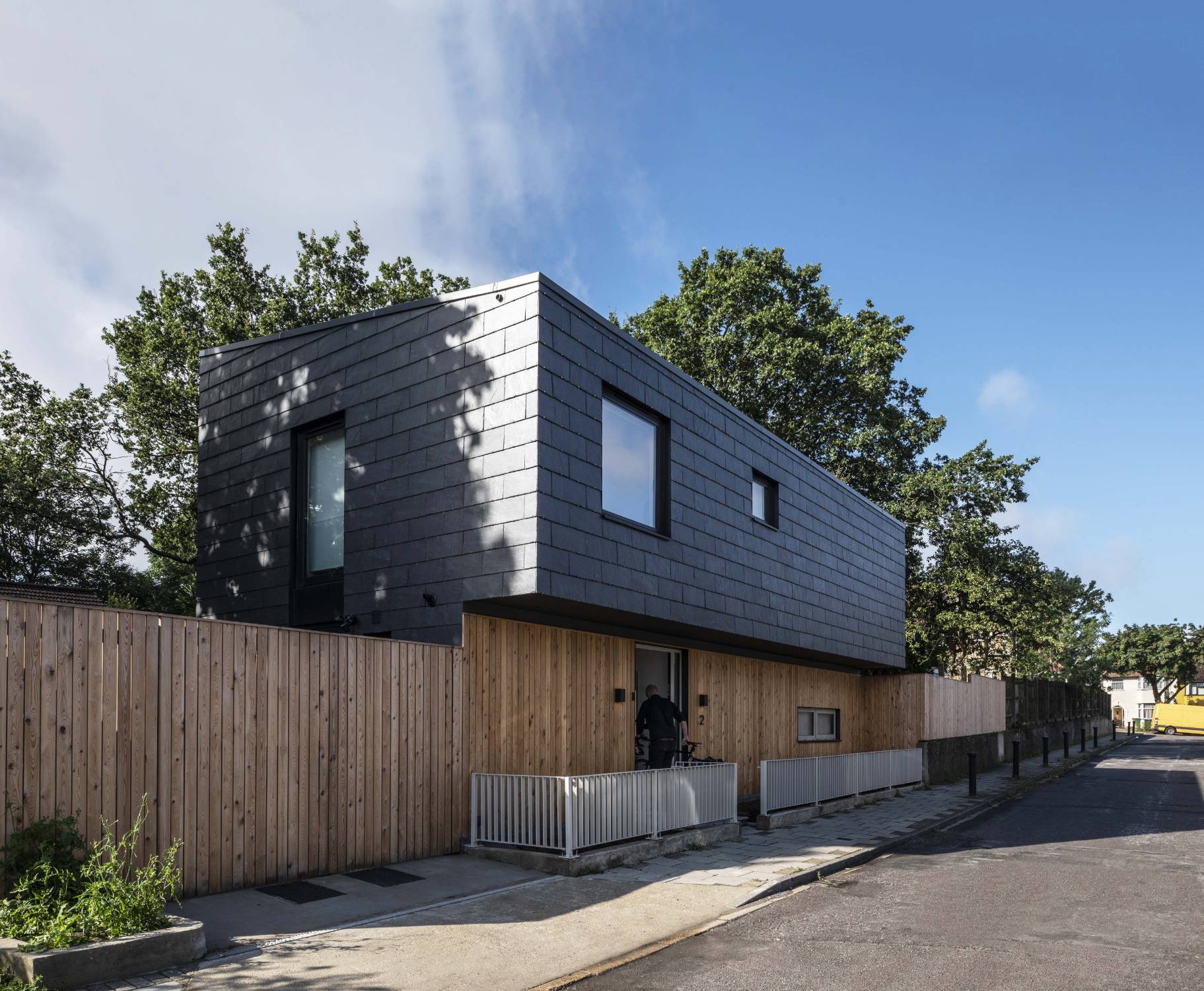

A contemporary rainscreen cladding solution for impressive London home
